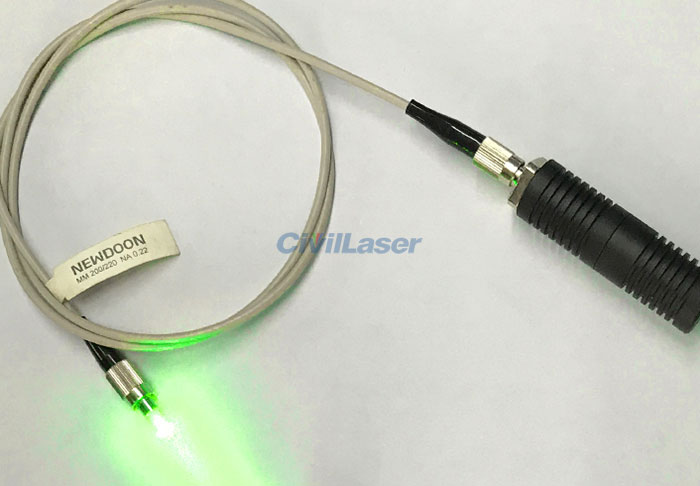

520nm 50mW Verde Láser trenzado Diode Module With Power Supply
[Especificaciones]
nombre del producto: 520nm pigtailed laser
Longitud de onda: 520±10nm
Potencia de salida: <50mW
Output Mode: Multimode
Multimode Coupling Ratio: >90%
Spot Form: Astigmatism
Diámetro del núcleo de fibra: 200μm
Longitud de la fibra: 1m (Customizeable)
Fiber Interface Type: FC/SMA905/LC/SC (Escoger)
Fiber Material: Quartz
Coupling Lens Material: Optical glass
Tensión de funcionamiento: DC 6.9V
Operating Voltage With Power Diver: DC 3-5V
Operating Current: <160mA
Circuit Control Mode: ACC / TTL frequency modulation (Escoger)
Operating Temperature: -20~60℃
Storage Temperature: -40~85℃
Tamaño: Φ20*70mm
