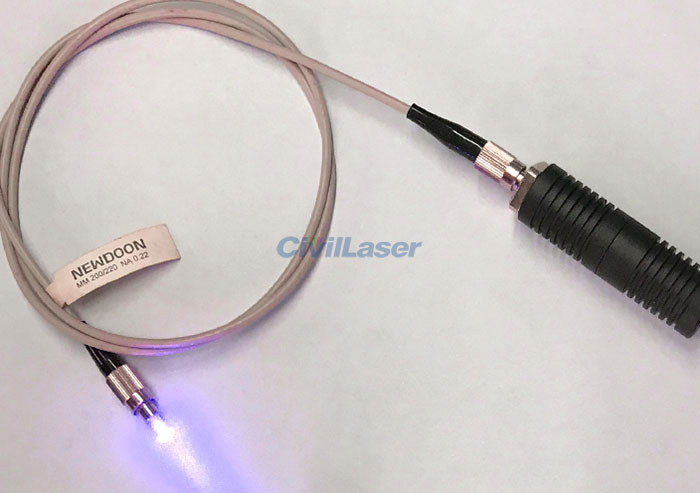

405nm 300mW Azul Láser de fibra acopladaLáser trenzado Diode Module
[Especificaciones]
nombre del producto: 405nm pigtailed laser
Longitud de onda: 405±6nm
Potencia de salida: <300mW
Output Mode: Multimode
Multimode Coupling Ratio: >90%
Spot Form: Astigmatism
Diámetro del núcleo de fibra: 200μm
Longitud de la fibra: 1m (Customizeable)
Fiber Interface Type: FC/SMA905/LC/SC (Escoger)
Fiber Material: Quartz
Coupling Lens Material: Optical glass
Tensión de funcionamiento: DC 4.5V
Operating Voltage With Power Diver: DC 6V
Operating Current: <400mA
Circuit Control Mode: ACC / TTL frequency modulation (Escoger)
Operating Temperature: -0~50℃
Storage Temperature: -40~85℃
Tamaño: Φ20*70mm
Note:Can customize 40mw single mode fiber laser, if you need 40mw single mode fiber laser, please leave a comment when you place the order.
