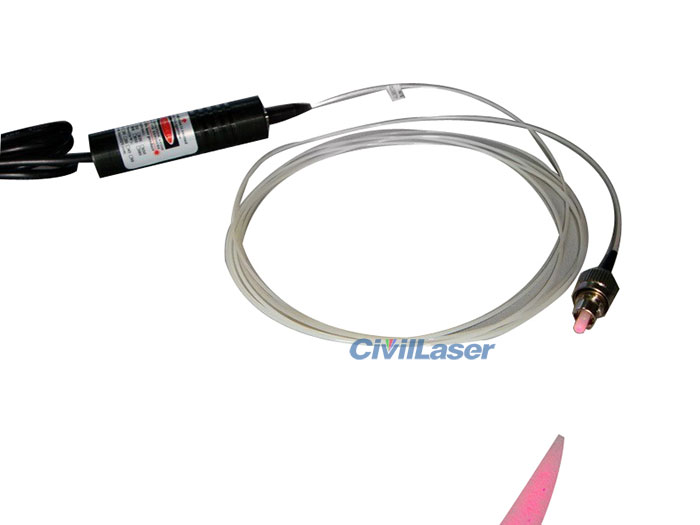

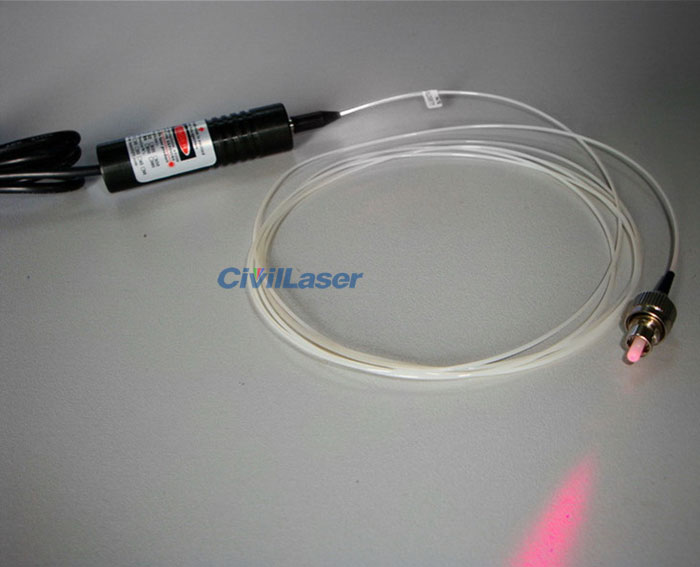

780nm 10mW~30mW Modo singular Láser de fibra acopladaFC Interface IR Fuente láser
Because of its flexible characteristics, the optical fiber can make the laser light emitting end move flexibly and freely, making the use of the laser more convenient.
The laser beam can be shaped so that the mode of the beam is better and the Gauss distribution is distributed.
It is also possible to integrate several laser beams to increase the power of the laser.
[Applications]
1. Industrial Marker
2. Equipment and equipment
3. Teaching experiment light source
4. Laser medical instrument
5. Stage lighting
6. Demonstration with a laser light source.
[Especificaciones]
Longitud de onda: 780nm
Potencia de salida: 10mW / 20mW/30mW (Optional)
Dispersion Angle: 0.6mrad
Optical System: Optically coated glass
Lens: High quality aspherical plastic lens
Diámetro del núcleo de fibra: single mode 4.5um
Pigtail Diameter:e: 125um
Fiber diameter: 0.9mm
Injection Numerical Aperture: 0.12
Spot Tamaño: Min.Φ0.5mm (Adjustable)
Longitud de la fibra: 1m
Fiber Material: Quartz Material
Tensión de funcionamiento: DC 3V or 5V (Optional)
Working Temperature: -10°C~50°C
Storage Temperature: -40°C~80°C
Dimensions: Φ16mm×60mm

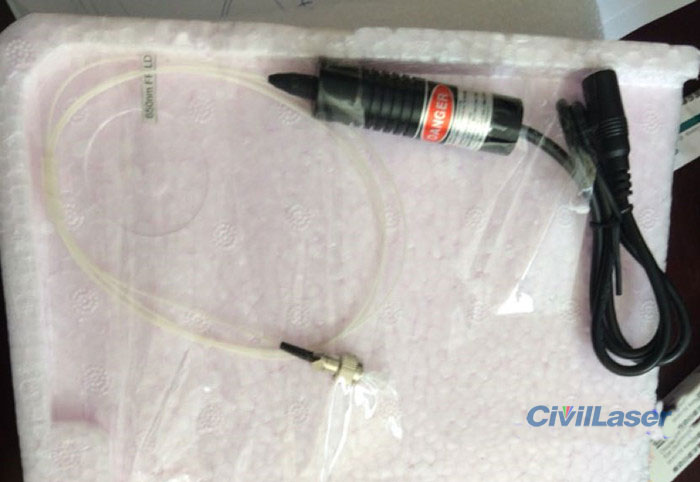

Include: Láser de fibra acoplada + Power supply
