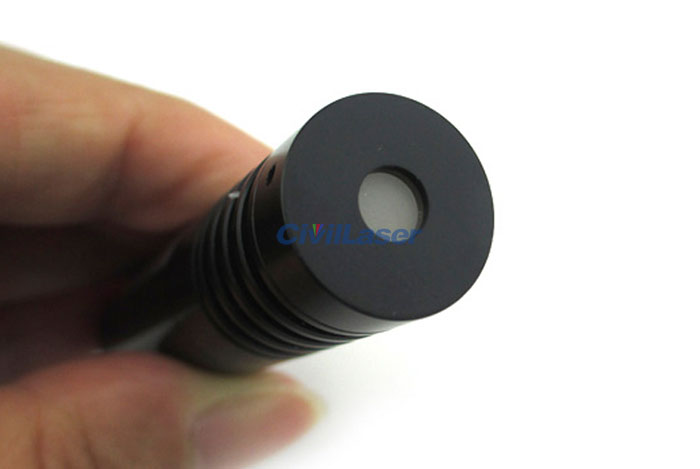

Multi Dot Módulo láser Focus Adjustable 99 Points Line Módulo láser
[Features]
1. Ultra high brightness, universal in indoor and outdoor.
2. The light is clear and bright, soft and not dazzling.
3. Spot size is adjustable.
4. The shell is made of aviation aluminum-plated insulating paint that can not only fully dissipate heat but also resist shock, drop, and static electricity.
5. Imported laser diodes emit light directly with exceptional stability.
6. Intelligent driver board with imported IC, 2.8-5.2V ultra wide range power supply.
7. High temperature resistance, corrosion resistance
8. Wavelength, power, wire length, working distance, spot effect, etc. can be customized.
[Especificaciones]
nombre del producto: Multi Dot Módulo láser
Longitud de onda: 650nm/520nm/450nm (Optional)
Core Power: 100mW
Tensión de funcionamiento: DC 2.8V ~ 5.2V
Operating Current: <500mA
Tamaño: 16*70mm
Optical Lens: Grating (imported from Germany)
Installation Height: 0m - 10m can be used
Lens Angle: 19.1°
Line length at 50cm: 16.85cm
Line length at 100cm: 33.7cm
Line length at 150cm: 50.55cm
[Package Include]
1* Laser module
1* Bracket
1* 1~3V Adjustable Power supply
