633nm 1mw Rojo Dot laser module Special specifications 10×30mm

ESPECIFICACIONES:
Name:  633nm 1mw Rojo Dot laser module 10×30mm
Longitud de onda de salida: 633nm ±5nm
Potencia de salida: <1mw
Class level: Class II
Forma láser: Dot
Range: <50 meters
Material: Copper or aluminum optional
Surface treatment / color: Brass color, black (black oxide)
Tipo de láser: Rojo laser

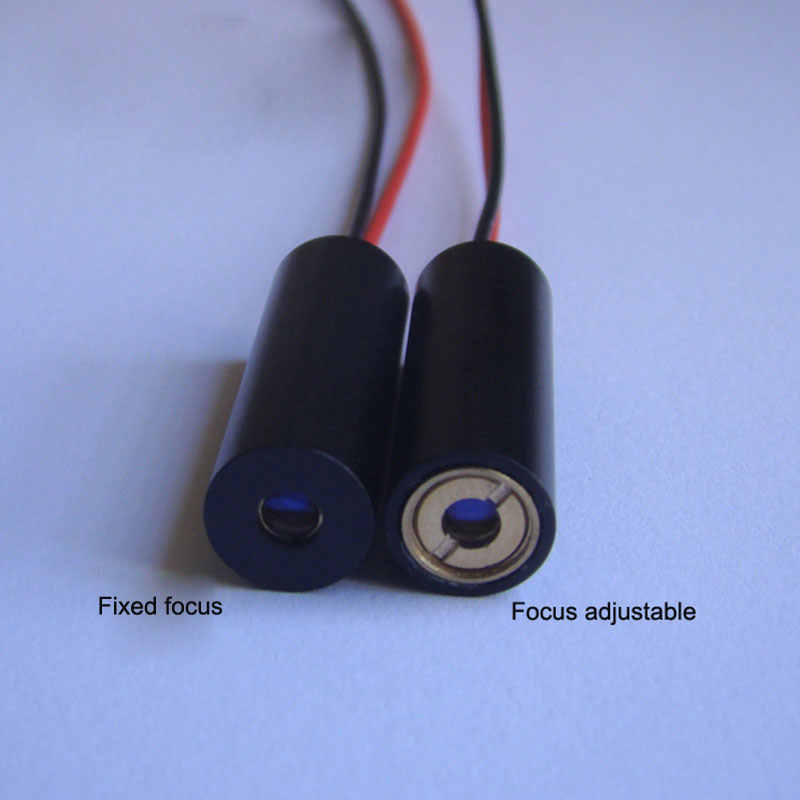

Shape/dimension: Minimum dot size≤ Φ1.0mm, < Φ12mm at 10m distance, focus adjustable
Circuit control: APC
Tamaño: Φ10x30mm
Tensión de funcionamiento:  DC=3V
Operating current: I<50mA
Operating Temperature: -10°C~+40°C
Storage Temperature: -40°C~+80°C
Service life: continuous output, continuous service life of >6000 hours
Tail wire: 26# Rojo and black line, about 150mm long, power supply can be choose
Garantía: 12 Months Factory warranty

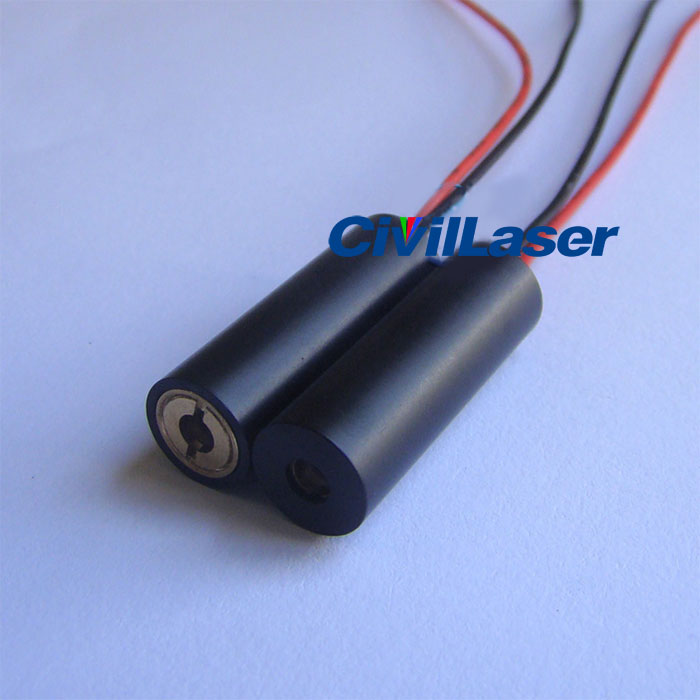

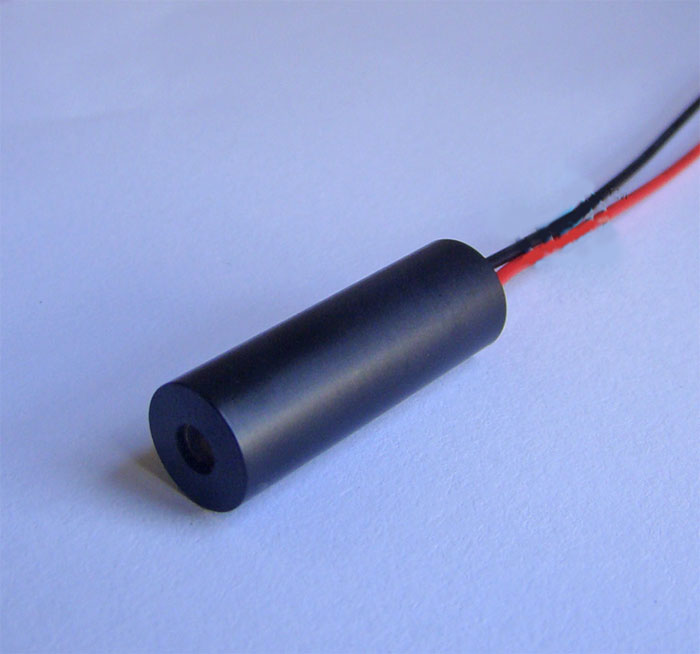

24V 1mW 650nm Rojo Dot laser module positioning lase
