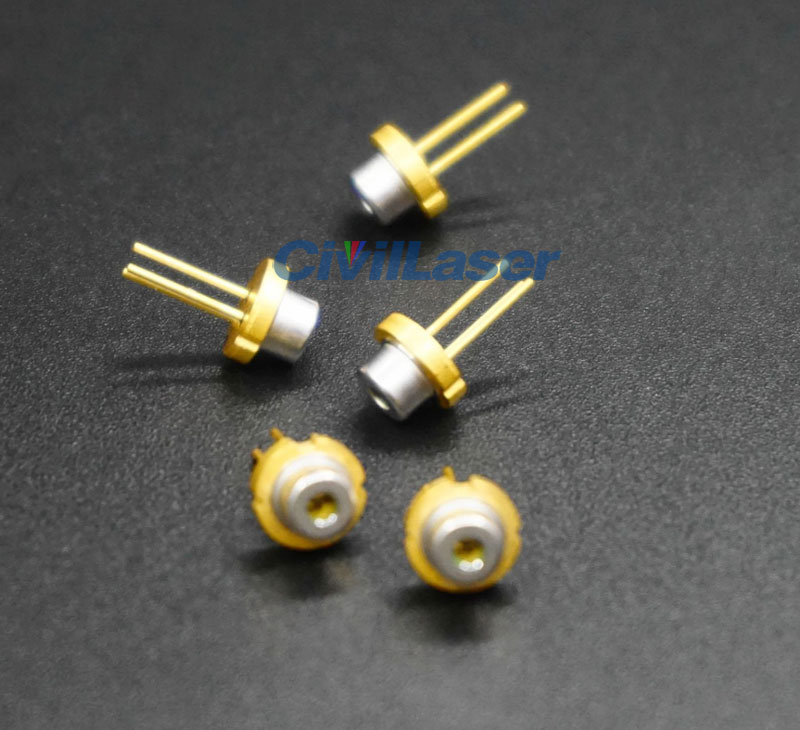

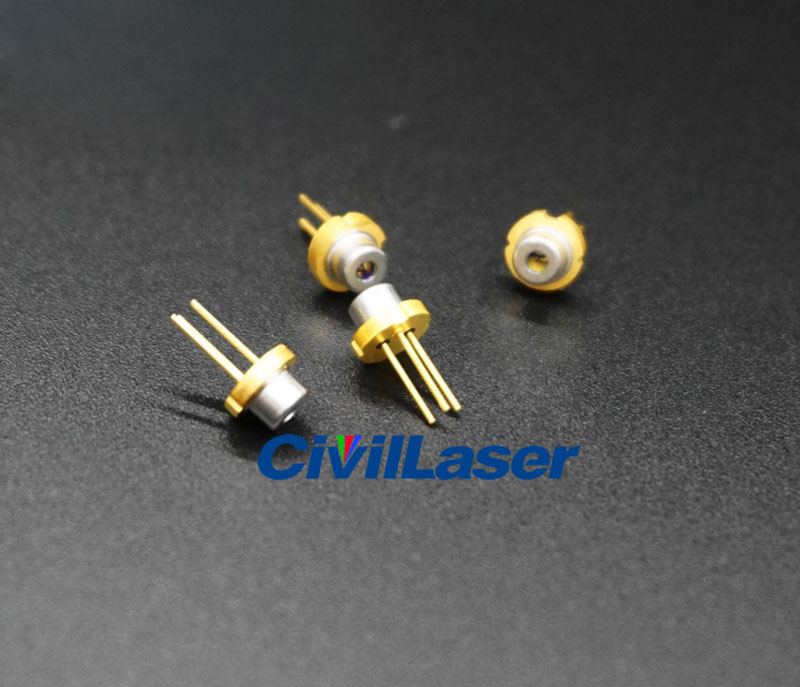

This is a 350mw 405nm Diodo láser GH04W10A2GC. It is a Cut-PIN 405nm Violet Laser Emitter Diode. It is intended to be used for ordinary electronic equipment such as office equipment, measurement instruments and household appliances. However, this LD is classified in class 4 of IEC60825-1 and 21 CRF Part 1040.10 Safety Standards. Please be careful to use it.
Features:
Optical Potencia de salida: CW 350mW (@Tc=25° C)
Peak Longitud de onda: 405nm
Working Current: <300mA
Working Voltage: 4.5V
Working Temperature:10℃-+40℃

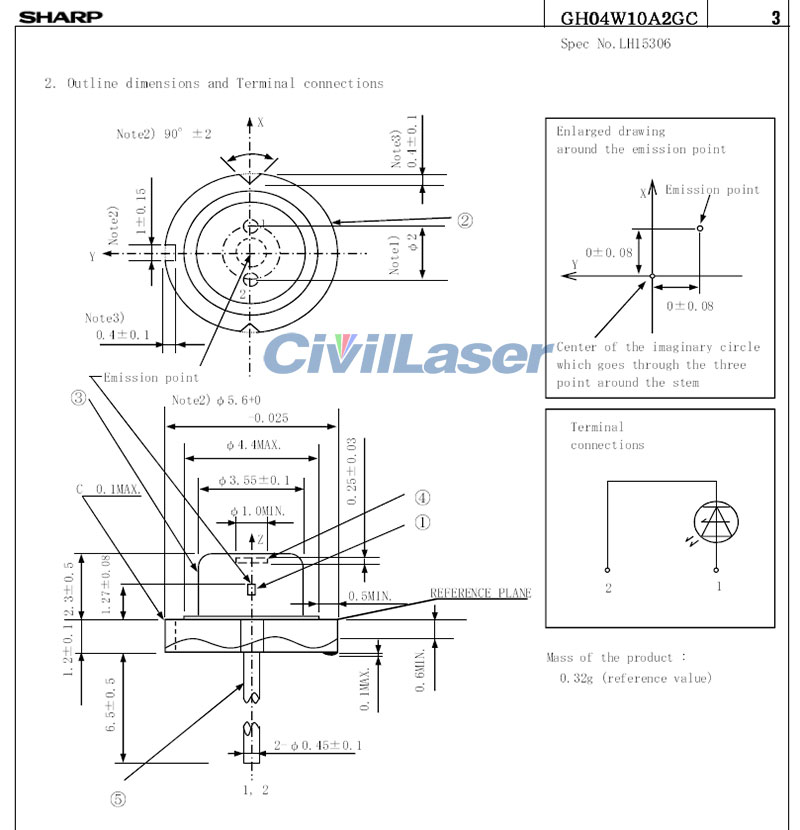

Can Type: 5.6 Floating Mounted with Photo Diode and Zener Diode
Life span:>5000 hours
