10 concentric circles laser module adjustable laser line width

10 concentric circles laser module adjustable laser line width

10 concentric circles

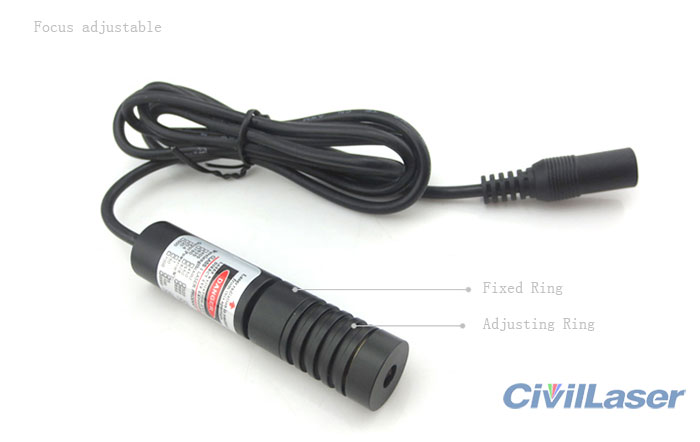

Laser line width: Adjustable
Laser beam brightness: Adjustable (Include a adjustabel laser power supply)

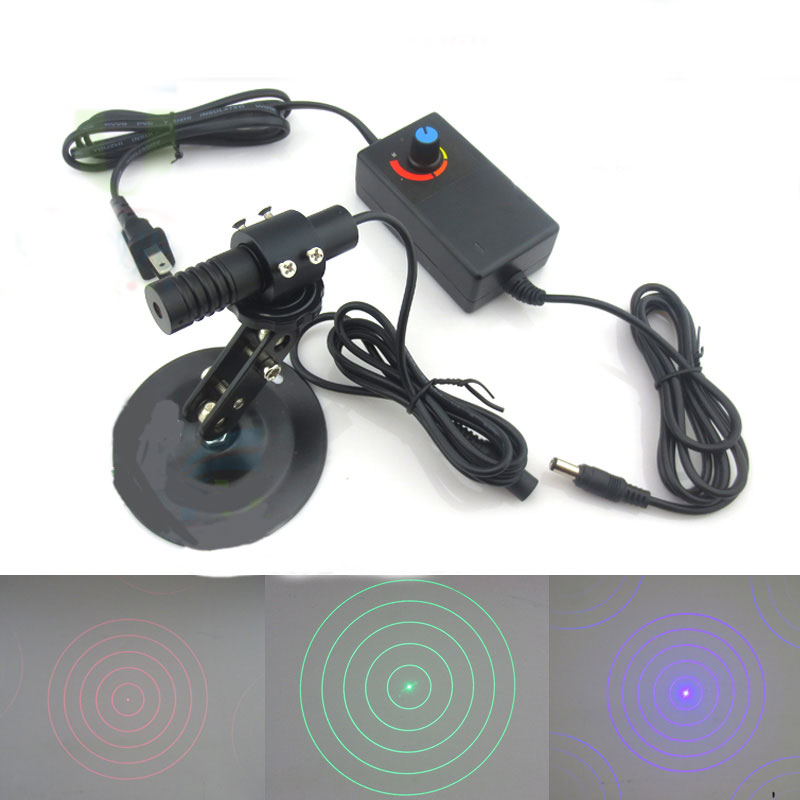

Rojo/Verde/Azul laser can be selected.

Advantage：
1. high brightness of indoor and outdoor general;
2. the light is bright and soft and not dazzling;
3. the ring width can be adjusted to meet your different requirements;
4. the shell for the aviation aluminum insulation paint can be fully heat and can be anti shock and anti static.

10 concentric circles：
At 50cm distance: Outer circle diameter 63cm /   The inner circle diameter is 6.3cm / The spacing between the circles is 3.15 cm
At 100cm distance: Outer circle diameter 126cm /   The inner circle diameter is 12.6cm / The spacing between the circles is 6.3 cm
At 150cm distance: Outer circle diameter 189cm /   The inner circle diameter is 18.9cm / The spacing between the circles is 9.45 cm

Installation height of 0 meters - 5 meters can be used (external structure, adjustable width, easy to use)

Especificaciones:
Longitud de onda: 650nm red laser/520nm green laser/450nm blue laser(Can be choose)
Potencia de salida: 100mw(Default)
Working voltage: DC 2.8~5.2V (Accept customize)
Woking Current: <500mA
Forma láser: 100% uniform linewidth and collimation line;

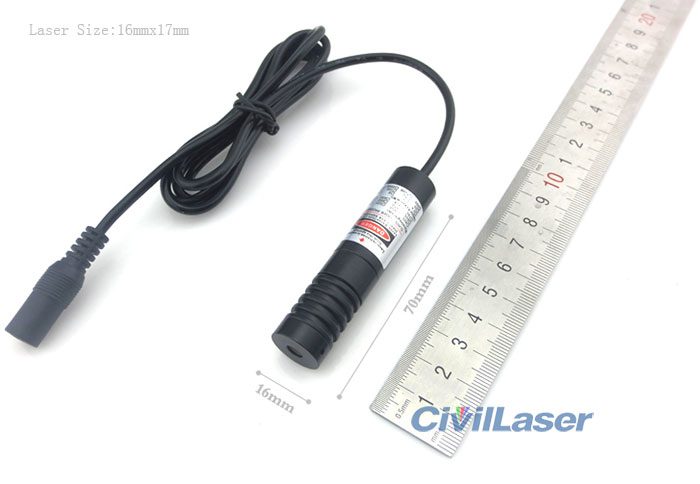

Tamaño: φ16*70mm (can be customized)
Optical lens: grating (imported from Germany)

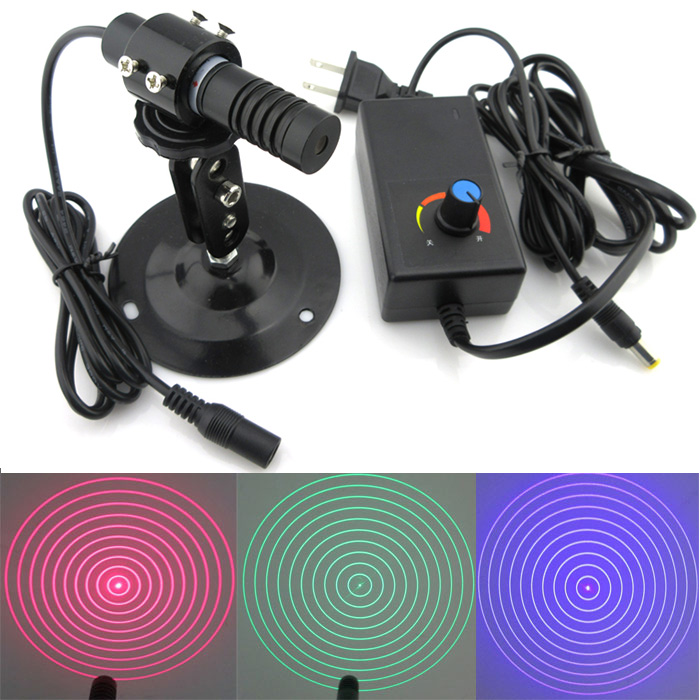

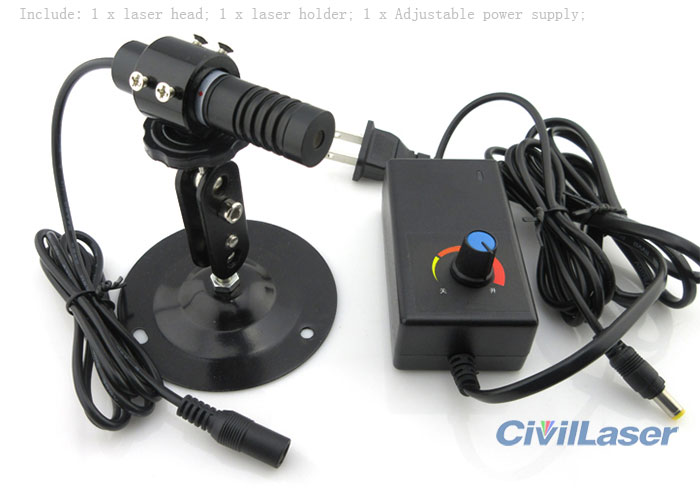

El paquete incluye:

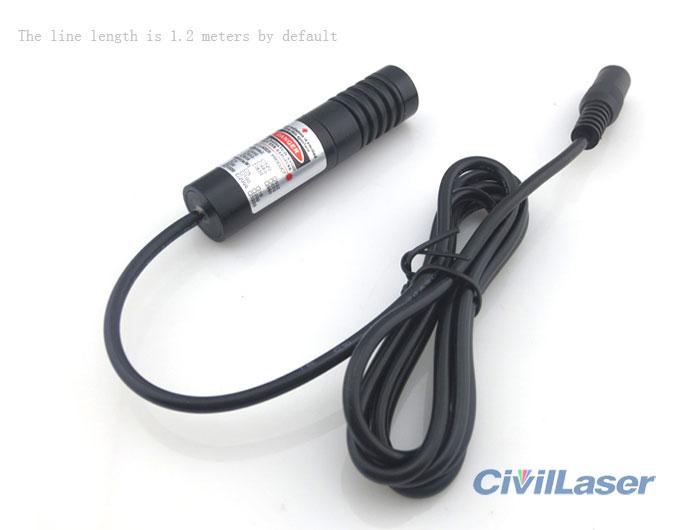

1* laser module;
1* laser bracket;
1* adjustable power supply.
