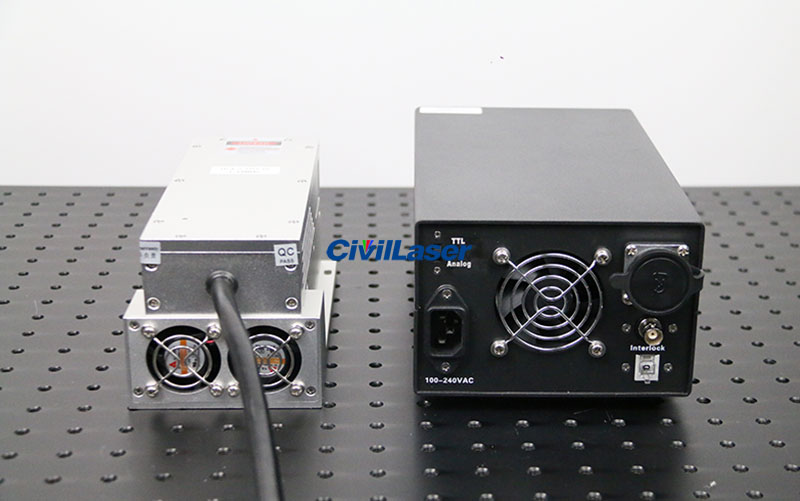

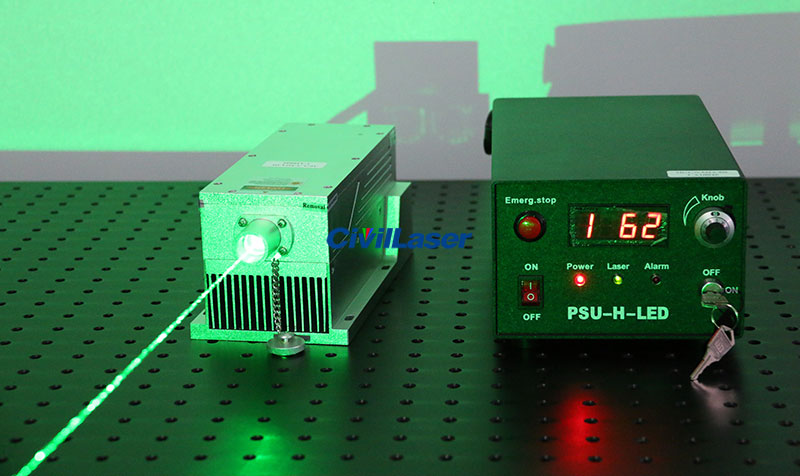

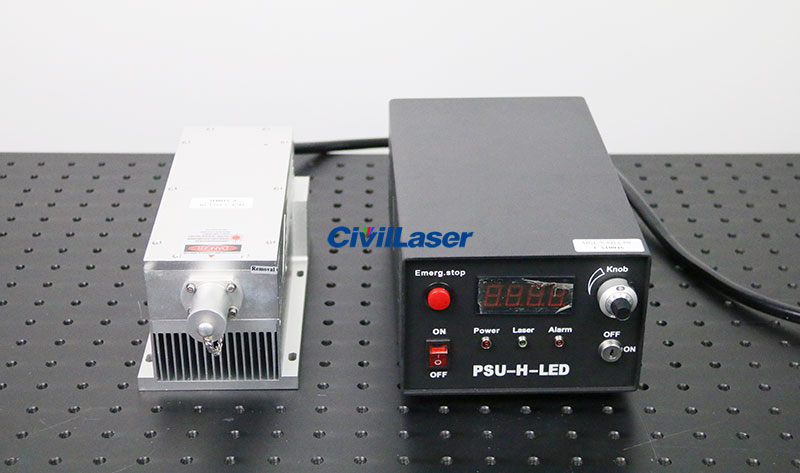

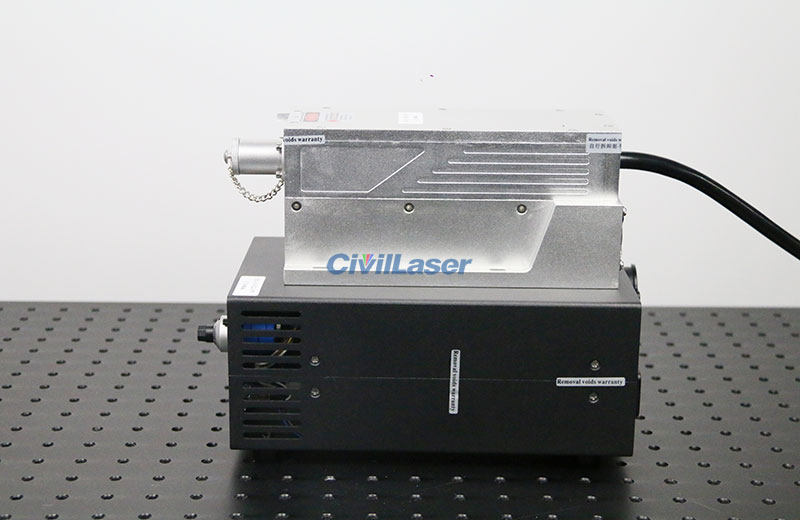

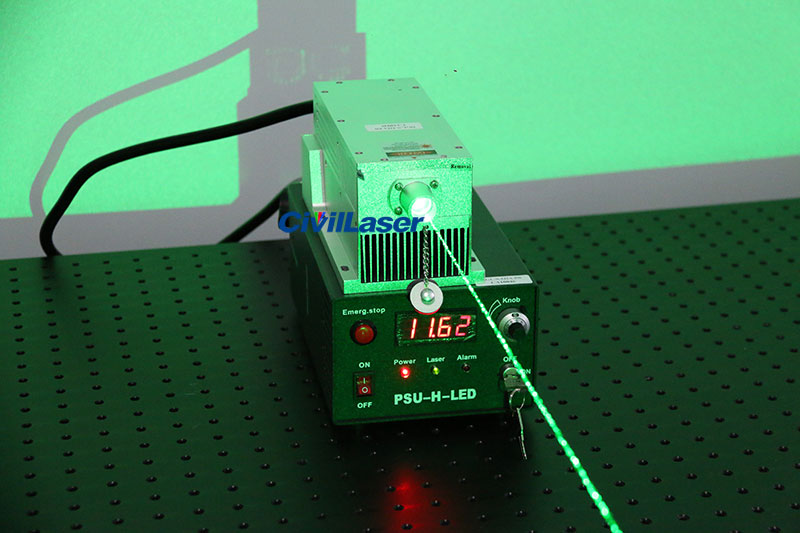

532nm 5W Verde Módulo láser/Automatic refrigeration/Alto Voltaje Láser DPSS with power supply

MGL-N-532Anm-5W-A green laser show:

The imported laser diode pump source, MGL-N-532Anm-5W-A DPSS green laser are made of high quality high quality nonlinear crystal and collimating lens, with temperature control of high performance driving power, the active temperature control, with high efficiency, good stability, good beam quality, low noise, strong anti-jamming, good consistency, compact structure, miniaturization, long life and so on.

Products are widely used in medicine, laser show, isotope separation, ultra-high density optical storage, precision materials processing, lithography, spectrum analysis etc..



Model: MGL-N-532Anm-5W-A (Good Beam)
Longitud de onda: 532±1nm
Operating Mode: CW & modulation
Potencia de salida: 5W
Spatial Mode: TEM00

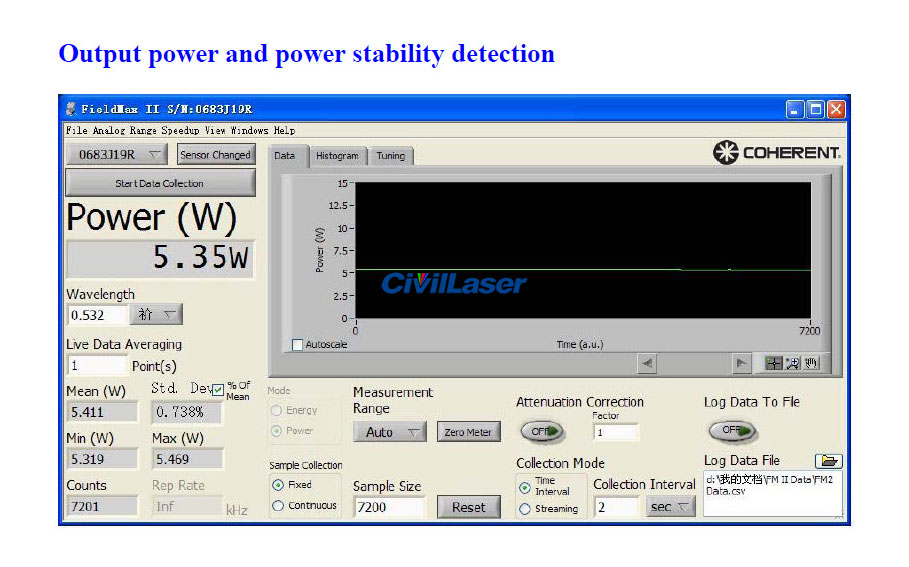

Power Stability(rms, over 4 hours): <1%

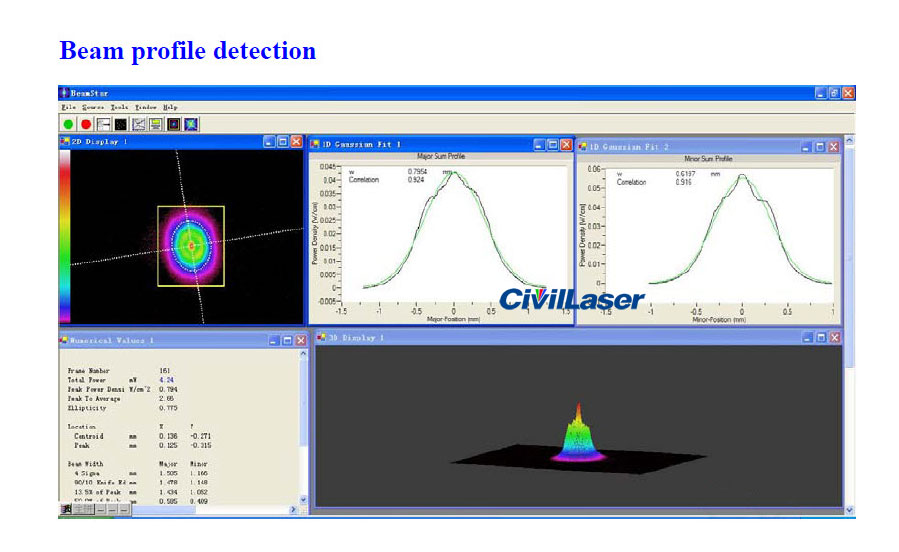

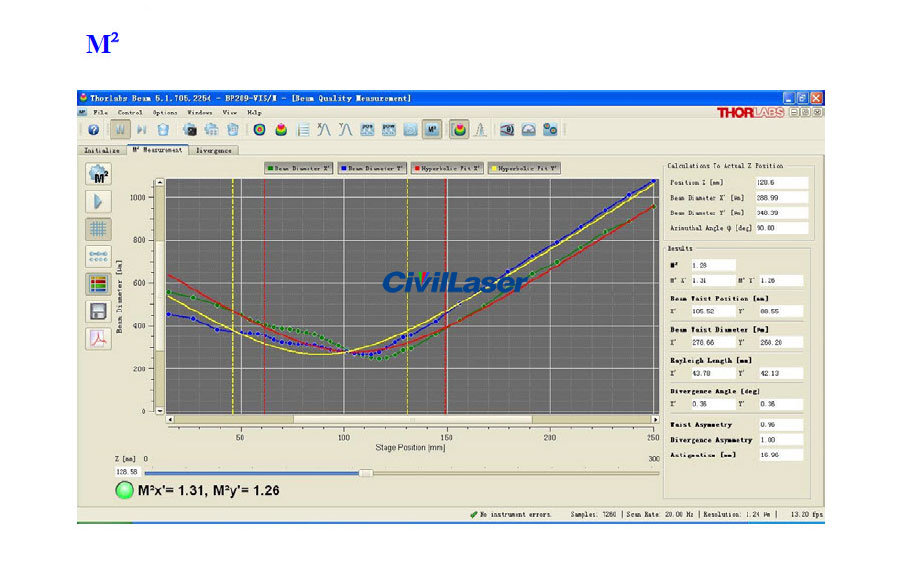

Beam Quality(M2): < 1.3
Beam Diameter at the Aperture (1/e2,mm): Near 1.5
Beam Divergence, Full Angle (mrad): <1.5
Warm‐up Time (minutes): <10
Polarization Ratio: >100:1
Beam Height From Base Plate (mm): Near 68.5
Operating Temperature (℃): 10~35
Power Supply (90‐264VAC): PSU‐H‐LED (Adjustable type)
Modulación: TTL/Analog with 1K~10KHz
Expected Lifetime (hours): 10000

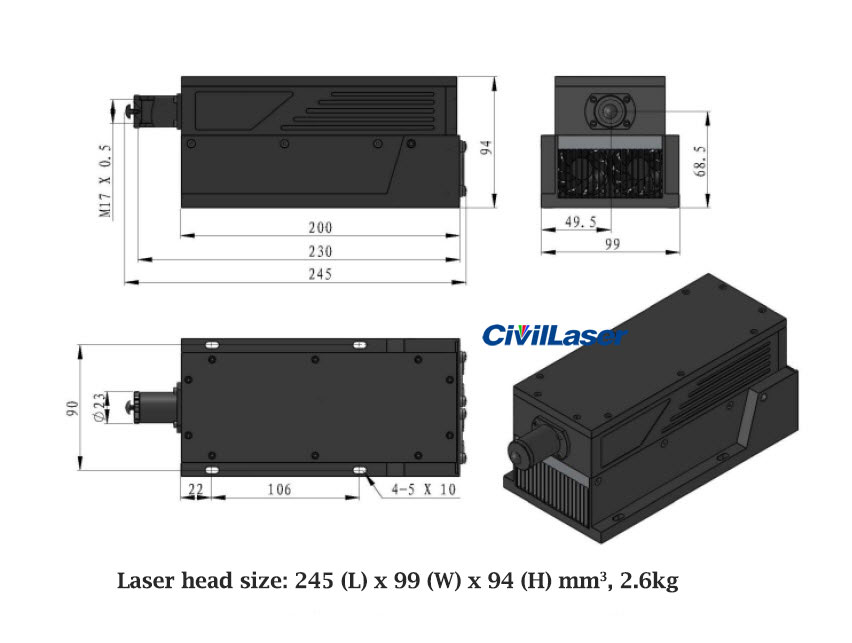

Size of Laser Head:  245×99×94mm3 (LxWxH)

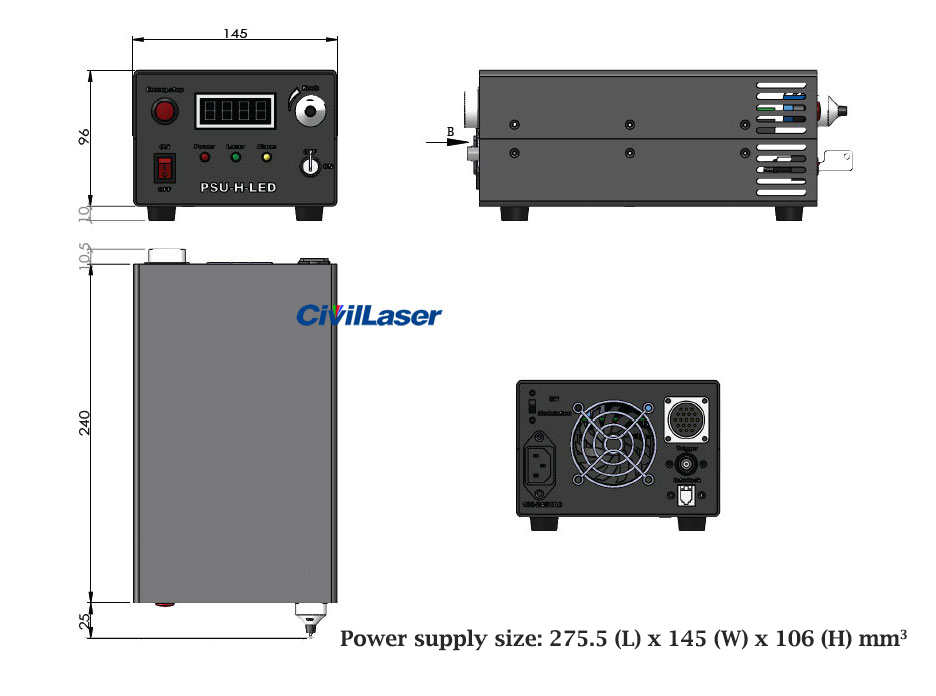

Size of Fuente de alimentación: 240×145×96mm3 (LxWxH)
Warranty Period: 1 year
