FC-LC Single Mode Double Core Fiber Patch Cord

The fiber optic patch cord is one of the most consumable basic fiber optic network components. It can be made up with different kinds of connectors such as the SC, LC, ST, FC, and MU connectors, and different types of fiber cable such as the single mode fiber and multimode fiber.

[Features]
1. High quality ferrule

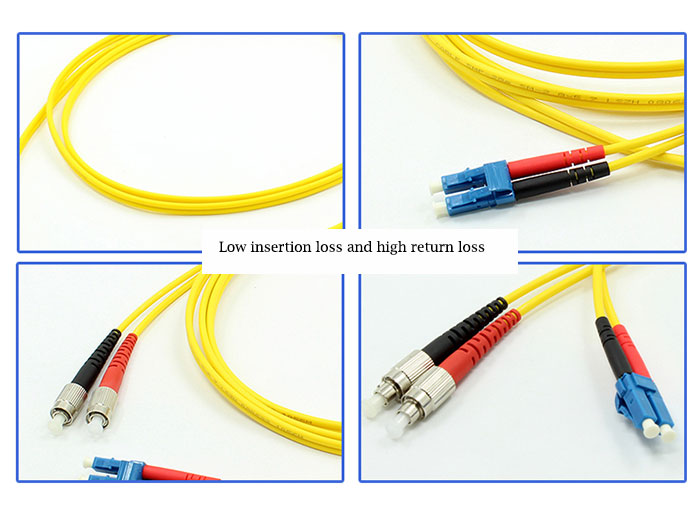

2. Low insertion loss and high return loss
3. High interchangeability and durability
4. The optic fiber patch cord can be customized according to customers' specific requirements.
5. Compliant with Telcordia GR-326-CORE, IEC and RoHS standards
6. Strict curing time and temperature control
7. Strict testing standards and methods
8. Strict quality testing

[Applications]
1. Wiring of local area network between different enterprise buildings
2. Connection of optical links in optical active devices
3. Wiring in communication base station and distribution case
4. Production and testing of optical devices
5. Optical fiber communication system, CATV and telecommunication network
6. LANs and WANs
7. FTTx

Notes:
If you need other type singal mode (SM) fiber patch cores,please contact us ,we provied DIN,FC ,MU,SC,ST,LC,MTRJ SM fiber patch cord.

Specifications

Item Parameter
Matched Connector Type FC,LC
Fiber Type Single mode
Operating Bandwidth Range 1,250~1,650nm
Testing Wavelength  1310nm,1550nm
Typical Insertion loss ≤0.20dB
Maximum  Insertion loss  ≤0.30dB
Repeatability ≤0.10dB
Exchangeability ≤0.20
Durability 1,000 Mating, loss≤0.20dB
Tensile Force ≥120N(except 0.9mm cable)or customized
Operating Temperature -2 0℃~ + 70℃
Storage Temperature -40 ℃~ + 85℃

Ordering Information

Fiber Type Cable Type Connector Color Cable outer diameter Jacket color Ferrule End Face Total Length
SM: 9/125μm Simplex Cream-colored 0.9mm Cream-colored UPC Customized
MM: 50/125μm Duplex Azul 1.8mm Azul APC
MM: 62.5/125μm 4-core Verde 2.0mm Verde
MM: OM3/150 6-core Azul green 2.4mm Yellow
MM: OM3/300 8-core Black 3.0mm Rojo
MM: OM3/50 12-core Rojo   Black
  24-core Metallic   White

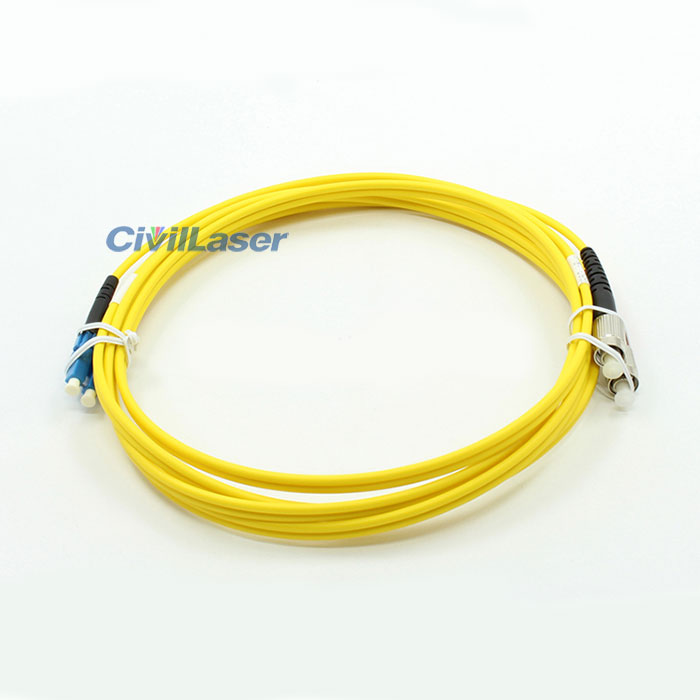

FC-LC Singal Mode Double Core Fiber Patch Cord

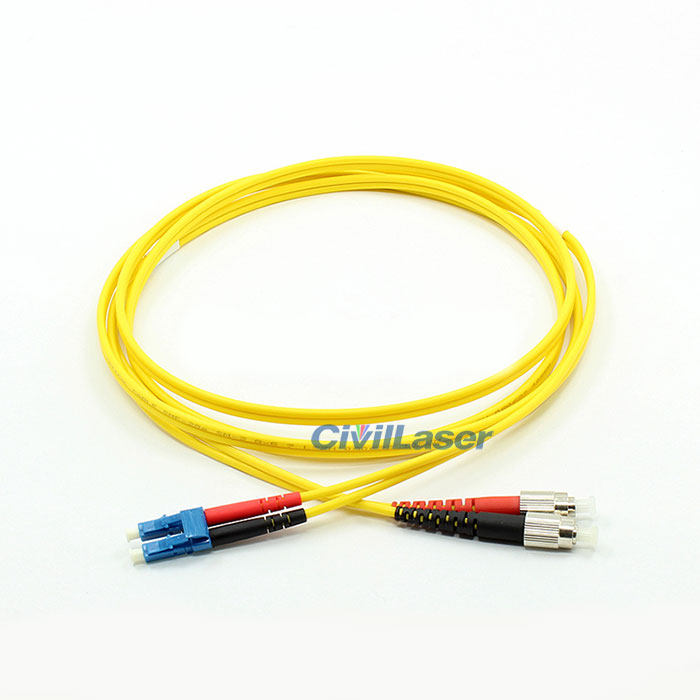

FC-LC Singal Mode Double Core Fiber Patch Cord

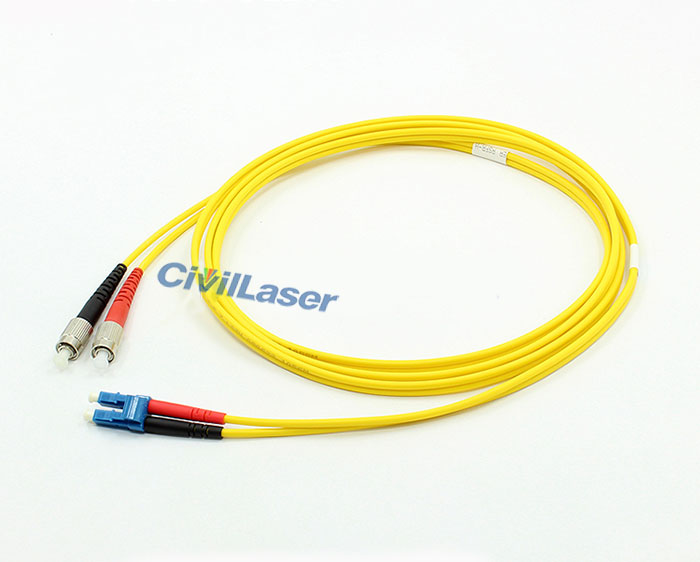

FC-LC Singal Mode Double Core Fiber Patch Cord
