OSRAM PL 450B LD 450nm 80mW Diodo láser azul TO-18
[Features]
Optical output power (continuous wave):80mW(Tcase=25℃)
Typical emission wavelength:450nm
Efficient radiation source for cw and plused operation
Single transverse mode semiconductor laser
High modulation bandwidth
[Application]
Laser Projection
Laser Shows
Metrology
Biomedical Applications

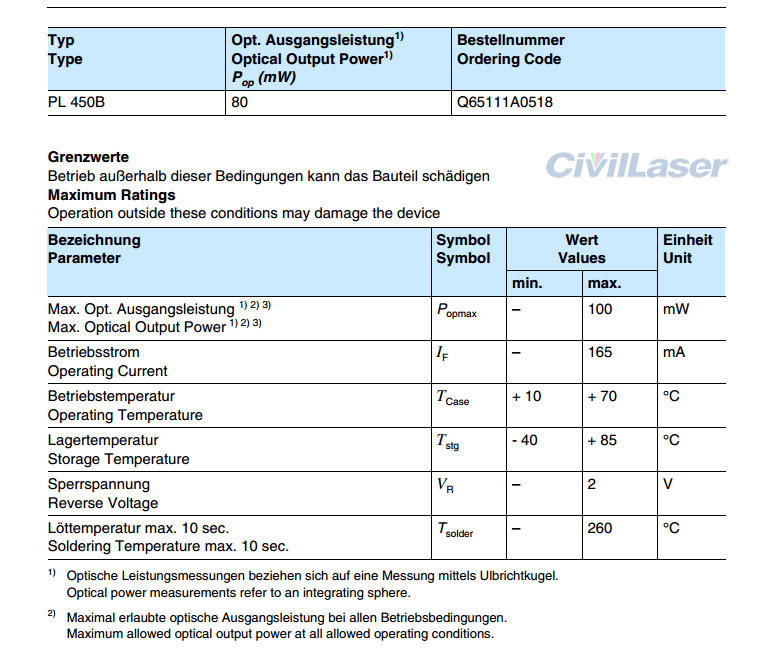

[Especificaciones]
Type:PL450 B
Longitud de onda de salida:450nm
Potencia de salida:80mW
Operating Current (Tm=25℃) : <165mA
Storage Temperature:-40~85℃
Operating Case Temperature: -40~70℃
Reverse Voltage:2V
Soldering Temperature max.10.sec:260℃
Junction Temperature:120℃
Emission Longitud de onda:440nm-460nm
Spectral Width:2nm
Threshold Current: <40mA
Opreating Current:<145mA
Tensión de funcionamiento: <6.5V
Beam Divergence :4*18deg~7.5*25deg
Modulation Frequency:>100MHz
