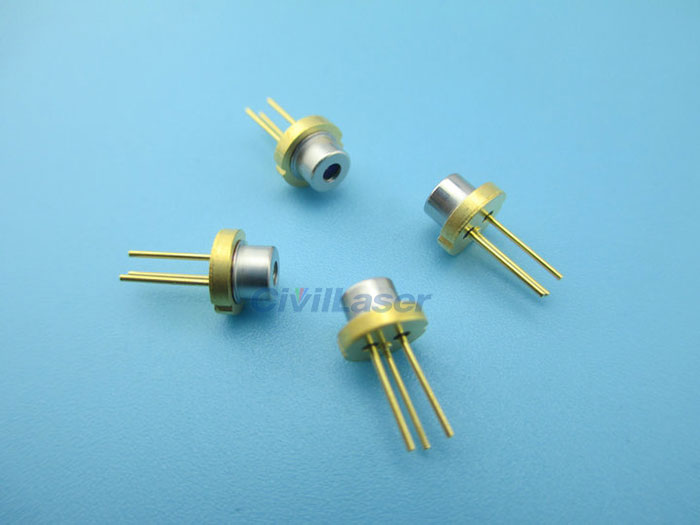

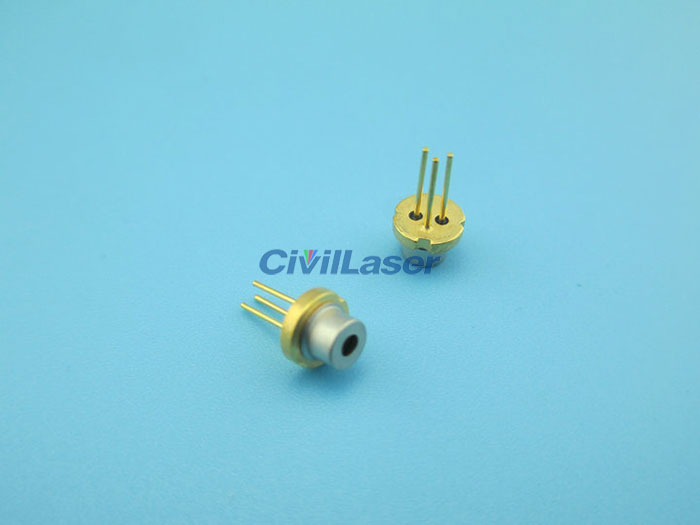

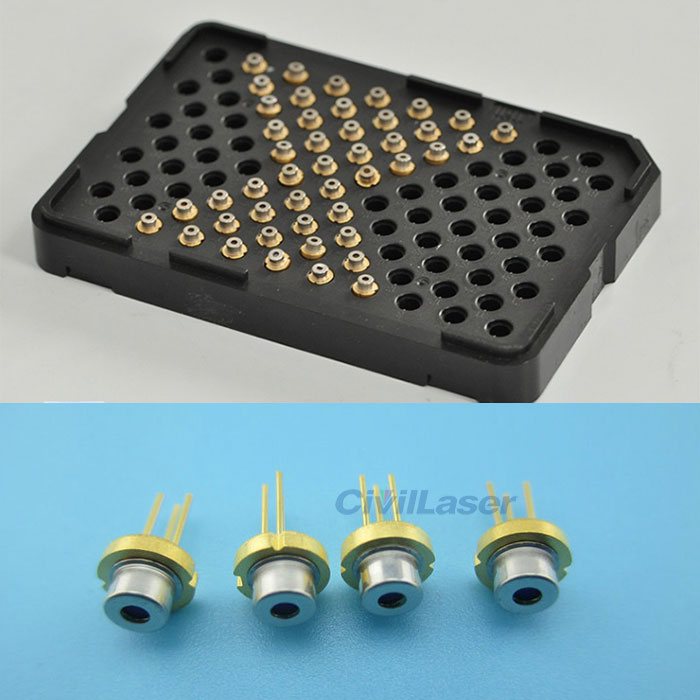

QSI QL63D43X LD 635nm 5mW Rojo Diodo láser TO-18

QSI QL63D43X LD 635nm 5mW Rojo Diodo láser TO-18

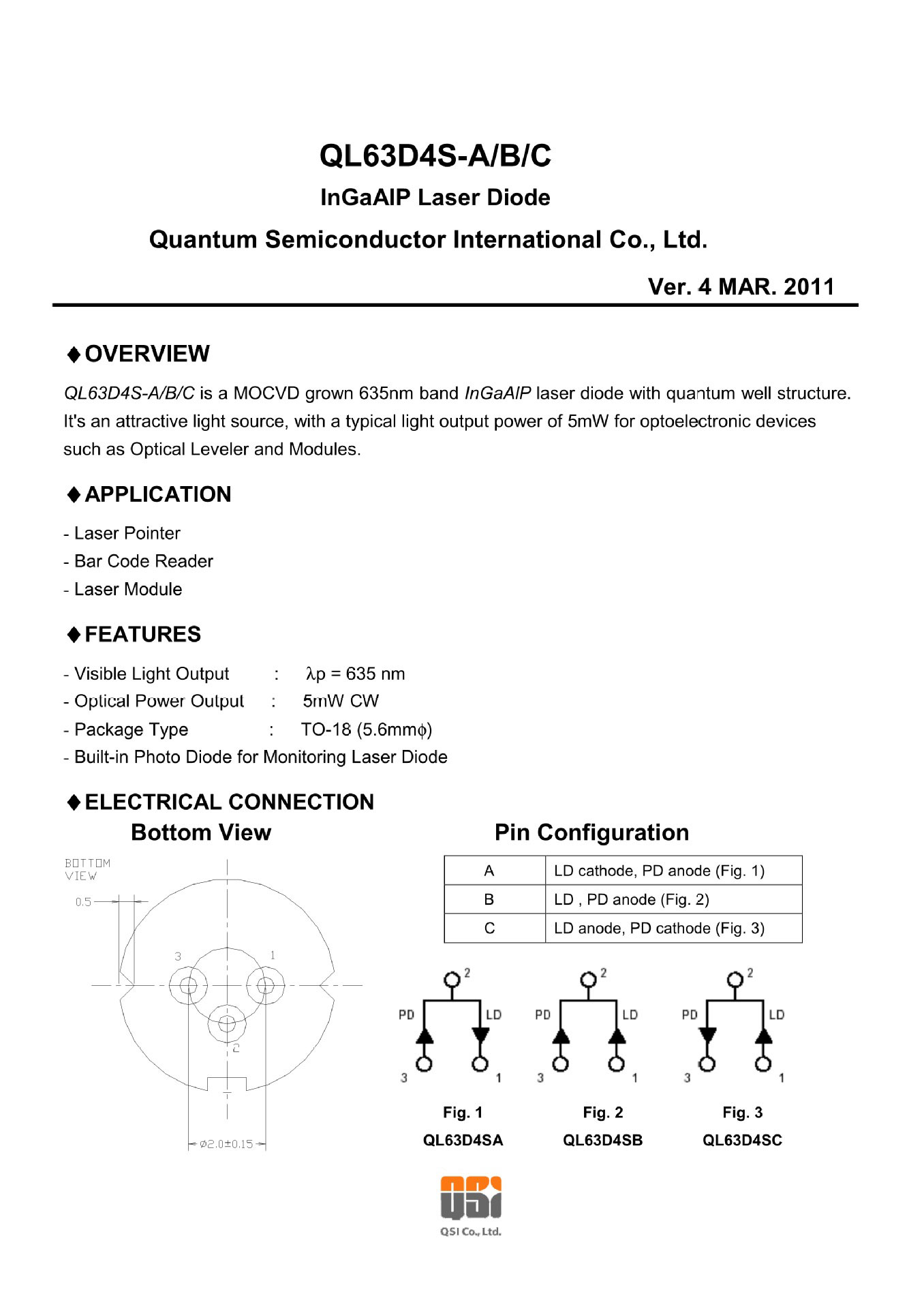

[Features]
Visible light output:635nm
Optical output power :5mW CW

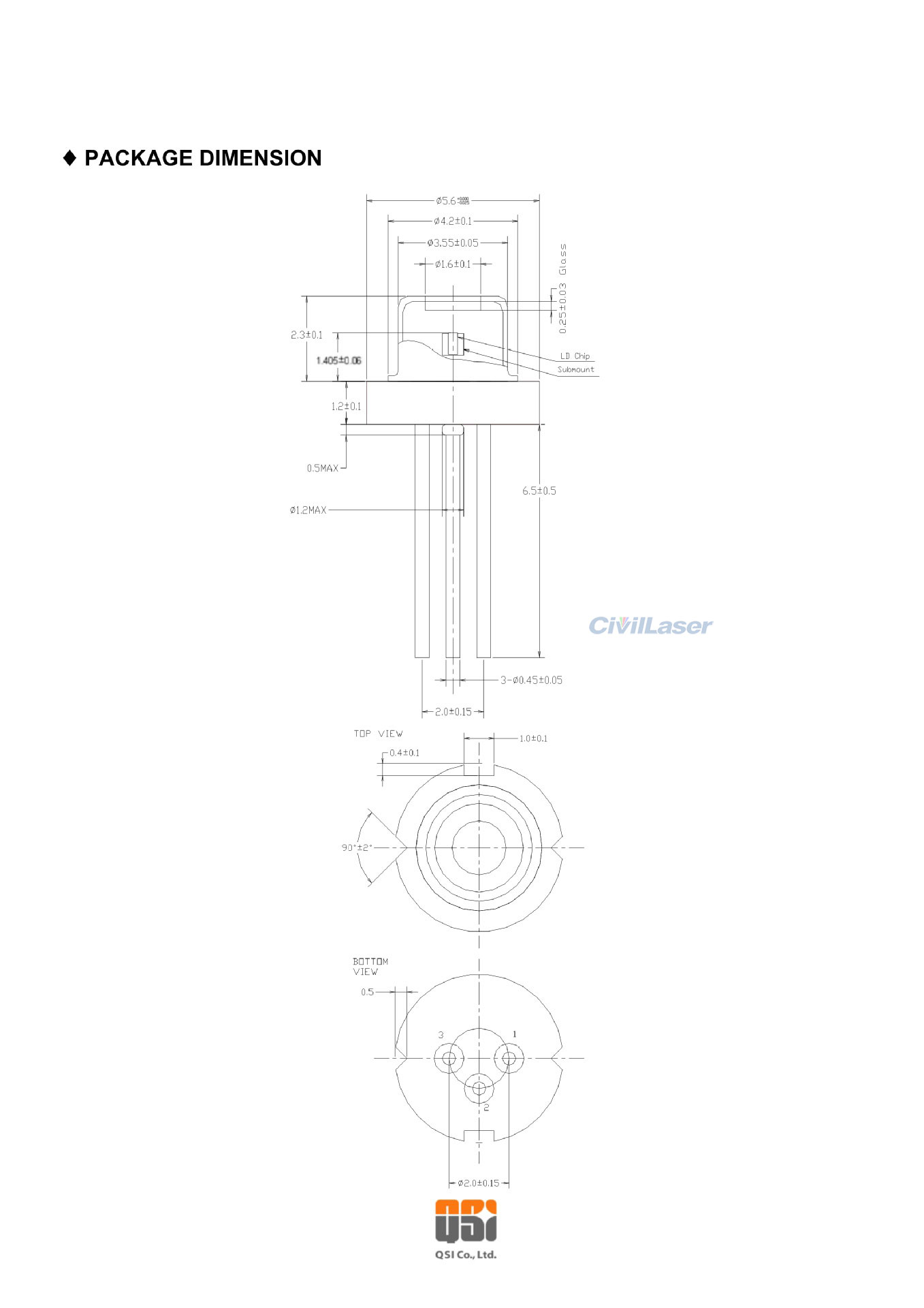

Package type:TO-18
Built-in photo diode for monitoring laser diode

[Application]
Laser Pointer
Bar Code Scanner
Módulo láser

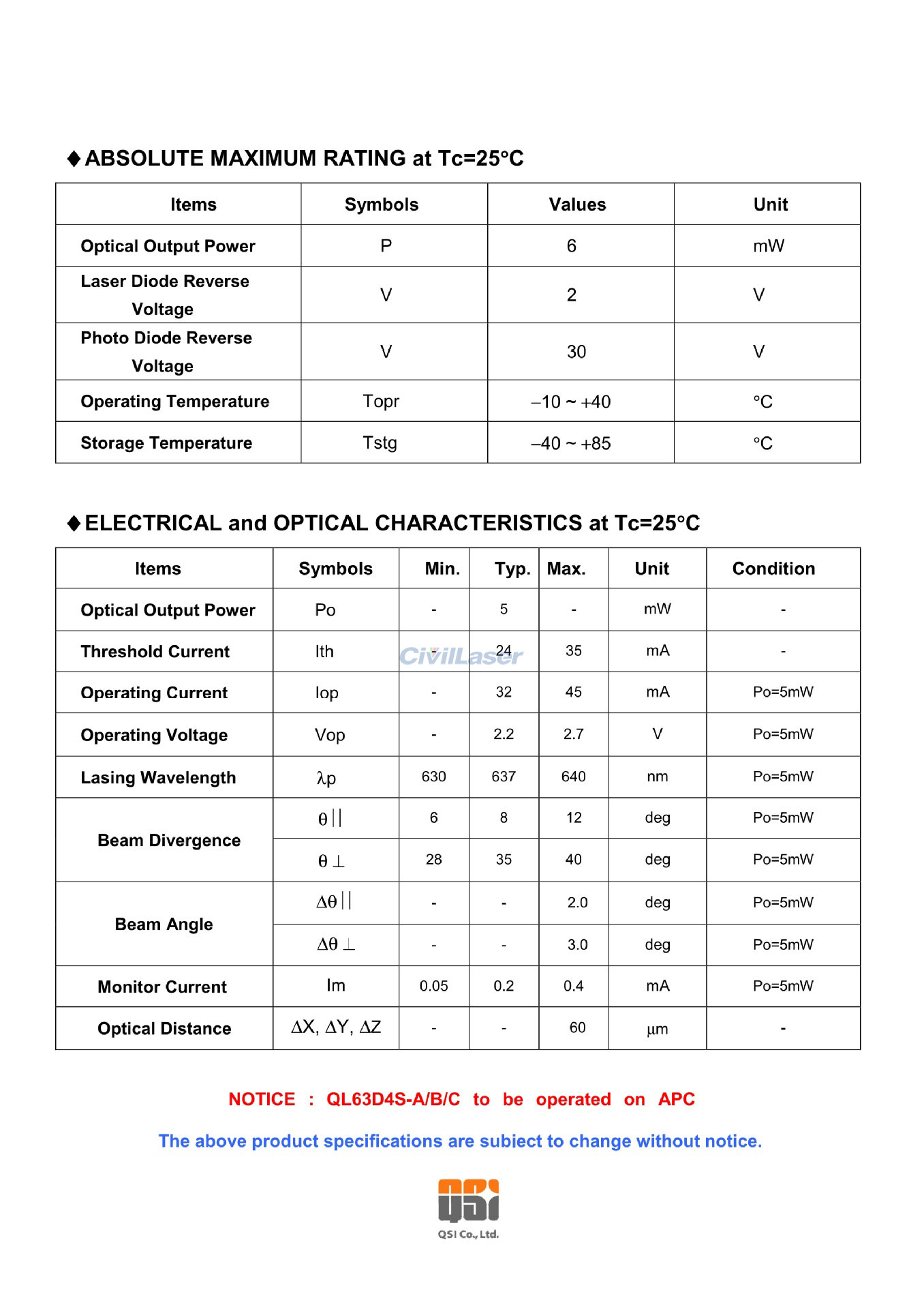

[Especificaciones]
Type:QL63D43X
Longitud de onda de salida:635nm
Potencia de salida:5mW
Diodo láser Reverse Voltage:2V
Photo Diode Reverse Voltage:30V
Storage Temperature:-40~85℃
Operating Case Temperature: -10~40℃

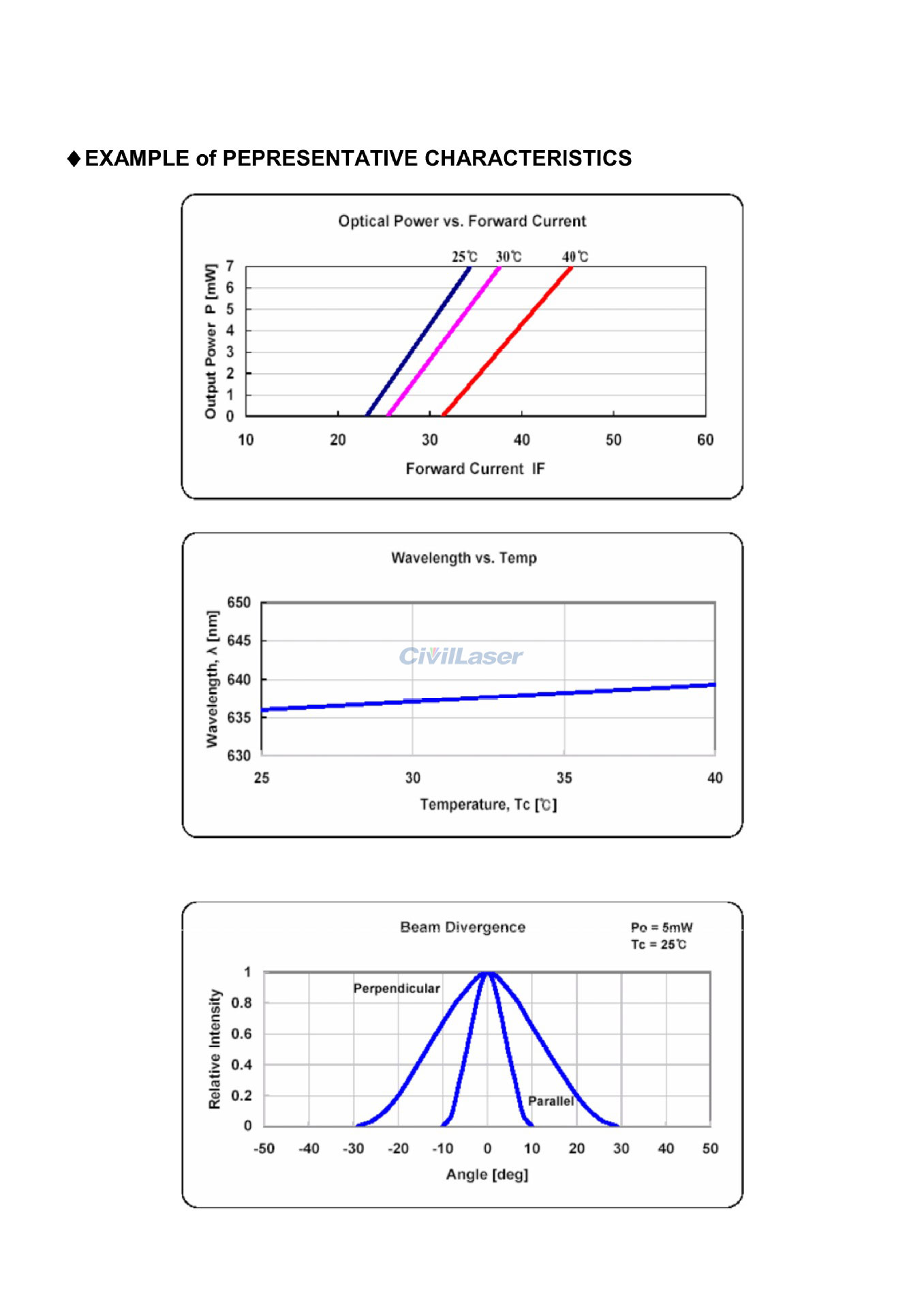

Electrial and Optical Characteristics at Tc=25℃
Optical Potencia de salida:6mW
Emission Wavelwngth: 630nm-640nm
Threshold Current: 24-35mA
Operating Current: 32-45mA
Tensión de funcionamiento: 2.2-2.7V

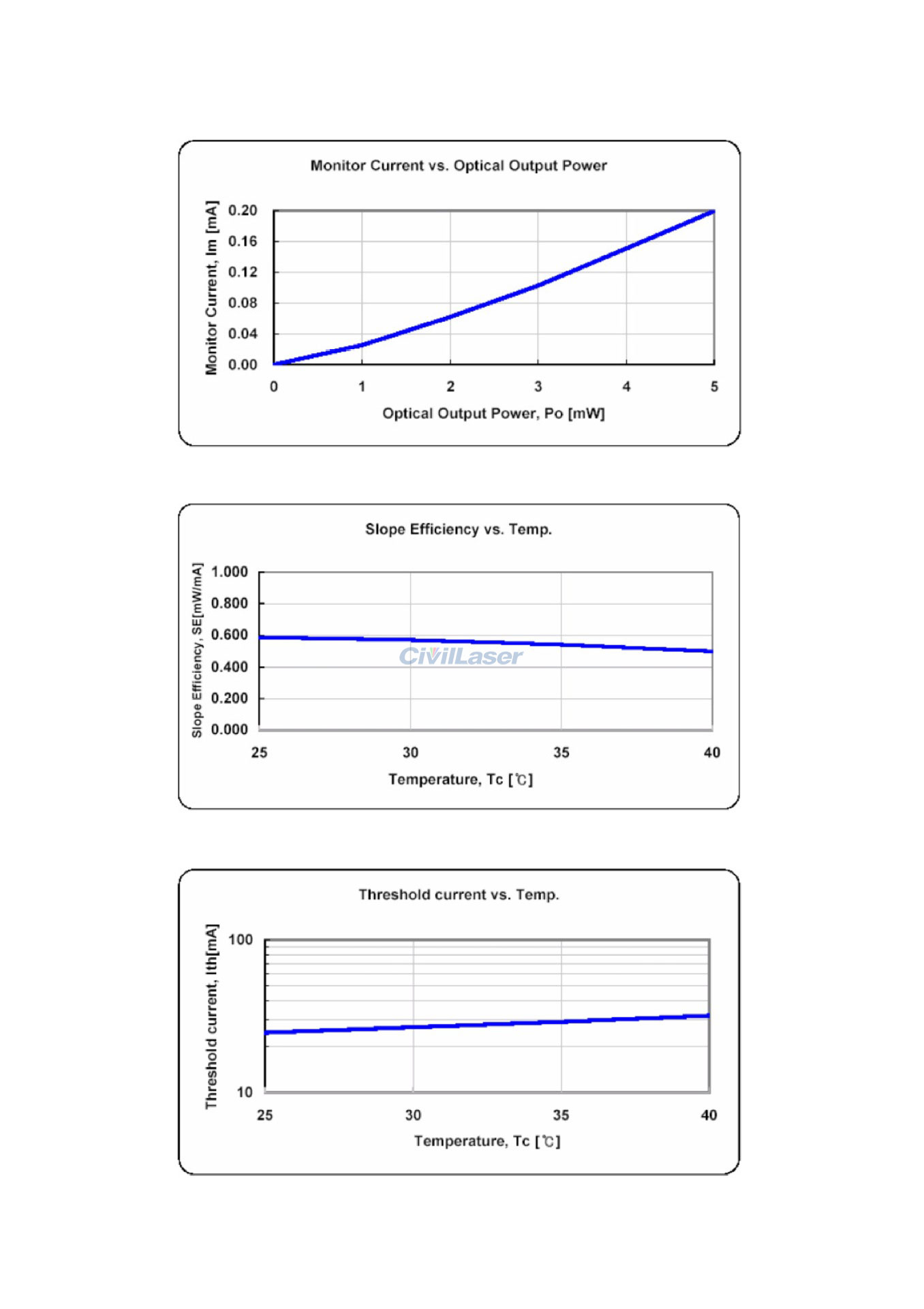

Monitor Current:  0.05-0.4mA
