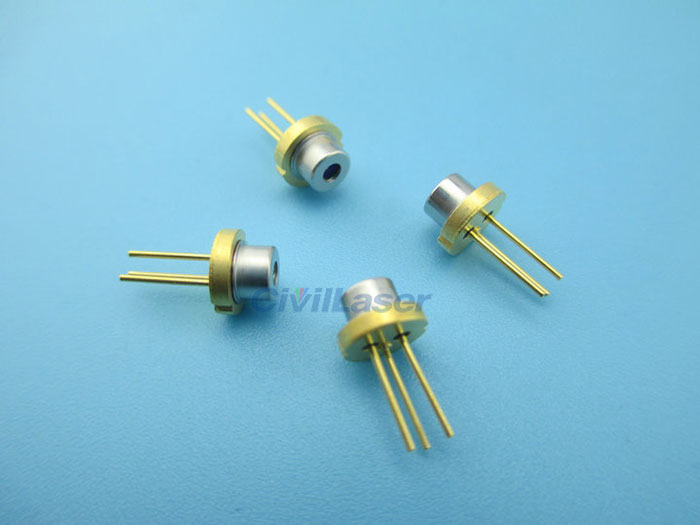

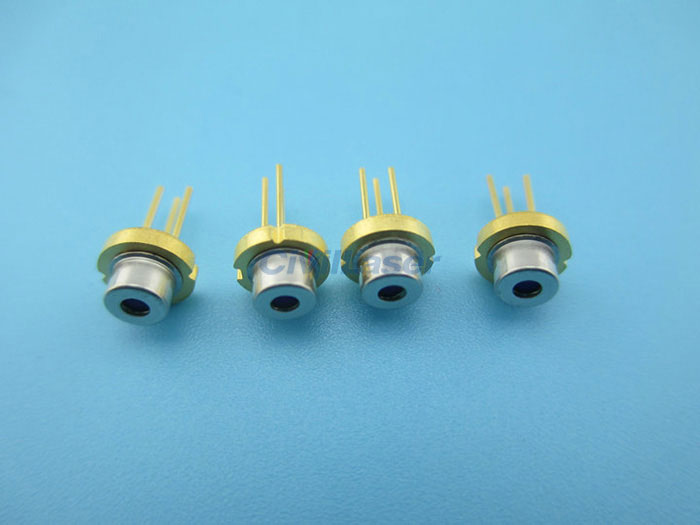

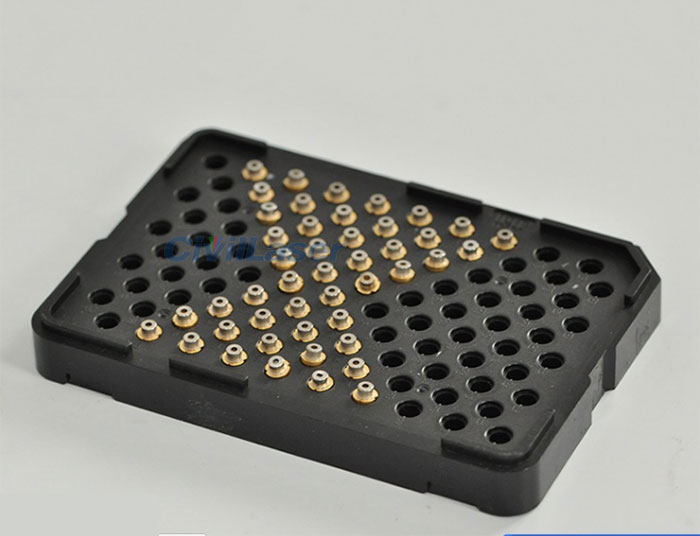

QSI 635nm 20mW QL63H5SX Rojo Diodo láser TO-18

QSI 635nm 20mW QL63H5SX Rojo Diodo láser TO-18

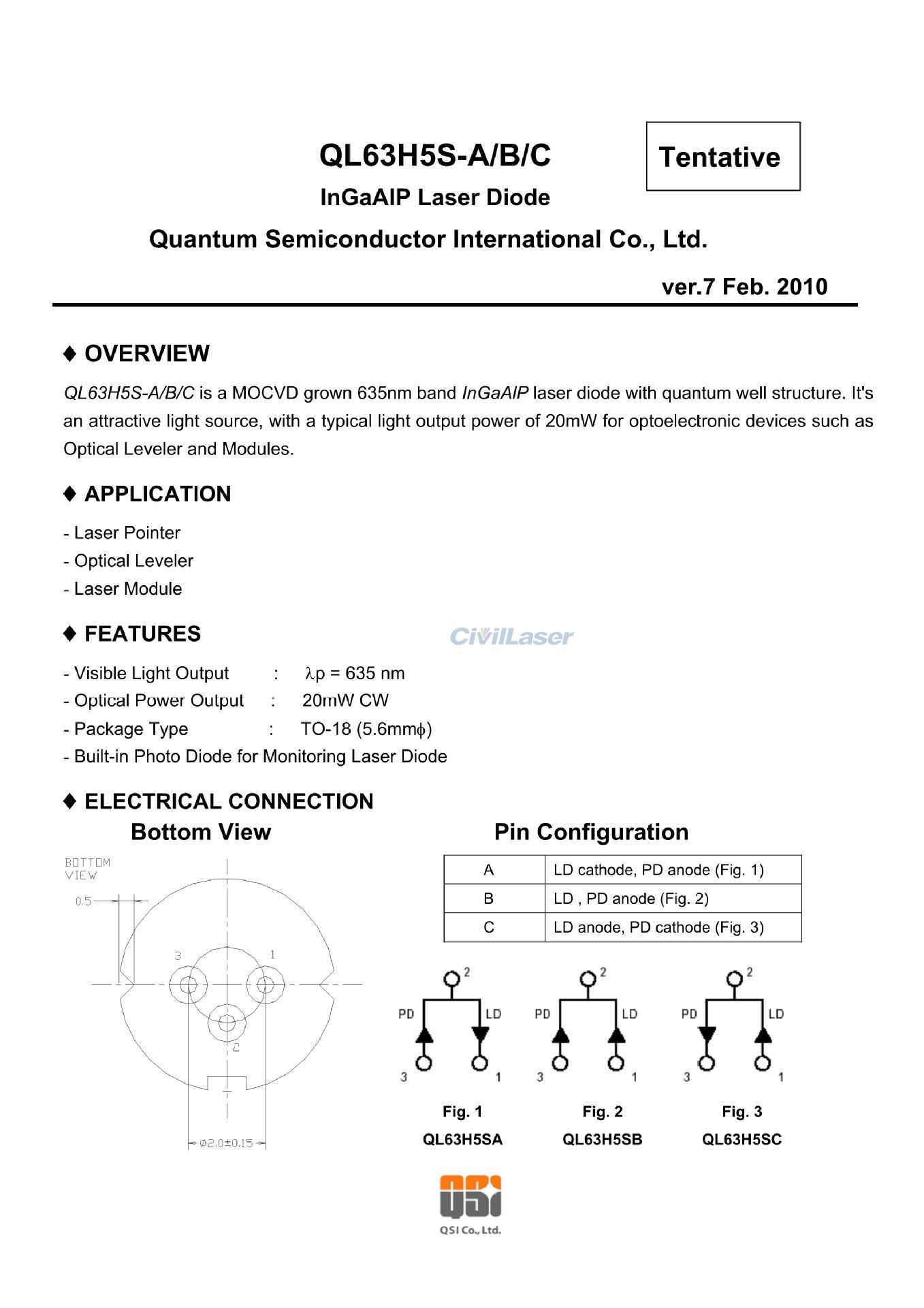

 [Features]
Visible light output:635nm
Optical output power :20mW CW

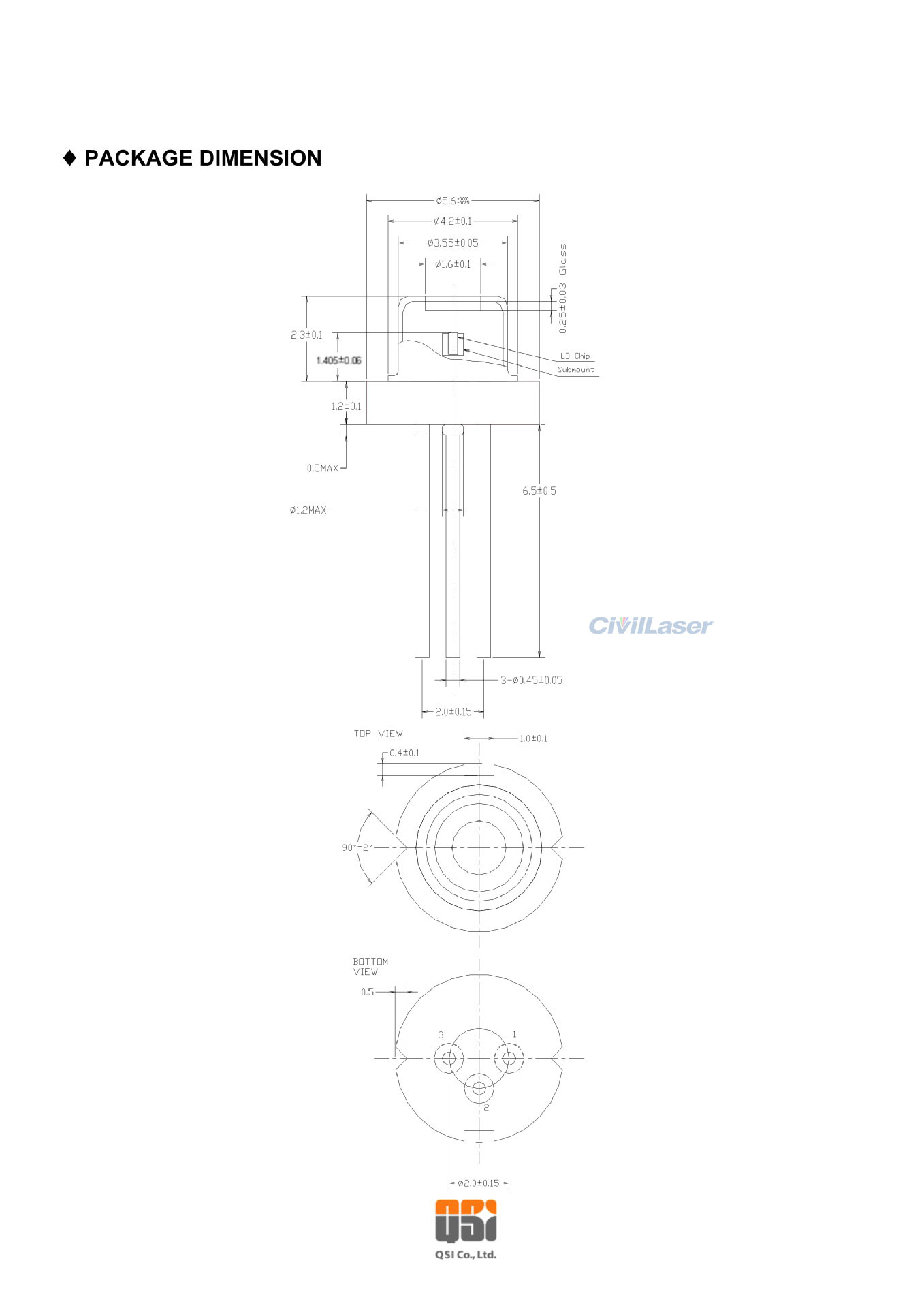

Package type:TO-18
Built-in photo diode for monitoring laser diode

[Application]
Laser Pointer
Optical Leveler
Módulo láser

[Especificaciones]
Type:QL63H5SX
Longitud de onda de salida:635nm
Potencia de salida:20mW
Optical Potencia de salida:24mW
Diodo láser Reverse Voltage:2V
Photo Diode Reverse Voltage:30V
Storage Temperature:-40~85℃
Operating Case Temperature: -10~50℃

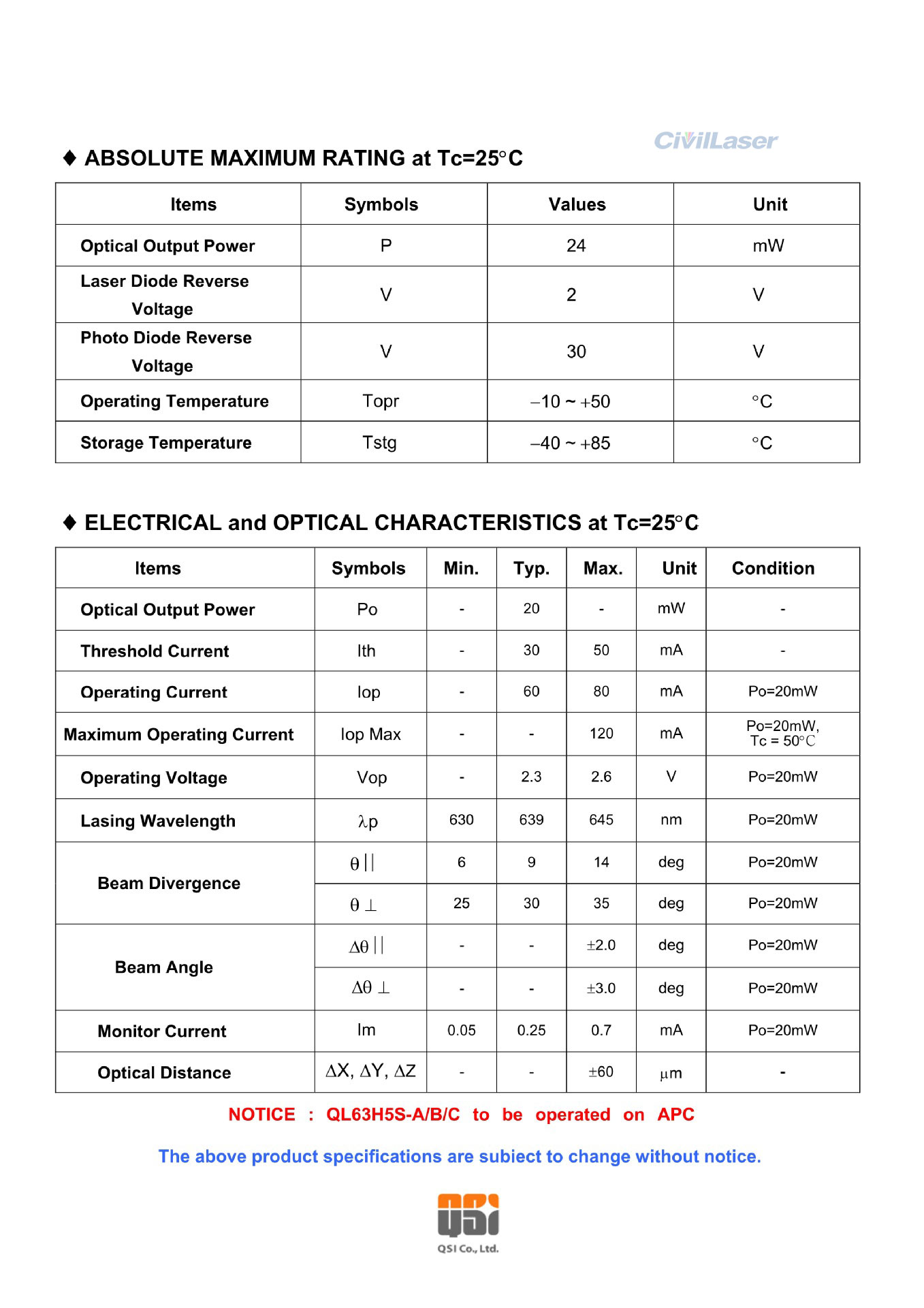

Electrial and Optical Characteristics at Tc=25℃
Emission Wavelwngth:630nm-645nm
Threshold Current:30-50mA
Operating Current:60-80mA
Maximum Operating Current:120mA
Tensión de funcionamiento:2.3-2.6V
Monitor Current:0.05-0.7mA
