510nm 10mW 15mW OSRAM LD PTL5 510 TO56 Diodo láser verde

510nm 10mW 15mW OSRAM LD PTL5 510 TO56 Diodo láser verde

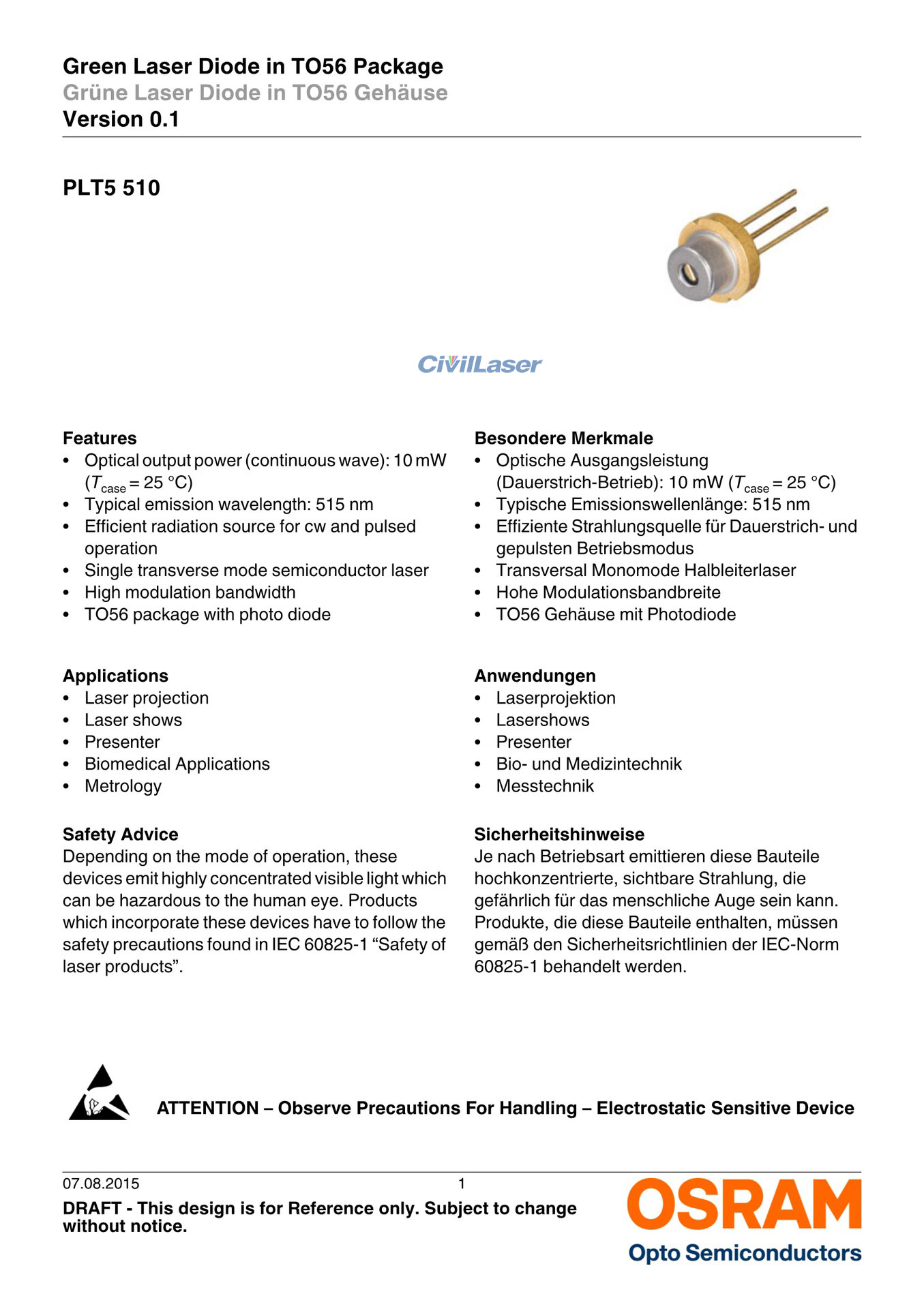

[Features]
Optical output power (continuous wave):10mW(Tcase=25℃)
Typical emission wavelength:515nm
Efficient radiation source for cw and plused operation
Single transverse mode semiconductor laser
High modulation bandwidth
TO56 package with photo diode

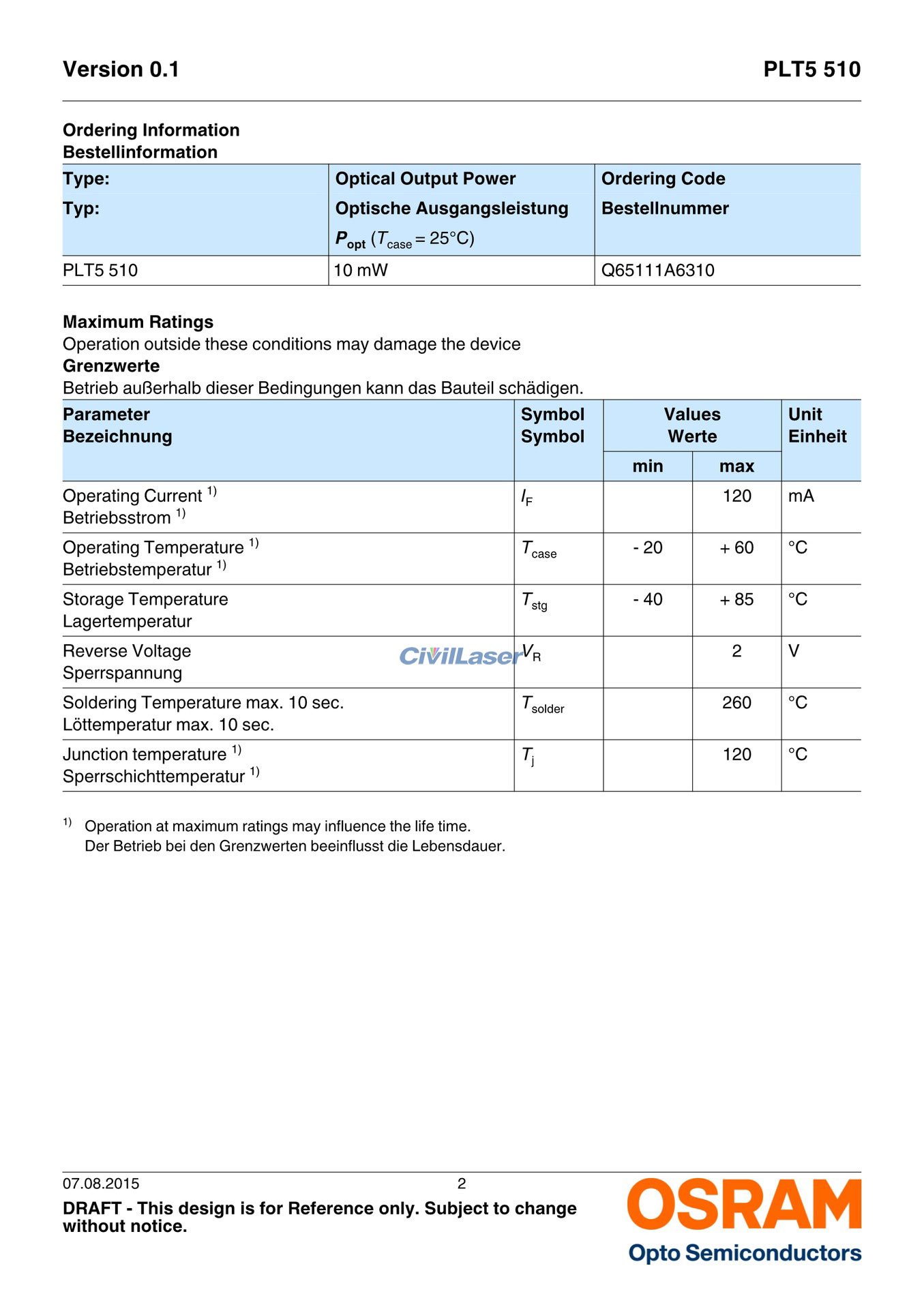

[Especificaciones]
Type:PLT5 510
Longitud de onda de salida:510nm
Potencia de salida:10mW/15mW(choose)
Operating Current (Tm=25℃:) 120mA
Storage Temperature:-40~85℃
Operating Case Temperature: -20~60℃
Reverse Voltage:2V
Soldering Temperature max.10.sec:260℃
Junction  Temperature:120℃

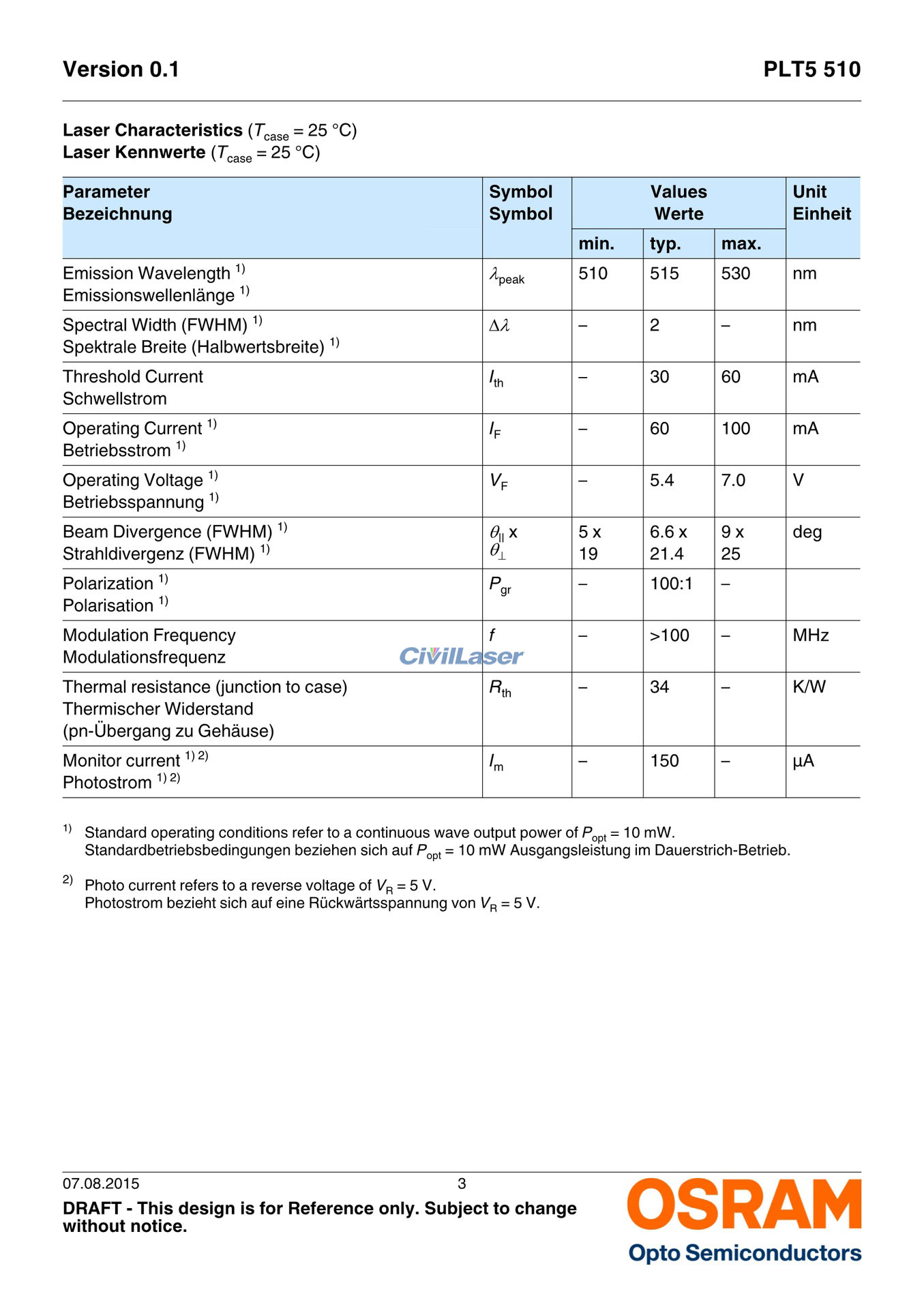

Emission Longitud de onda:510nm-530nm
Spectral Width:2nm
Threshold Current:30-60mA
Opreating Current:30-60mA
Tensión de funcionamiento:5.4-7.0V
Beam Divergence :5*19 deg-9*25 deg
Modulation Frequency:>100MHz
