355nm Actively AOM Q-switched UV laser 1-3000mW
Specification:
Wavelength:355±1nm
Operating mode:Q-switched: AOM (Acousto-Optic Modulation)
Output power (W):1.0,1.5,2.0,2.5,3.0 @20KHz
Single pulse energy (µJ):1~150uJ@20KHz
Pulse width (ns):15ns@20KHz, 30ns@40KHz
Rep. rate (kHz):10~100, adjustable by external control
Ave power stability (over 4 hours):<3%, <5%, <10%
Transverse mode:TEM00
M2 factor:<1.3
Roundness:>90%
Warm-up time (minutes):<10
Beam divergence, full angle (mrad):<1
Beam diameter at the aperture (mm):<1.0
Beam height from base plate (mm):113
Polarization ratio and Direction:>100:1, Horizontal
Cooled method:Air cooled
Operating temperature (℃):20~35

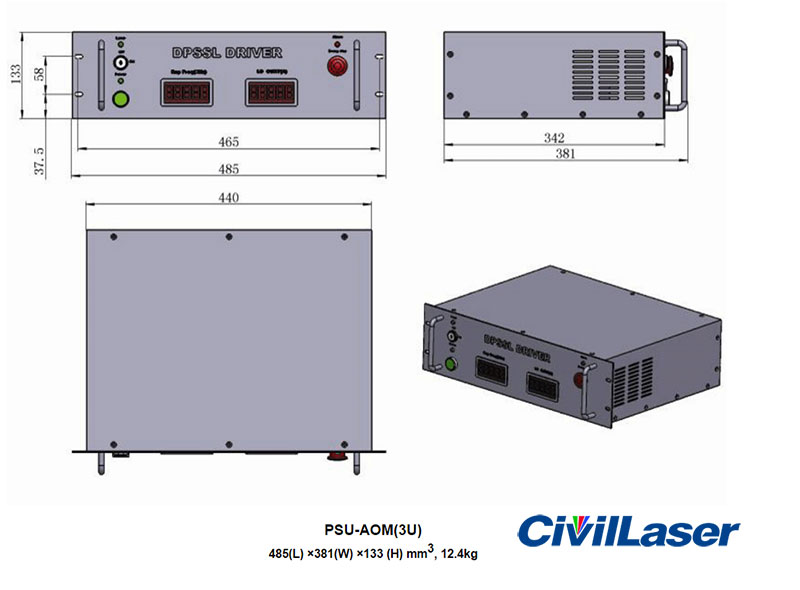

Power supply (220/110VAC):PSU-AOM(3U)
Expected lifetime (hours):5000
Warranty period:1 year
Features:
- Single pulse energy up to 150 uJ
- With 355 nm laser emitting only
- TEC cooling system
- Lightweight, compact design
- Controllable or Uncontrollable choosed
- Best reliability and lifetime
Applications:
- UV curing
- Micro-electronics
- CD carving
- Laser medical treatment
- Scientific experiment
