650nm 100mw Uniform red line laser positioning lamp Powell lens

650nm 100mw Uniform red line laser positioning lamp Powell lens

ESPECIFICACIONES:
Name: 650nm 100mw red line laser module adjustable output power and line width
Longitud de onda de salida: 650nm
Potencia de salida: 100mW (Can be customized)
Forma láser: Line
Tipo de láser: Visible laser, Rojo laser
Color exterior: Black
Tamaño: φ16*90mm
Current: ≤200mA
Tensión de funcionamiento: DC 2.8-5.2(V)
Spot pattern: uniform line
Optical lens: Powell lens
Fan angle: 10° ~90°(can be customized)
Line width: 0.4mm ~ 30mm (adjustable)
Operating Temperature: -10~50℃
Storage Temperature: -40℃~80℃
Working time: 24hours continuously working
Installation height: 0m - 10m can be used
Garantía: 12 Months Factory warranty
Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway

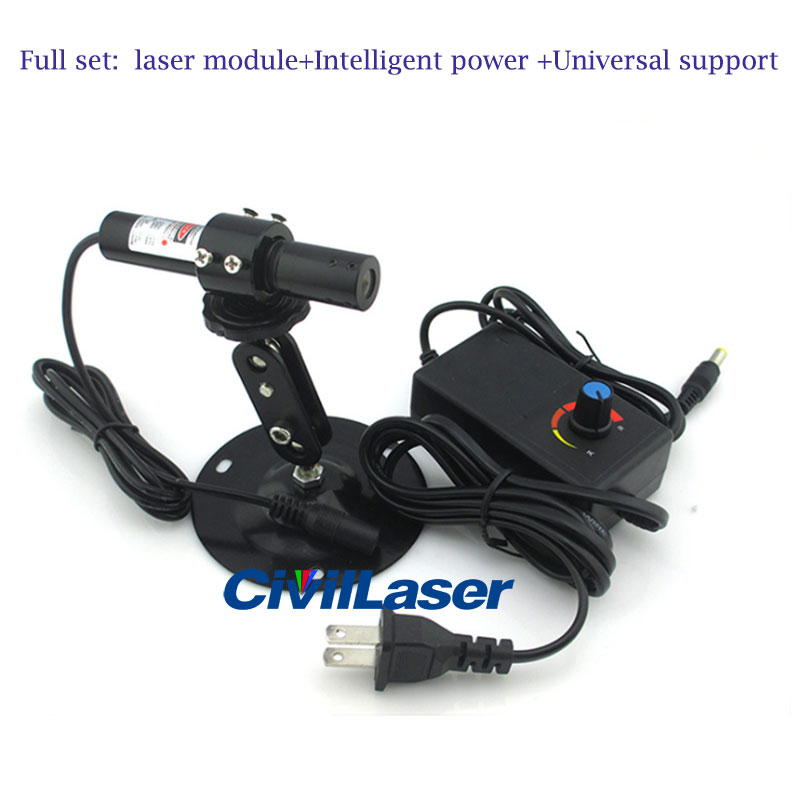

El paquete incluye:
1* Módulo láser rojo;
1* Laser stand;
1* Adjustable Power supply;

This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidation blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6, Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7, Tail power line using high temperature line, good toughness and corrosion resistance.
