355nm 3W 3000mW 18ns-20ns UV DPSS laser for marking

New Pirce | Nuevo precio (Click Here | Haga clic aquí )

Add to Cart | Añadir al carrito:


The 3W 355nm DPSS laser are used for marking. It's a Nd:YVO4 laser.



Details:
Wavelength (nm):355
Pulse Repetition Rate:10Hz ~ 150kHz

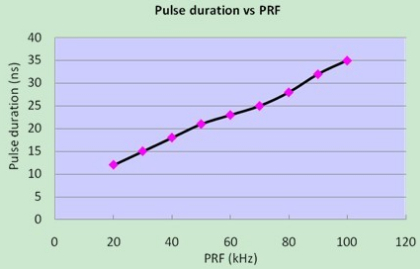

Pulse Width (ns) @30kHz:18

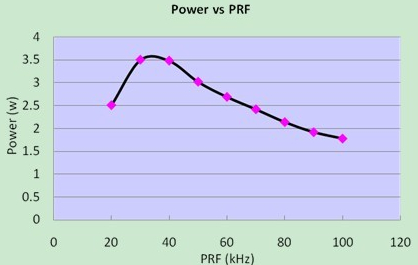

Average Power (W) @30kHz:1.0 2.0 3.0 4.0
Average Power Stability:< ±2% over 12 hours
Pulse Energy(μJ) @30kHz:33 66 100 133
Pulse-to-Pulse Stability:< 3% RMS
Spatial Mode:TEM00 (M2 < 1.2)
Beam Divergence, Full Angle:< 2mrad
1/e2 Beam Diameter:0.5mm
Beam Circularity:> 90%
Beam-Pointing Stability:< 50μrad
Polarization Direction:Horizontal
Polarization Ratio:100 : 1
Electric Supply:90 ~ 260 VAC
Cooling:Water-cooling
Ambient Temperature (℃):15 ~ 30
Storage Temperature (℃):-10 ~ 50
* We also offer customized lasers with higher power, different optimum frequency, or Nd:YAG medium.


Applications:
LED Wafer Scribing
Thin Film Etching
Glass Cutting/Marking
Ceramics Cutting/Scribing/Marking
Rapid Prototyping
FPCB Cutting
Scientific Research
