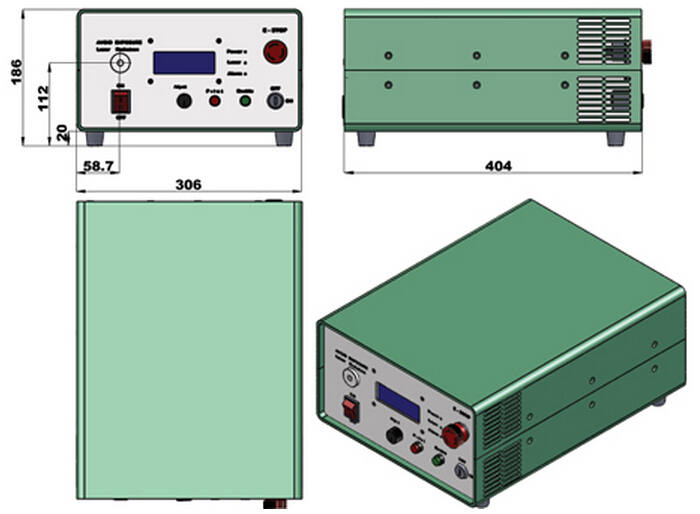

905nm Láser de fibra acopladaSource with 20W Output Power

Alto Voltaje Fiber Coupled Diode Laser System at 905nm laser Source.  Built-in visible pilot red laser for guide.



905nm Fiber Coupling Laser System has integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications. The list price is for 15W output power.





Especificaciones:



Available Wavelengths (nm): 905nm±10

Central Wavelengths Tolerance (nm):±10

Available Power (W): 20W (customized up to 50W )

Rojo Pilot Light (P): Light for Alignment

Fiber Core Diameter (µm):400

Fiber NA ( Numerical aperture ): 0.22 or better

Fiber Connector:SMA905

Fiber Length (m):2

Potencia de salida: 0-100%, adjustable by knob

Operating Mode: CW, TTL or Analog on request

LED Display:Diode current

LD Temperature Control Range ( ℃):15~30, adjustable by knob

Expected Lifetime (hours):10000

Input Power:90-264VAC, 50 to 60 Hz

Power Consumption (KVA):<0.5

Operating Temperature ( ℃):10~40

Weight (kg): <15

Cooling Way: by air

Warranty time: 1 year

Operation Voltage : 220 VAC (±10%) / 50 -60Hz
