High stability circle with cross effect red / Verde / blue laser wavelength and power can be customized

Advantage:

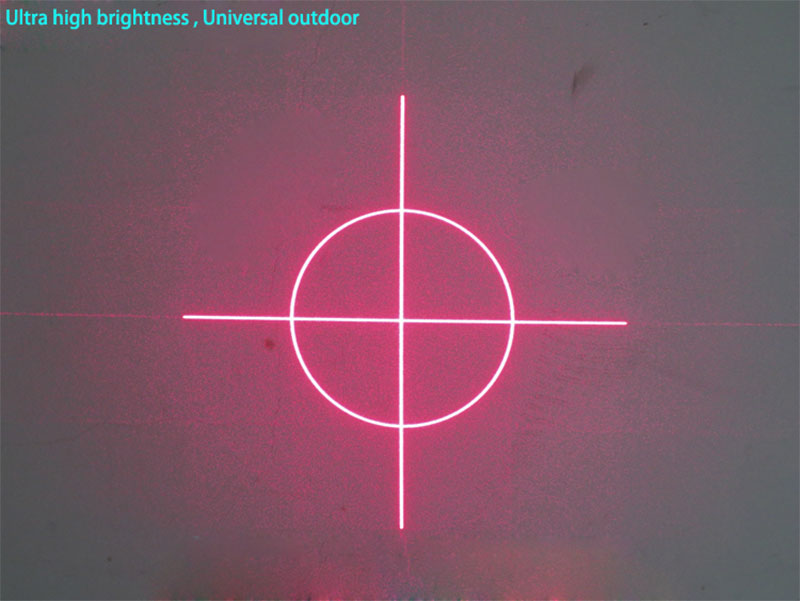

1, ultra high brightness indoor and outdoor general;
2, the light is bright and soft and not dazzling;
3, the line width is adjustable to meet different application requirements;
4, shell plating aluminum insulation paint can fully heat dissipation and shockproof and antistatic;
5, imported laser diode direct light-emitting stability is particularly high open all day 24 hours.

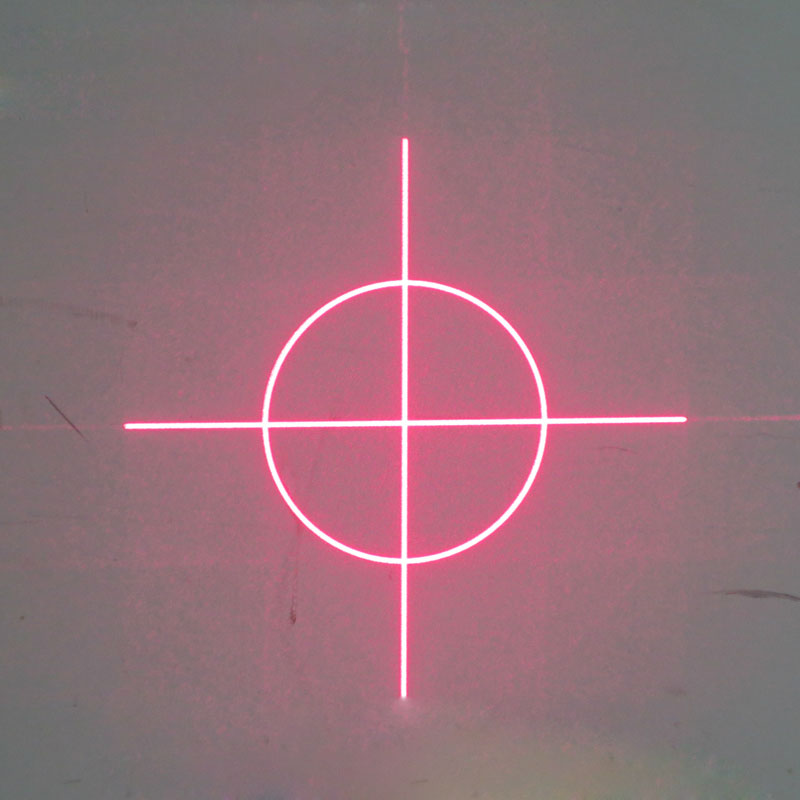

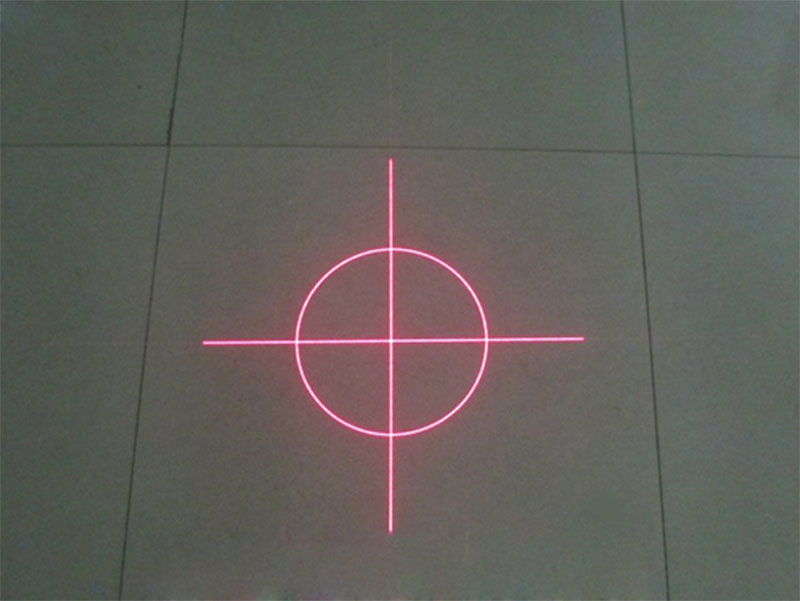

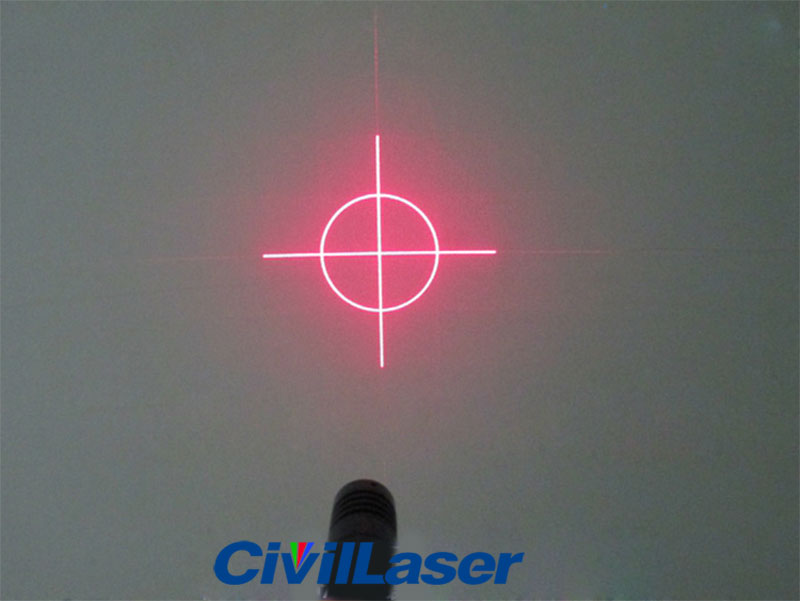

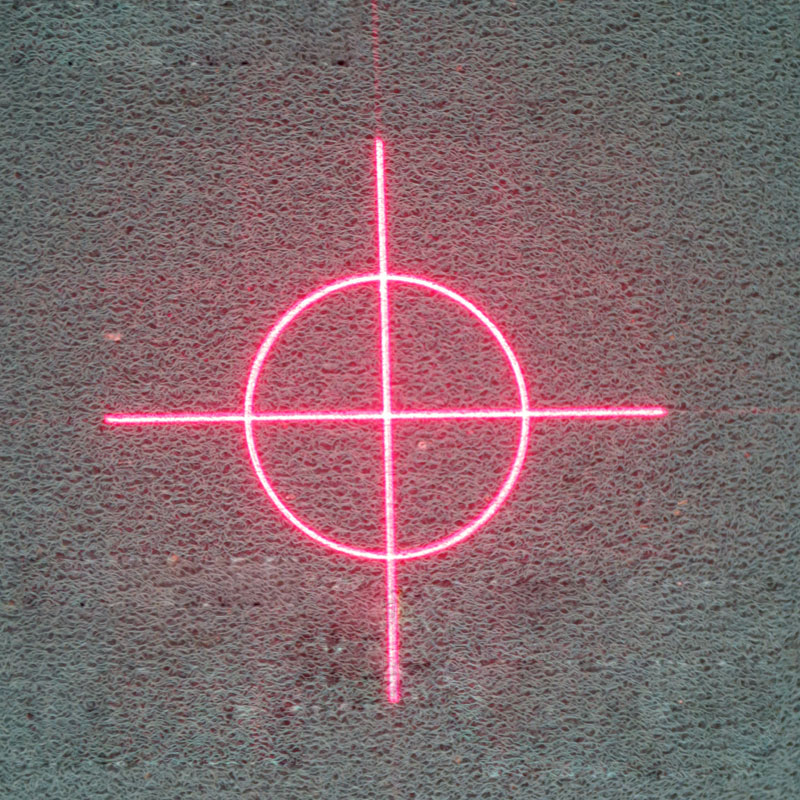

Circle angle: 10.5 degrees
Cross angle: 21 degrees

Installation height 0m~5m;
50cm distance: cross line length of 18.5cm, circle diameter of 9.15cm;
100cm distance: cross line length of 37cm, circle diameter of 18.3cm;
150cm distance: cross line length of 55.5cm, circle diameter of 27.45cm;

Especificaciones:
Longitud de onda de salida: 650nm/520nm/450nm (optional)
Core power: 100MW (optional)
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA

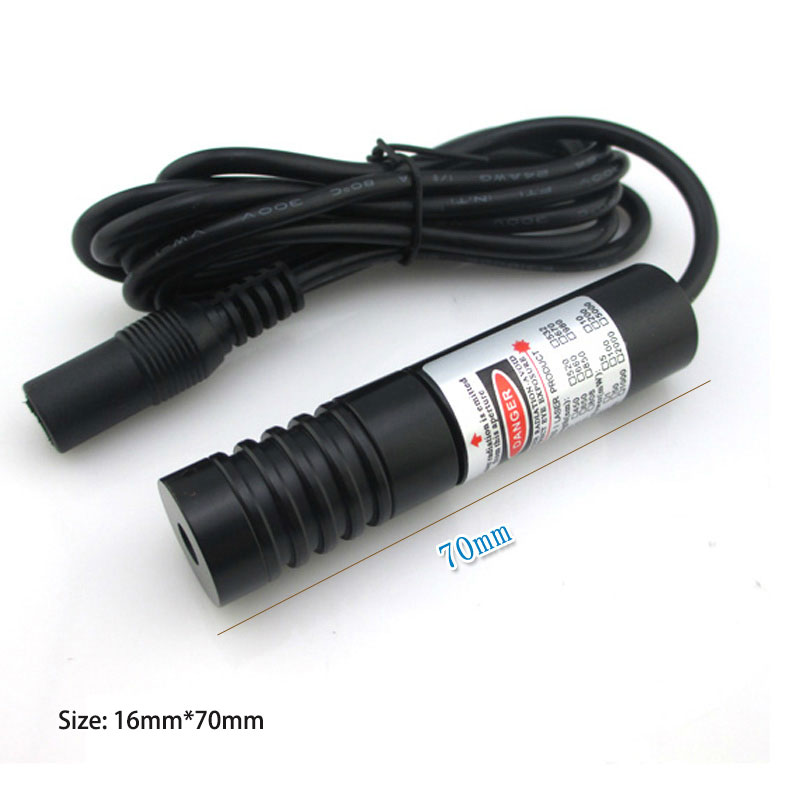

Dimensions: 16*70mm (customizable)
Optical lens: Grating film  (German imports)
