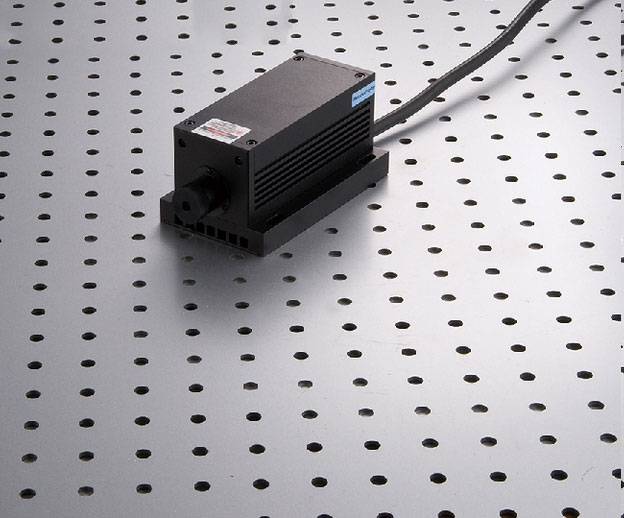

1064nm 500mw~1500mw Passively Q-switched laser  pulsed laser -- For Marking lasers



[Features]
1. Passively Q-switched;
2. Repetition frequency can be adjusted;


[Especificaciones]
Model No.: LSR1064HX-Q
Longitud de onda: 1064nm
Spatial Mode: TEM00
Average output power: 500~1500mw
Single Pulse energy: 80-200uJ
Pulse Width: 5~50ns
Peak Power: 1KW~10KW
Repeat Rate: 10Hz~50kHz
Modulation Signal: 0~50khz
Beam Spot Shape: Circular, aspect ratio<1.1:1
Pointing Stability: <0.05mrad
Beam Diameter(1/e2): <1.5mm
Beam Divergence: < 1.5mrad
Power Stability: <±3% per 2 hrs
Beam Height: 39mm
Estabilizador de temperatura: TEC
Tiempo de calentamiento: <5minutes
Beam Quality (M2): <2
Optimum Operating Temperature: 20~30°C
Storage Temperature: 10~50°C
Life Time: 10,000 hours
Laser Head Dimensions: 167(L)x77(W)x70(H)mm3
Fuente de alimentación: Standard type power supply / Lab Adjustable power supply (Escoger)
Garantía: 1 Year
