200mW 660nm Rojo Laser module with TTL modulation 12V dot/line/crosshair

Such products can be widely used in all kinds of stage laser light, with TTL modulation, can work long hours, the real industrial grade laser. Can provide customers with optoelectronic solutions, designed to meet customer needs of the laser module.

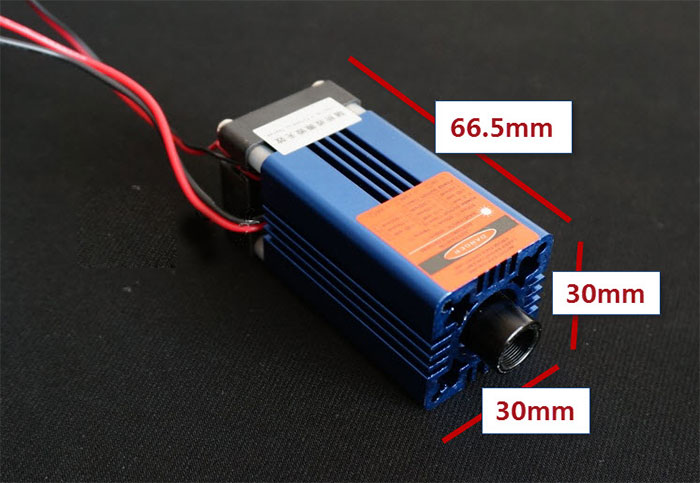

Tamaño del anfitrión:  L66.5mm* W30mm* H30mm

Circuit size:  L72mm* W35.5mm* H20mm

Longitud de onda de salida: 658 NM

Potencia de salida: 100mW/200mW (optional)

Cooling mode: aluminum cooling

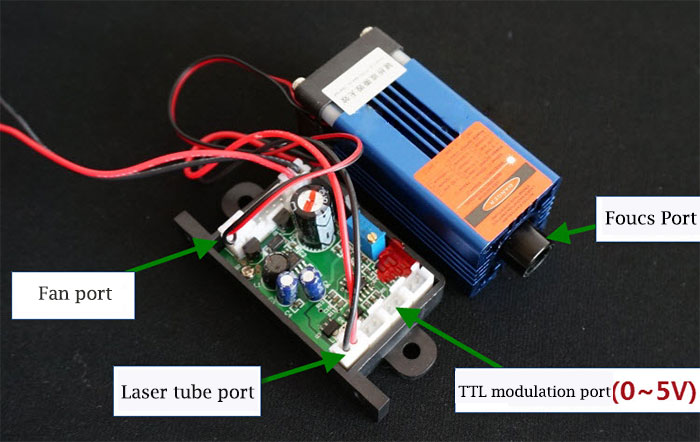

Modulation frequency: Can modulate

Job characteristics: continuous work

Surface treatment: Azul

Shell material: Aluminum

Circuit control: 12V buck constant current

Reverse protection: with automatic recognition of positive and negative poles

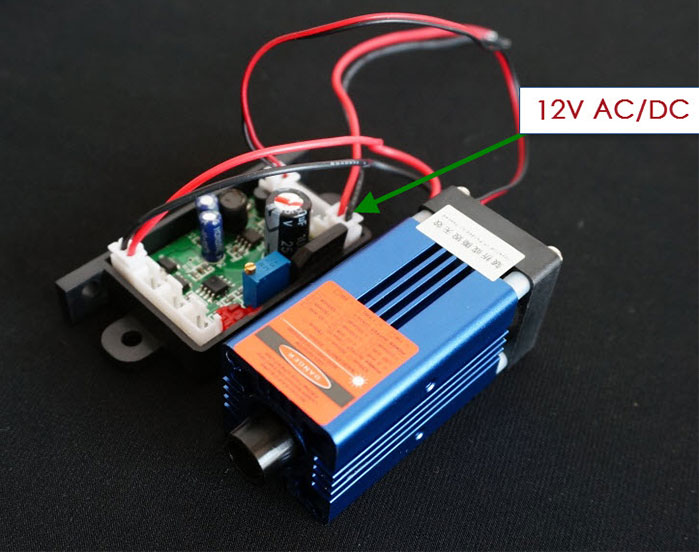

Working voltage: DC=12V

Working current: I<300mA

Preheating time: no

Working temperature: -10°C~ 40°C

Storage temperature: -10°C~ 40°C

Structure features: laser tube + lens + heat sink

Nota: power supply out of the housing
