Circle laser module Rojo perfect circle laser beam adjustable thickness

Circle laser module Rojo perfect circle laser beam adjustable thickness

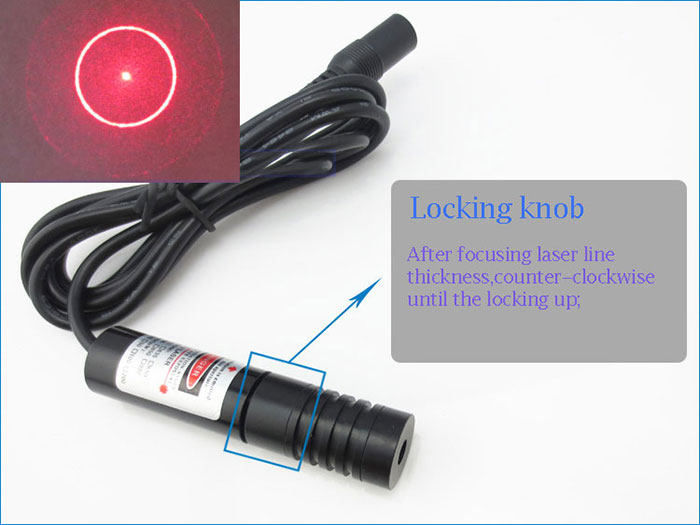

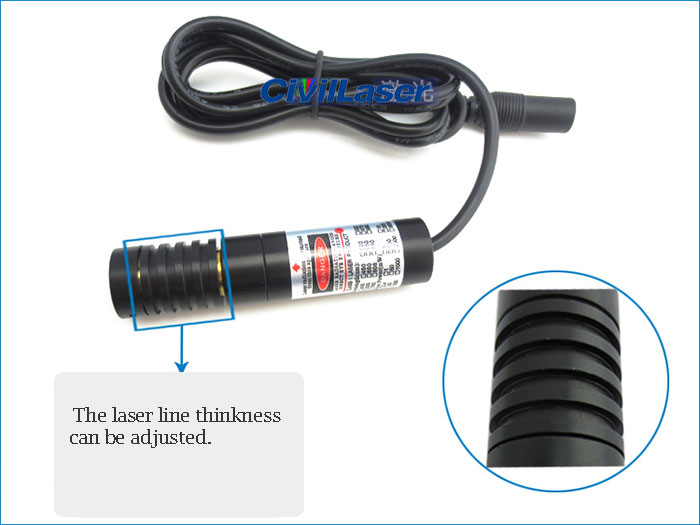

1. Adjustable the laser line thickness.

2. Pattern: Perfect circle with a center dot.





nombre del producto: Rojo circle laser module

output wavelength: 650nm

Potencia de salida: 100mw (Accept customization)

Working voltage: DC 2.8V~5.2V

Operation Current: ≤150mA

Forma láser: Circle with a center dot

Spectral line width: Adjustable

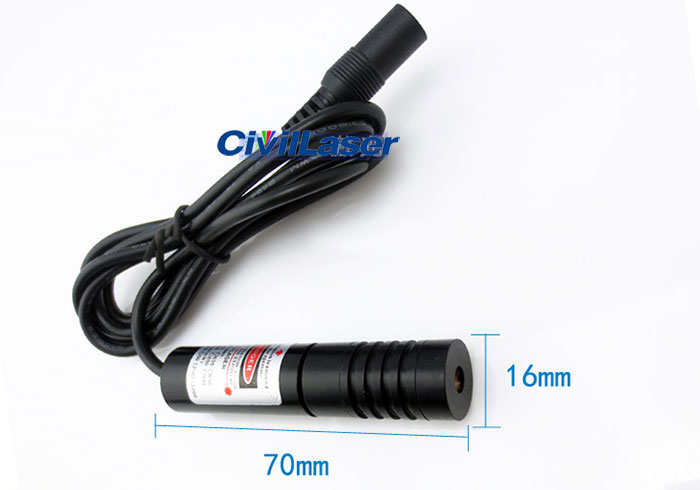

Tamaño: φ 16*70mm (Accept customization)

Working distance: 0~5 meters

Operation mode: Continuous Wave(CW)

Incentive mode: Electropumping Laser

Working medium: Láser semiconductor



Three lenses are optional:
The angle of the lens 2°, the diameter of the circle is 42mm at 1 meters;
The angle of the lens 3°, the diameter of the circle is 60mm at 1 meters;
The angle of the lens 3.5°, the diameter of the circle is 62mm at 1 meters;

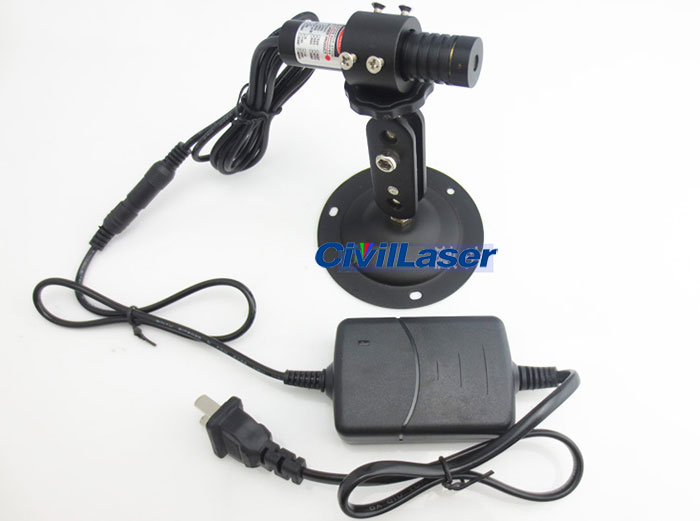

1 x Rojo circle laser module

1 x Power supply

1 x Laser Holder



Note：This product will have multiple circles at high output power, but it can work normally when the power is low. This is a normal phenomenon.
