Láser de fibra acoplada 450nm 70mw interface SMA905,FC/PC or FC/APC

Láser de fibra acoplada 450nm 70mw interface SMA905,FC/PC or FC/APC



It's a Pluggable fiber , easy to replace.

If you need other output power or custom needs, please contact us.





1. The length of fiber can be customized.

2. You can change the direction of the laser beam, it can be applied to a variety of occasions venue.

3. Laser spot is circular, uniform illumination.

4. The laser fiber can be installed at the exit of the collimator lens care area to adjust the size, large or small.



1. It's made-to-order products, we need 1~3 weeks to produce it.

2. The output power/fiber diameter/fiber length can be customized.

3. The marked output power is before coupling, coupling efficiency is about 80%~90%.



nombre del producto: 450nm fiber coupled laser with Power Supply

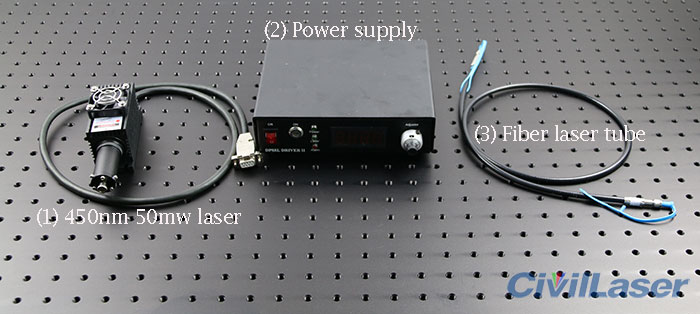

Product Include: Laser system with fiber + Controller + Power source

Longitud de onda de salida: 450±5nm

Potencia de salida: 70mW

Operating Mode: CW or Modulation
Power Stability: <3% per 4 hrs
Estabilizador de temperatura: TEC
Tiempo de calentamiento: <1 minute
MTTF(mean time to failure): 10,000 hrs
Fiber Type: Multi-mode fiber/MM fiber
Diámetro del núcleo de fibra: 100μm/200μm/400μm/600μm/800μm/1000μm (Escoger)
Apertura numérica de fibra:0.22NA(100μm~400μm)/0.37NA(600μm~1000μm)
Fiber Interface(Output): FC/PC, FC/APC, SMA905 (Escoger)
Longitud de la fibra: 1m/2m/3m (Escoger)
Dimensión del cabezal láser: Near 100(L)*34(W)*45(H)mm3 (Haga clic aquí para encontrar detalles)
Fuente de alimentación: Standard type power supply / Lab Adjustable power supply (Escoger)
Fuente de alimentación 1:Standard Power Supply (Escoger) (Haga clic aquí para encontrar detalles)
Fuente de alimentación 2: Lab Adjustable Power Supply (Escoger) (Haga clic aquí para encontrar detalles)
Modulación: 0~30kHz Analog or TTL
Garantía: 1 Year



Thermal printing

Material Inspection

Scanning Biochemistry

Lidar



1 x 450nm fiber laser

1 x Laser power supply
