Powell lens Verde laser line 520nm 50mW 85mW uniform line laser positioning
ESPECIFICACIONES:
Name: 520nm Módulo láser verde Line adjustable output power and line width
Longitud de onda de salida: 520nm
Potencia de salida: 50mW / 85mW (Escoger)
Forma láser: Line
Tipo de láser: Visible laser, Verde laser
Color exterior: Black

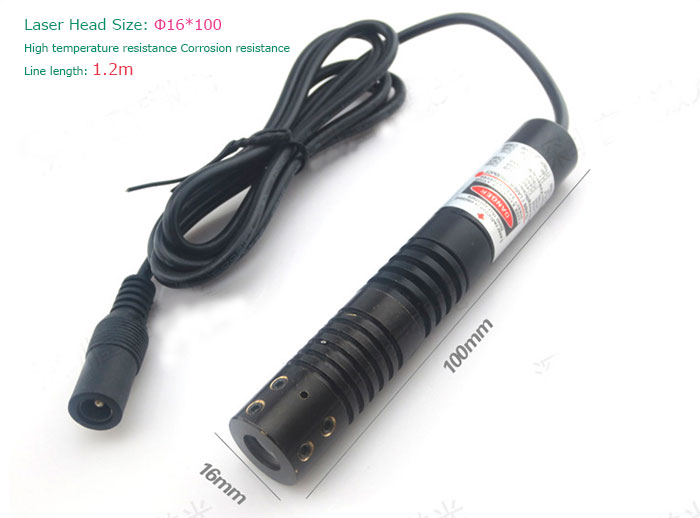

Tamaño: φ16*100mm
Current: ≤400mA
Tensión de funcionamiento: DC 1-3V

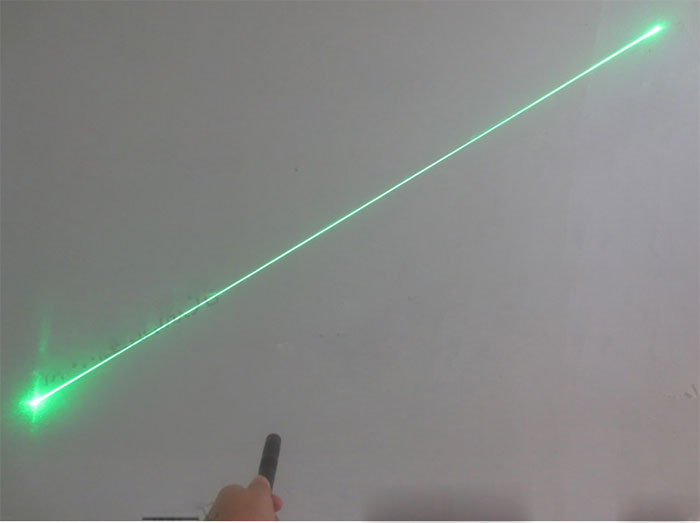

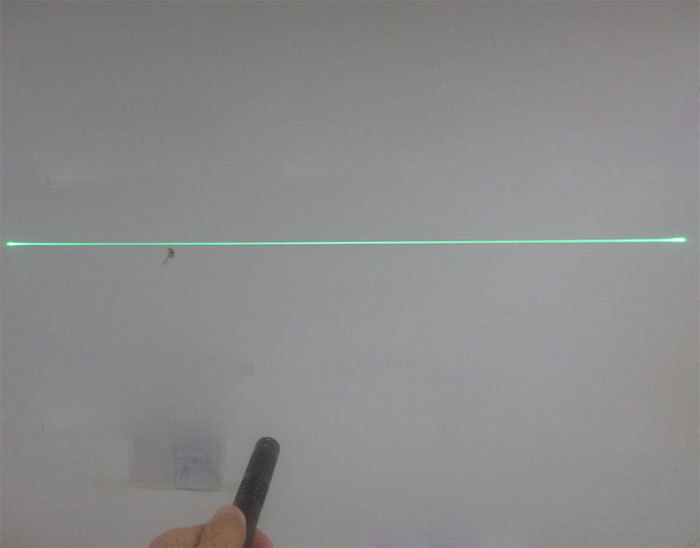

Spot pattern: uniform line

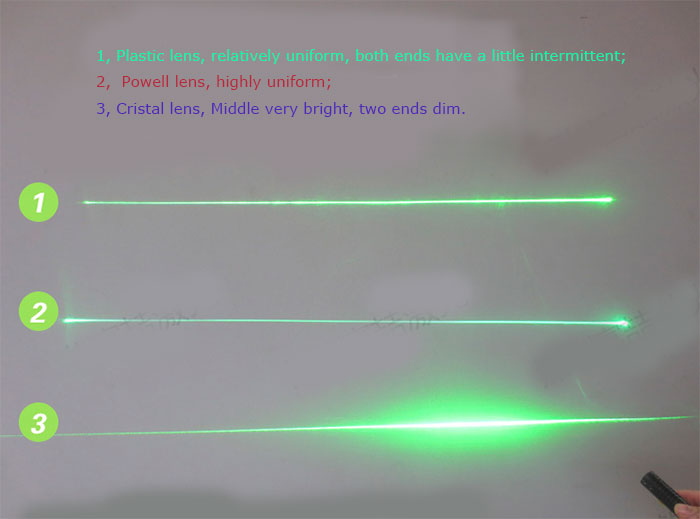

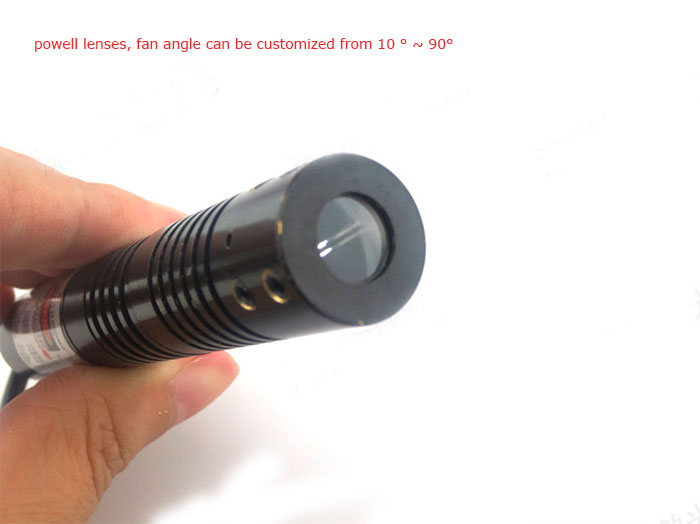

Optical lens: Powell lens
Fan angle: 10° ~90°(can be customized)

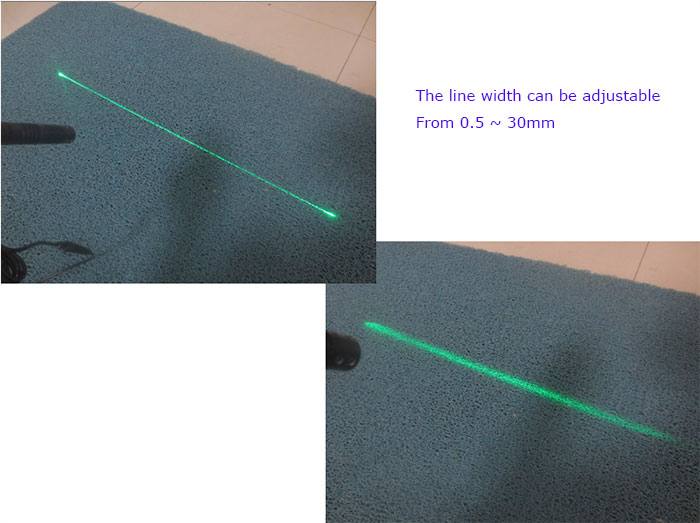

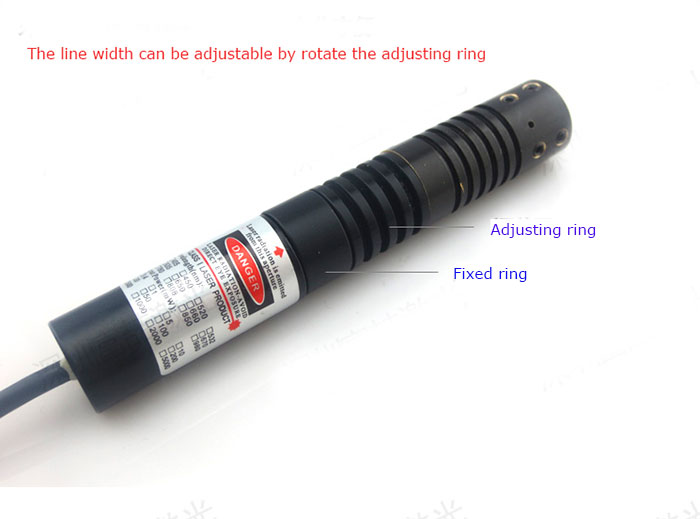

Line width: 0.5mm ~ 30mm (adjustable)
Operating Temperature: -10--50℃
Storage Temperature: -40℃~80℃

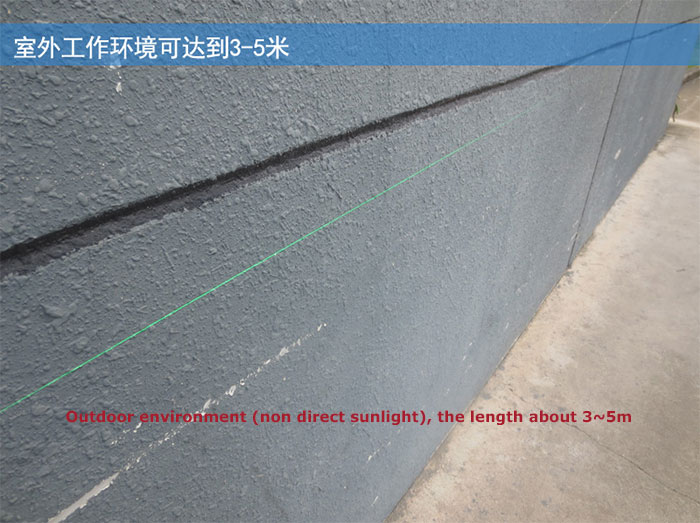

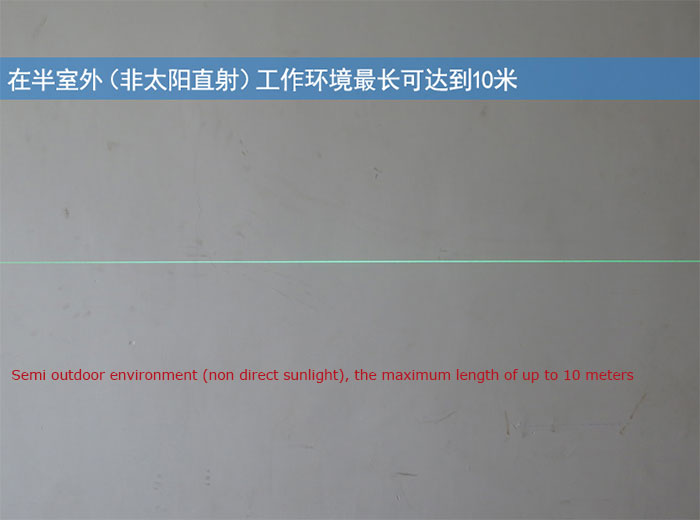

Line Length: 1.2m (can be customized)
Garantía: 12 Months Factory warranty
Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway
El paquete incluye:
1* Módulo láser verde;
1* Laser stand;
1* Adjustable Power supply;
This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidation blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6, Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7, Tail power line using high temperature line, good toughness and corrosion resistance.

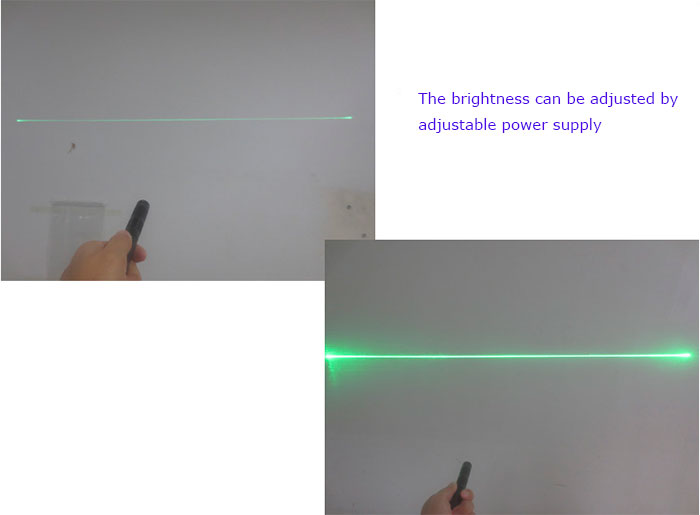

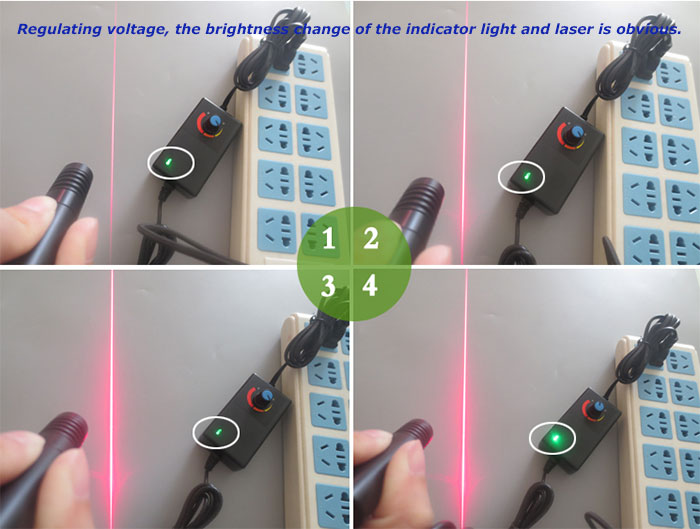

Verde line laser module and the output power is adjustalbe
