1053nm dpss laser 100mw~500mw output power adjustable

[SPECIFICATIONS]
Longitud de onda: 1053nm
Potencia de salida: 100mw/200mw/500mw(choose)
Working Mode: CW
Transverse: TEM00
Sepctral Linewidth: <0.1nm
Polarization: Line polarization
Polarizatino Ratio: >8:1
Beam Quality(M2 factor): <1.5
Beam Divergence(full angle,mrad): 1.5±0.2
Beam diameter at Dperture: 2.5±0.2mm
Beam Roundness: >90%
Power stability(RMS): <5%@4hours
Aperture Position: 50mm
Dimensions of Laser Head: 205mm L x 60mm W + 60mm H
Integrated Driver Model Dimensions: 159mm + 144mm + 83mm
External Modulación: 5V TTL / 5V Analogue
Modulation Repetition: 30KHz TTL / 10KHz Analoggue
Cooling System: TEC
Warm-up Time: <15 minutes
Operation Temperature: 18℃ ~ 30℃
Expected Lifetime: > 10,000 hours
Warranty Time: 1 Year

Nota:
This size is for reference only. The size of the latest model may changed.
If there is any requirement for size, please contact us get latest size.

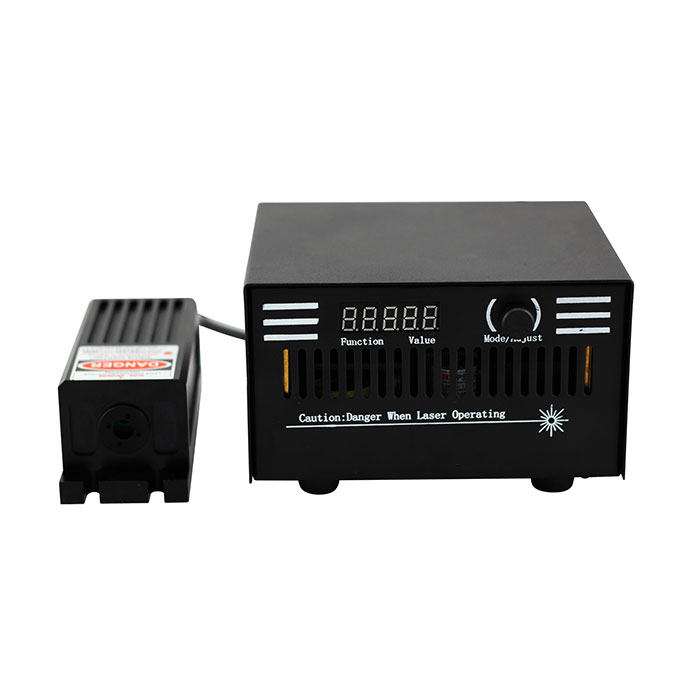

1053nm dpss laser

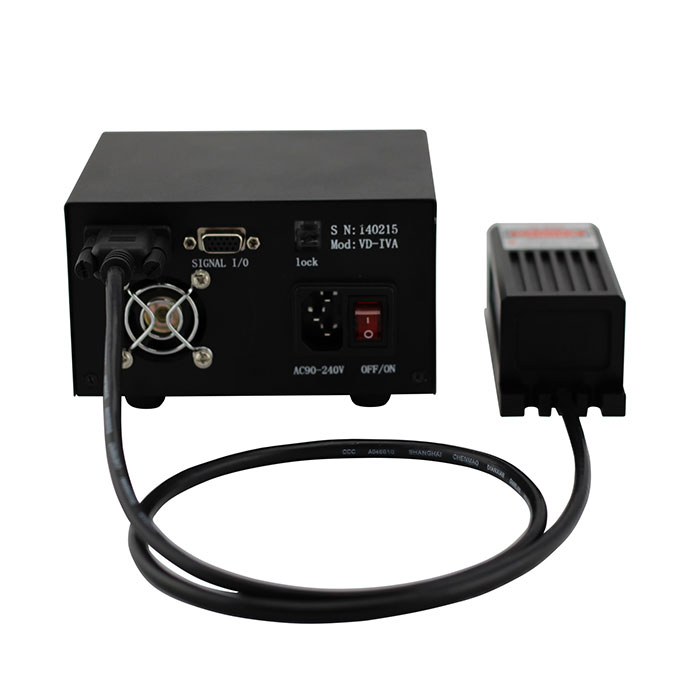

1053nm dpss laser
