OSRAM PL450B 440nm/450nm 80mW blue laser diode module TO-38

New Pirce | Nuevo precio (Click Here | Haga clic aquí )

Add to Cart | Añadir al carrito:

OSRAM PL450B 440nm/450nm 80mW blue laser diode module TO-38

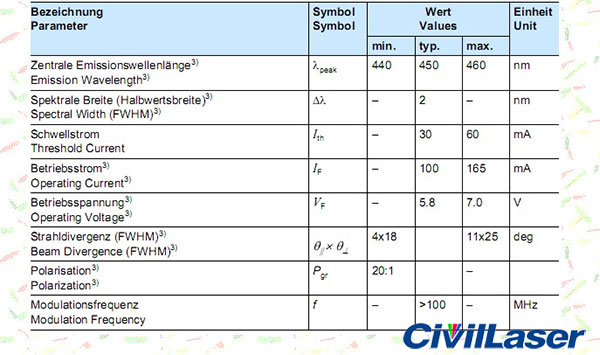

Product name: 450nm 80mW blue laser diode
Longitud de onda de salida: 450nm
Potencia de salida: 80mW
Place of production: Germany
Spectral Width: 2nm
Operating Current: 100mA~165mA
Threshold Current: 30mA~60mA

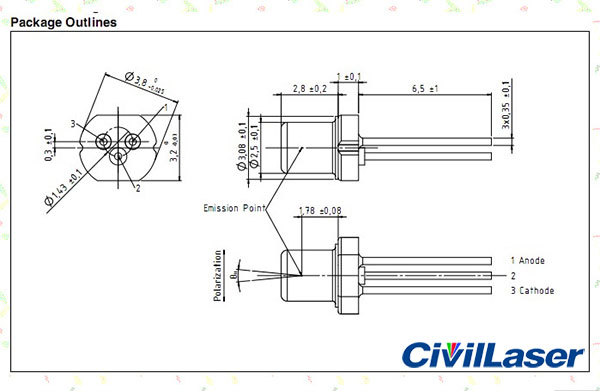

Package Type: T0-38
Tensión de funcionamiento: 5.8V~7.0V
Operating Temperature: 10℃~70℃
Storage Temperature: -40℃~85℃
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
This is a special product, before shipment to ensure the good quality and brand new, once sold, do not be warranty and refund!
