635/638nm HL63133DG 170mW Single-Mode Orange red laser diode

635/638nm HL63133DG 170mW Single-Mode Orange red laser diode

It's single-mode laser diode, so it's  expensive than multi-mode laser diode.
The beam spot is small.
Suitable for long distance illumination!

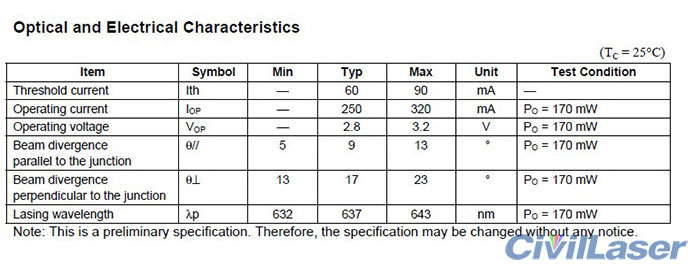

[Especificaciones]
Product name: Hitachi 638nm laser diode
Longitud de onda de salida: 637nm(635nm~638nm)
Potencia de salida: 170mw
Operating Current: 250mA~350mA
Threshold Current: 60mA
Tensión de funcionamiento: DC 2.8V~3.2V
Package Type: TO-18 ( Φ5.6mm)
Operating Temperature: -10℃~40℃
Storage Temperature: -40℃~85℃
Place of production: Japan
Working life: >10,000 hours


[Package includes]
1 x 637nm laser diode



Nota:
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.


This is a special product, before shipment to ensure the good quality and brand new, once sold, do not be warranty and refund!
