Nichia NUBM36 Projection Fuente de luz 455nm 20*5.25W Integrated 105W Bank TO5 Package

Nichia NUBM36 Projection Fuente de luz 455nm 20*5.25W Integrated 105W Bank TO5 Package

This model is mainly used for the display light source of laser color projectors.

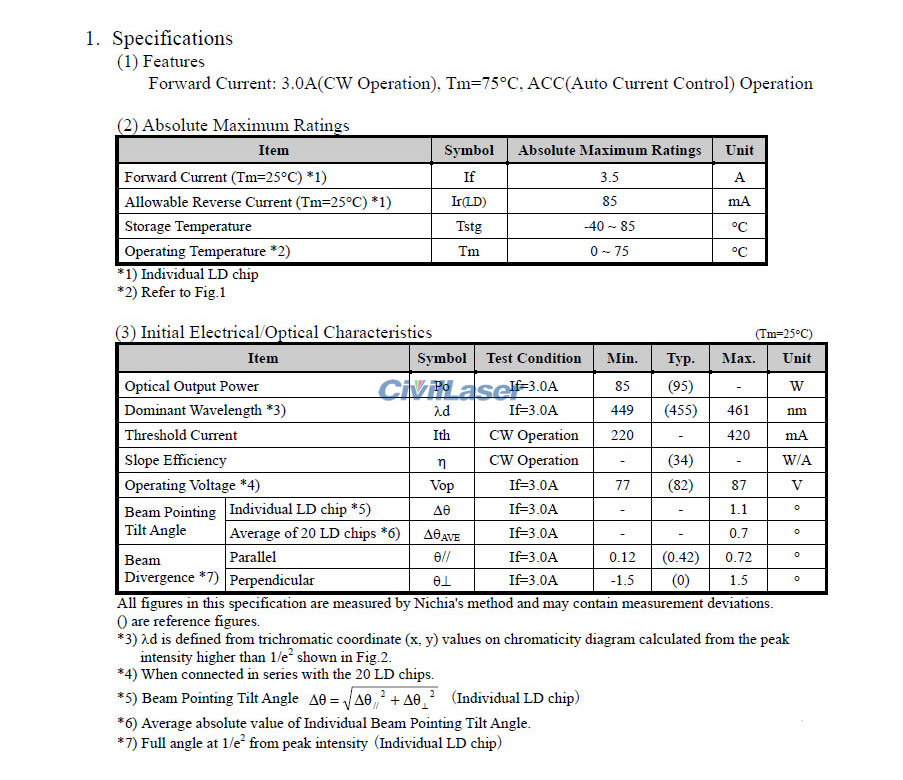

[Specification]
nombre del producto: Diodo láser Bank
Model: NUBM36
Longitud de onda: 455nm
Potencia de salida: CW=105W
Pulse Power: Single >9W
Operating Current: <3.5A
Tensión de funcionamiento: 82V
Operating Temperature: 0 ~ +75℃
Storage Temperature: -40 ~ +85℃
Package: TO5 (Φ9mm)
Working Life: > 20000 hours
