532nm 1~100uJ Adjustable Active Q-switched Laser Acousto-Optics Q-switched Laser System

All solid state acousto-optic Q-switched laser at 532 nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in material processing, measure, scientific research and so on.

[Specification]

Parameters Value
Central wavelength (nm) 532±1
Operating mode Acousto-Optics Q-switched
Single pulse energy (µJ) 1~100 (100μJ @1kHz; 50μJ @5kHz)
Rep. rate (kHz) 0.1~50
Pulse duration Typically5~10ns @<10kHz, varies from power and repetition.
Average power (mW) Average power (mW)= Single pulse energy (μJ)* Rep. rate(kHz)
Power Stability (rms,over 4 hours) ~5%
Transverse mode Near TEM00
M² factor <1.5
Beam Diameter at the aperture 1/e² (mm) ~1.2 (optional) ~0.3 (Default)
Beam divergence, full angle (mrad) <1.5 (optional) <5.0
Polarization ratio >100:1 Vertical l±5 degree
Warm-up Time (minutes) <10
Beam height from base plate (mm) Near 25
Operating temperature(℃) 10~35

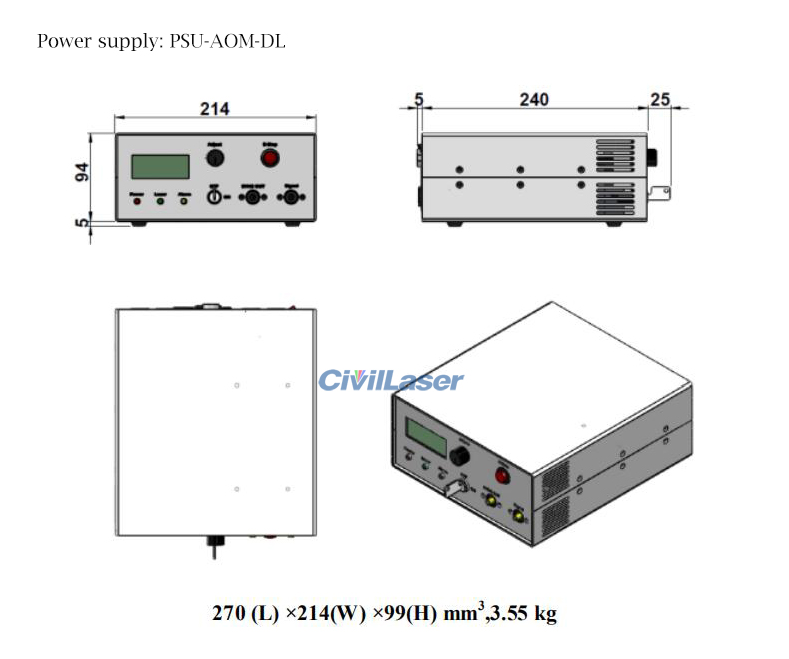

Power supply (90-264VAC) PSU-AOM-DL
Expected lifetime (hours) 10000
Warranty 1 year
Note: The laser head needs to be used on a heat sink with good heat dissipation.

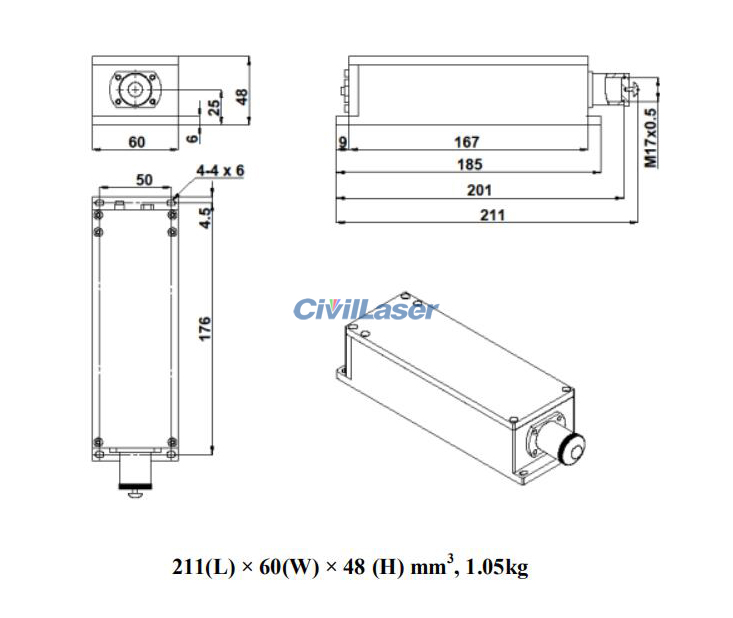

Q-switching laser

Q-switching laser
