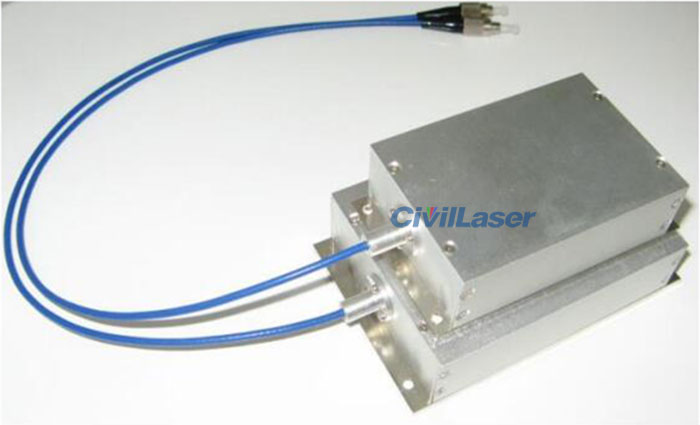

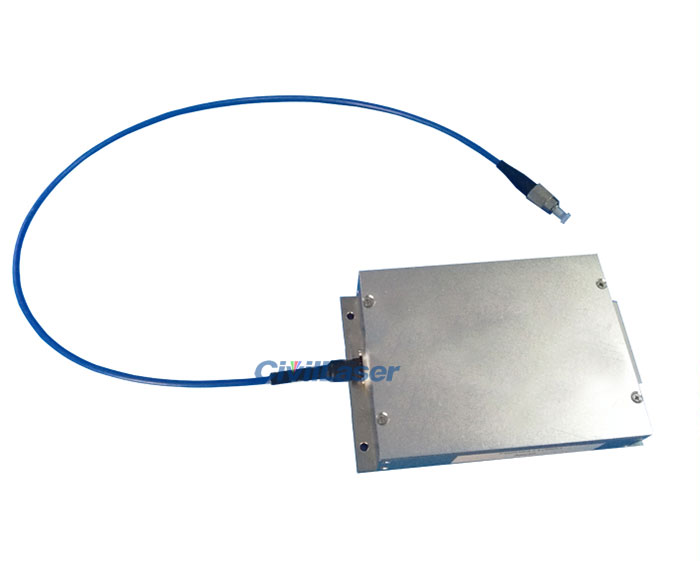

Alto Voltaje Fuente láser 808nm 20W 105μm*7 Fibers Combining Module

Alto Voltaje Fuente láser 808nm 20W 105μm*7 Fibers Combining Module

The fiber beam combining module is a multi-tube core combined beam semiconductor laser. Large contact area, low current package form, more stable performance, more convenient to use. The optical fiber parameters can be customized, and the built-in cooling chip will make the device performance more reliable and stable.

[Applications]
Laser night vision
Projection display
Laser Medical
Material testing

[Especificaciones]
nombre del producto: Láser de fibra acoplada
Longitud de onda: 808±5(nm)
Potencia de salida: 20W
Spectral Width: <5nm
Temperature Coefficient: ~0.3nm/℃
Diámetro del núcleo de fibra: 400μm (105μm*7 Fibers Combining)
Numerical Aperture: 0.22
Fiber Connecter: FC/PC
Operating Current: <3.5A
Tensión de funcionamiento: 14~15V
Power Conversion Efficiency: 35~50%
Operating Temperature: 10~30℃
Storage Temperature: -20~60℃
Operating Humidity: <60%
Lifetime: >10000 hours
