532nm 100mW~300mW 0.1nm Narrow Linewidth Raman Laser System

New Pirce | Nuevo precio (Click Here | Haga clic aquí )

Por favor, elija:



Add to Cart | Añadir al carrito:


532nm 100mW~300mW 0.1nm Narrow Linewidth Raman Laser System

[Tiempo de espera]
532nm 100mW Raman Laser: 3~4 weeks
532nm 200mW Raman Laser: About 4 weeks
532nm 300mW Raman Laser: 5~6 weeks

[Features]
1. Spectral linewidth <0.1nm
2. High power stability: <3%

[Application]
2. Raman spectroscopy
2. Sensing

[Especificaciones]
nombre del producto: 532nm Narrow Linewidth Laser
Longitud de onda: 532nm
Potencia de salida: 100mW / 200mW / 300mW (Escoger)
Spectral Linewidth:<0.1nm

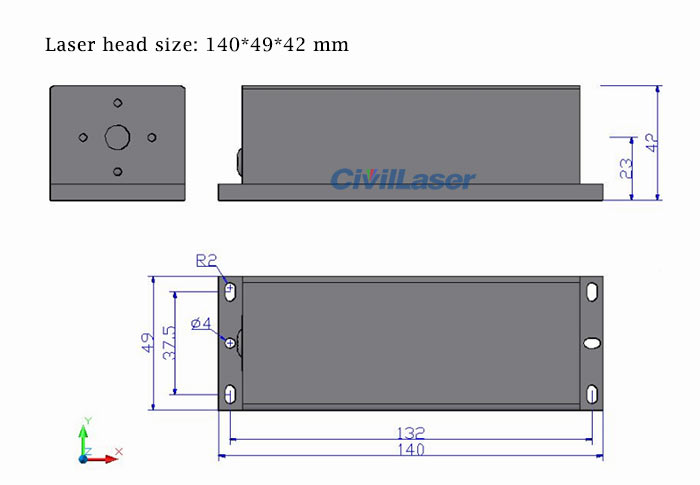

Beam Tamaño: Near 2 mm
Beam Divergence Angle: Near 0.5 mrad
Operating Temperature: 0°C-40°C
Storage Temperature: -40°C-85°C

Parameter Work condition Symbol Min. Typical Value Max. Unit
Output Power APC mode PO     100/200/300 mW
Spot Mode       TEM00
Beam Diameter Po , 1/e2     2.0   mm
Beam Divergence Angle Po , 1/e2     0.5   mrad
Spot Roundness     90     %
Power Stability 2hrs Ps   3 5 %

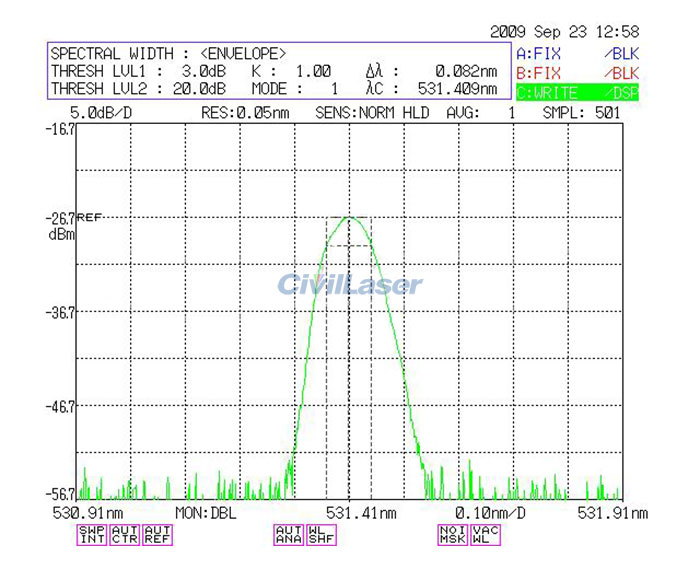

Spectral Linewidth FWHM PO     <0.1 nm
Spectral Stability λs PO     <0.1 nm
Central Wavelength @PO λc 531.5 532 532.5 nm
Service Life @PO MTBF 5000     Hrs
