1064nm 500mW IR Raman Fiber Laser 0.2nm Narrow Linewidth Lab Laser

New Pirce | Nuevo precio (Click Here | Haga clic aquí )

Add to Cart | Añadir al carrito:


1064nm 500mW IR Raman Fiber Laser 0.2nm Narrow Linewidth Lab Laser

Note:
This is a custom product, if you need other output power, or have special requirements, please contact us.

[Tiempo de espera]
1064nm 500mW Raman Laser: 3~4 weeks

[Features]
1. Spectral linewidth: <0.2nm


[Application]
2. Raman spectroscopy
2. Sensing

[Specification]
nombre del producto: Narrow linewidth raman laser
Longitud de onda: 1064nm
Potencia de salida: 500mW (@ Fiber output side, and 0~max power adjustable)
Optical Fiber: 100μm / NA 0.22 / SMA / 1 Meter
Operating Temperature: 0°C~45°C
Storage Temperature:  -40°C~85°C
Modulación: 0~10KHz TTL


Parameter Work condition Symbol Min. Typical Value Max. Unit
Output Power APC mode PO     500 mW
Power Stability 2hrs Ps   1 3 %
Noise RMS(10Hz-100MHz) N     1 %
Spectral Linewidth FWHM PO     0.2 nm
Spectral Drift @PO λd   0.01   nm/°C
Service Life @PO MTBF 10000     Hrs

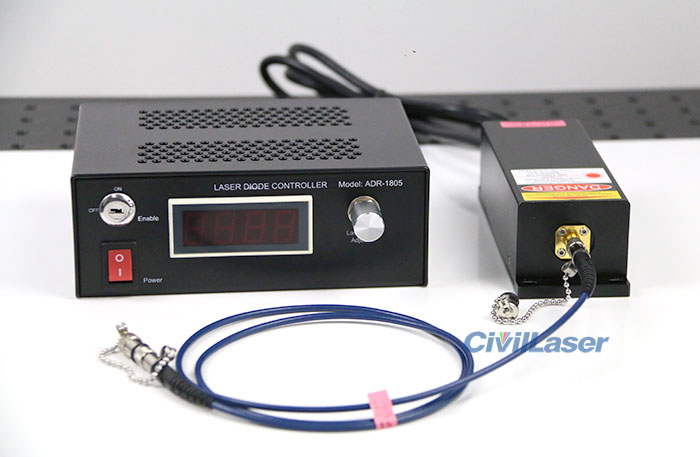

1064nm narrow linewidth raman laser

1064nm narrow linewidth raman laser

1064nm narrow linewidth raman laser

1064nm narrow linewidth raman laser
