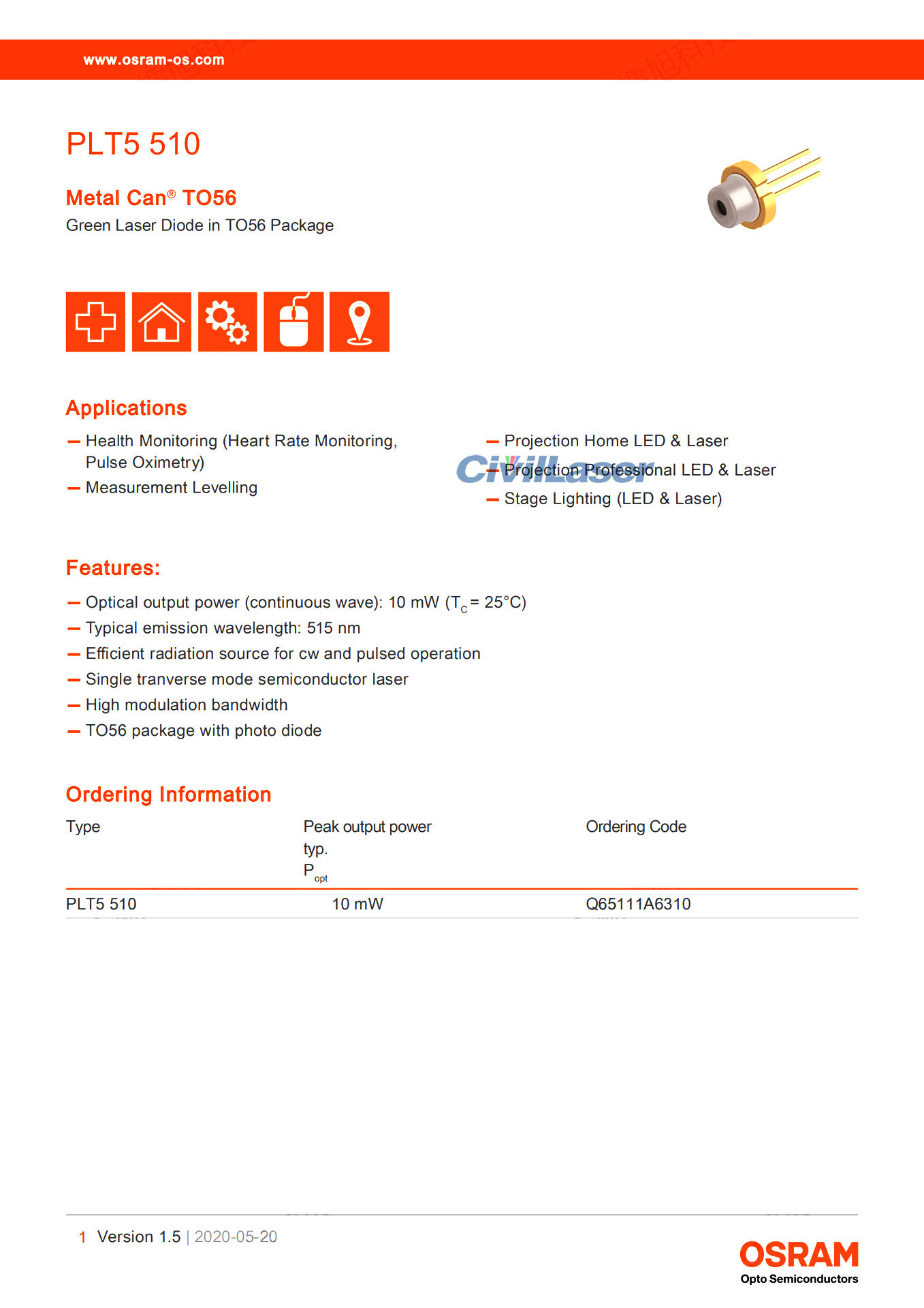

Osram PLT5 510 515nm 10mW Diodo láser verde TO56 Package

New Pirce | Nuevo precio (Click Here | Haga clic aquí )

Add to Cart | Añadir al carrito:


Osram PLT5 510 515nm 10mW Diodo láser verde TO56 Package

[Features]
1. Optical output power (continuous wave): 10 mW (Tcase = 25 °C)
2. Typical emission wavelength: 515 nm
3. Efficient radiation source for cw and pulsed operation
4. Single transverse mode semiconductor laser
5. High modulation bandwidth

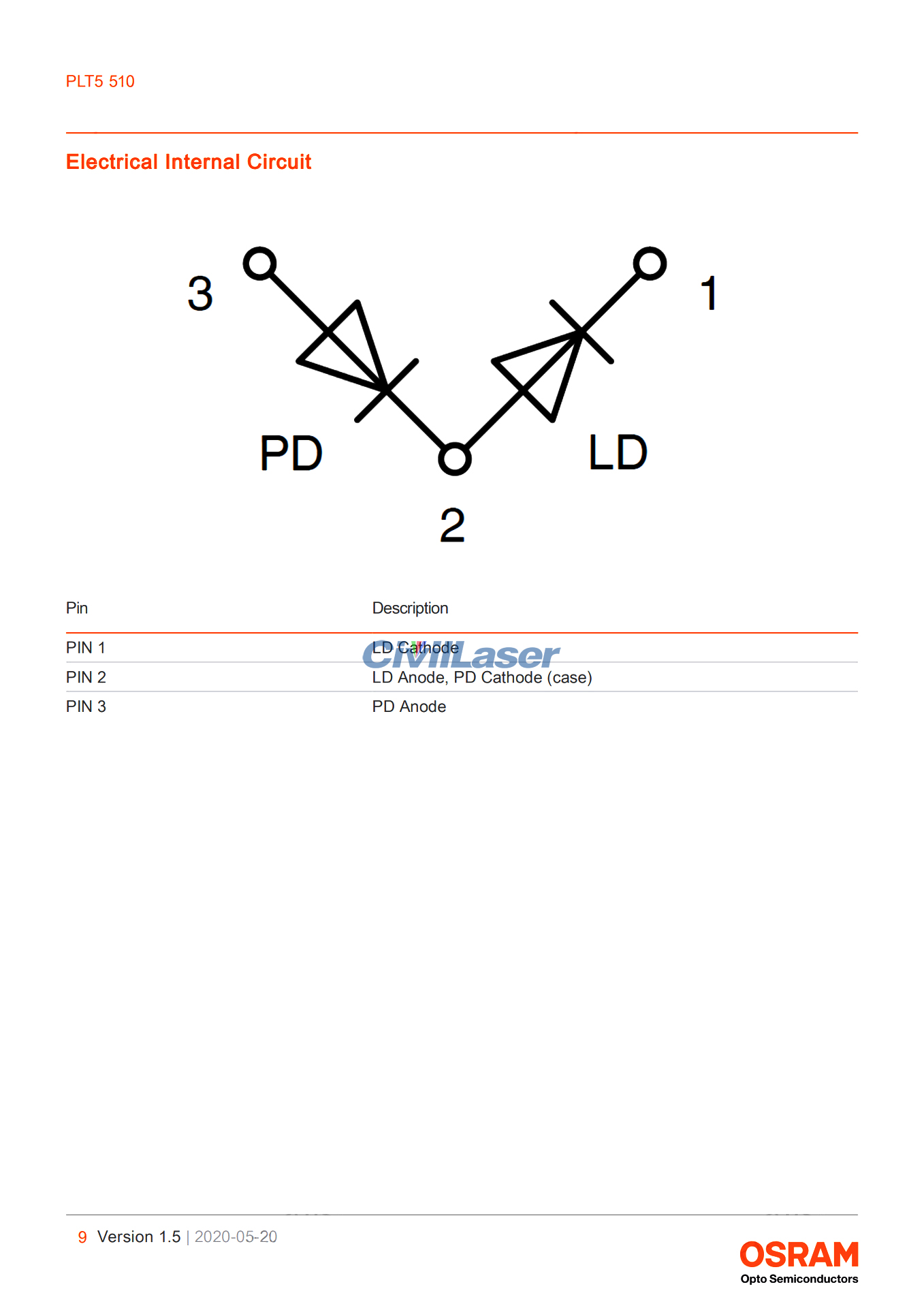

6. TO56 package with photo diode

[Applications]
1. Health Monitoring (Heart Rate Monitoring, Pulse Oximetry)
2. Measurement Levelling
3. Projection Home LED & Laser
4. Projection Professional LED & Laser
5. Stage Lighting (LED & Laser)

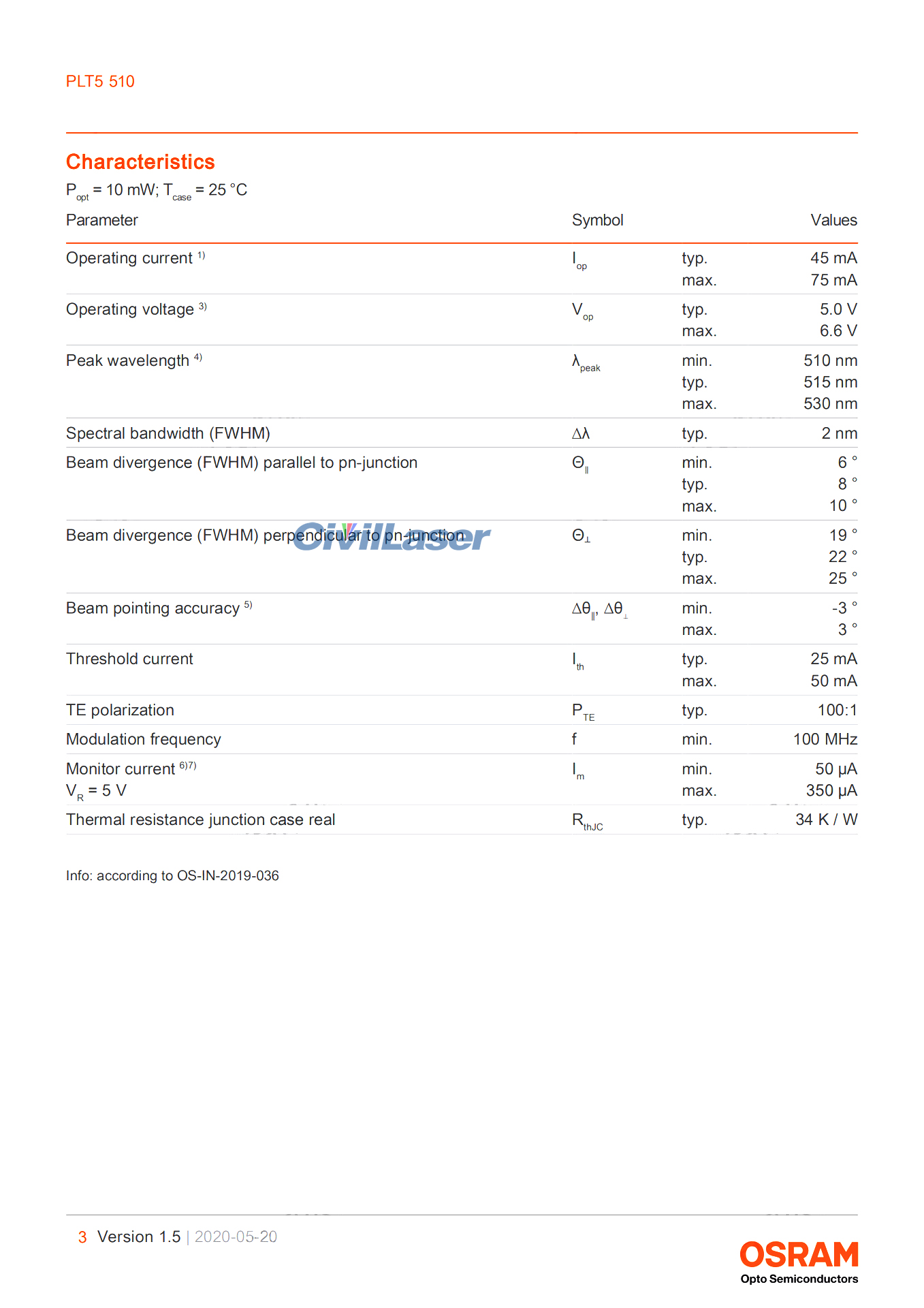

[Specification]
nombre del producto: Laser diode
Model: PLT5 510
Longitud de onda: 510nm
Potencia de salida: 10mW
Forward Current: 120mA
Threshold Current: 25mA
Operating Current: 45mA
Tensión de funcionamiento: 5V
Spectral Bandwidth: 2nm
Modulation Frequency: 100MHz

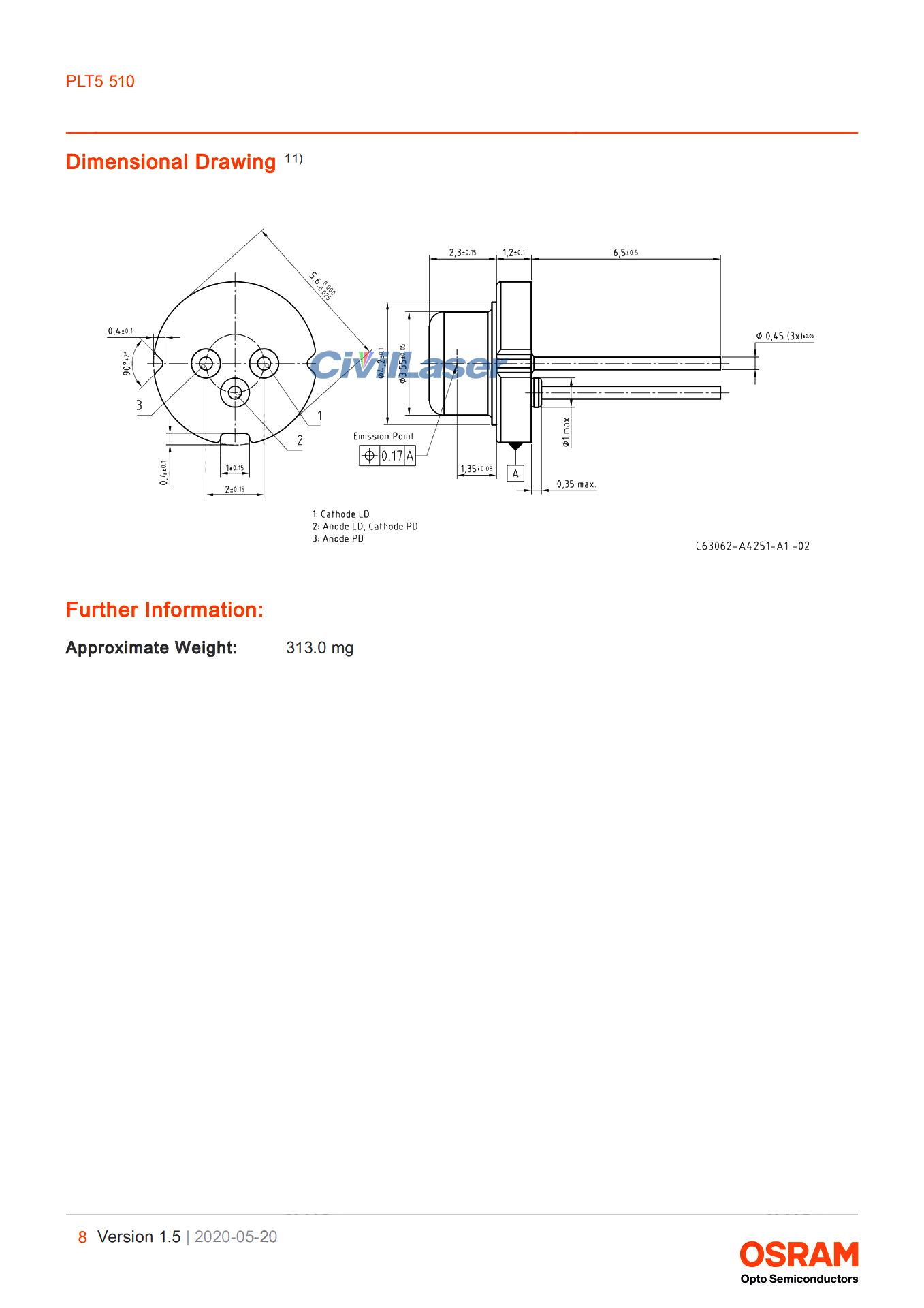

Package: TO56

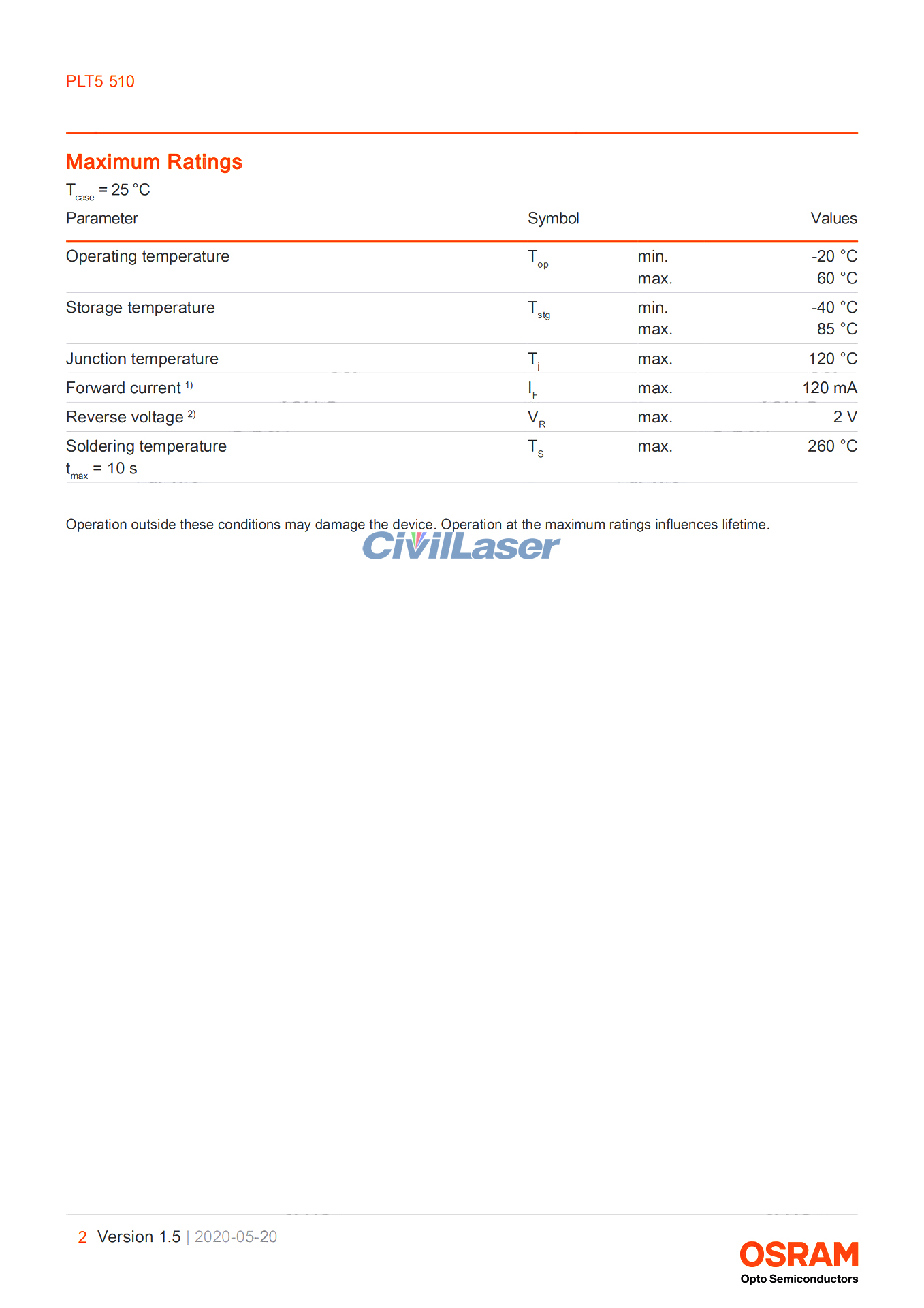

Operating Temperature: -20~+60℃
Storage Temperature: -40~+85℃
