Union U-LD-98A041Ap/Cp/Dp 980nm 100mW Diodo láser IR TO18 Package

Union U-LD-98A041Ap/Cp/Dp 980nm 100mW Diodo láser IR TO18 Package

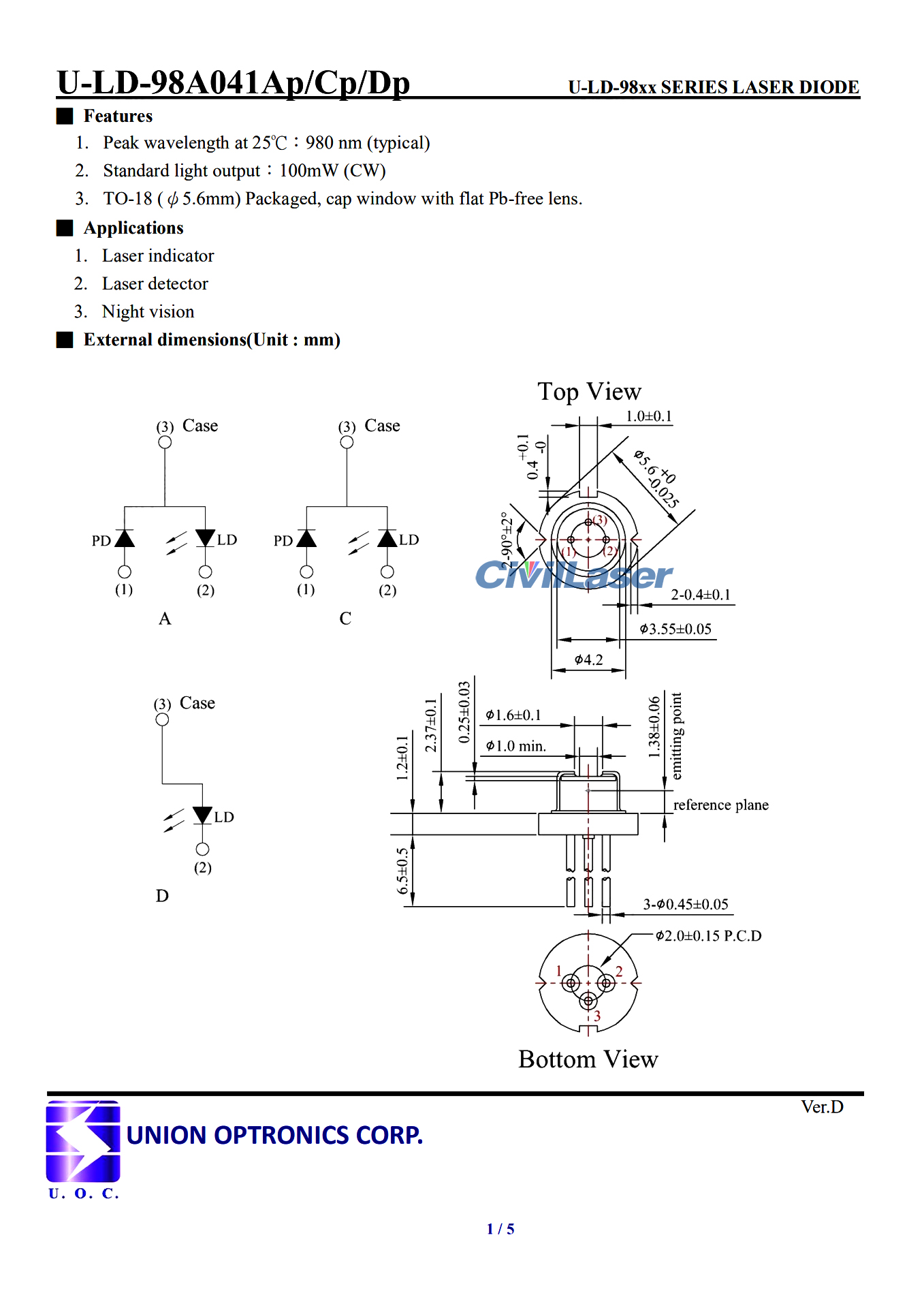

[Features]
1. Peak wavelength at 25℃：980 nm (typical)
2. Standard light output：100mW (CW)
3. TO-18 (Φ5.6mm) Packaged, cap window with flat Pb-free lens.

[Applications]
1. Laser indicator
2. Laser detector
3. Night vision

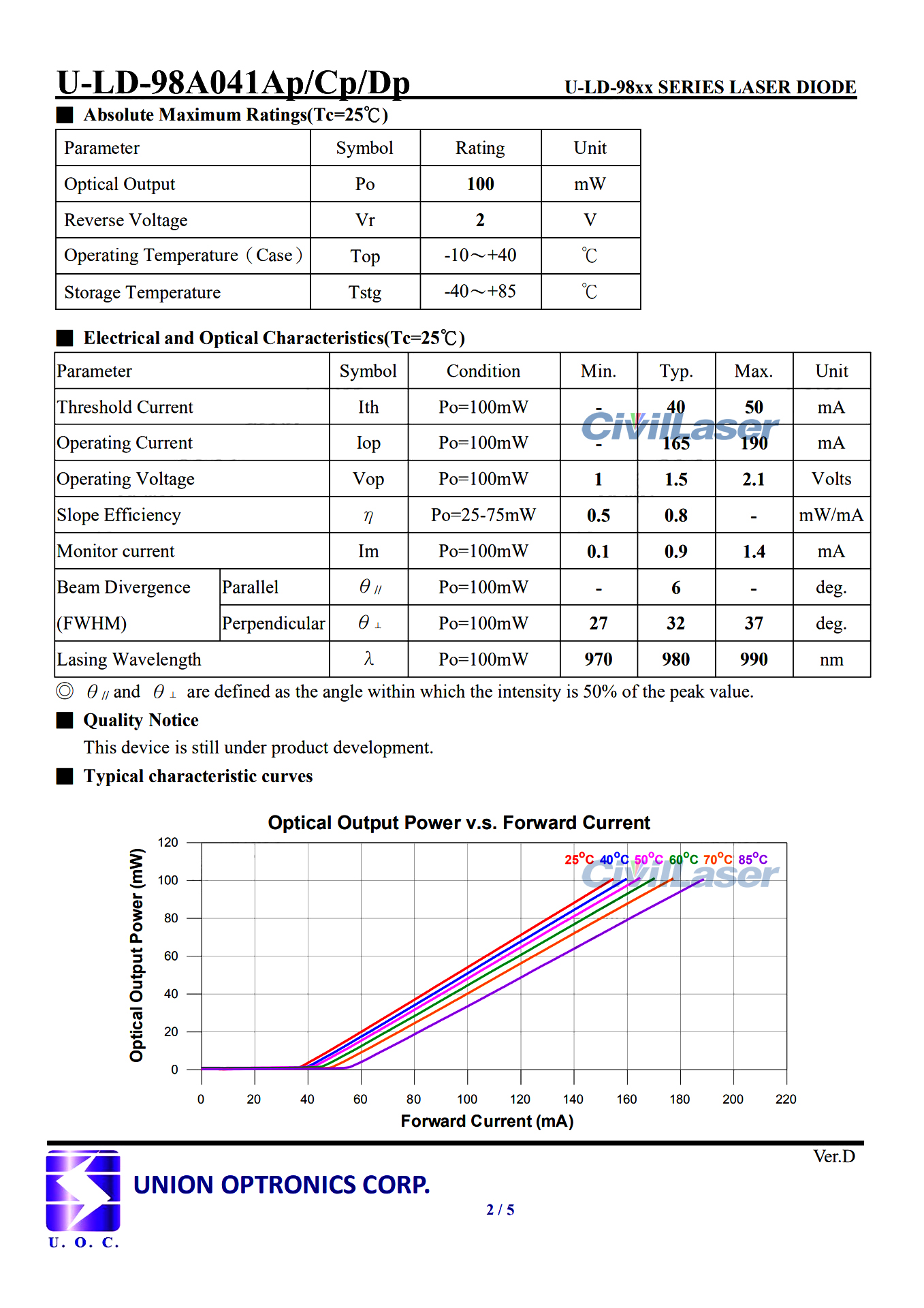

[Specification]
nombre del producto: Laser diode
Model: U-LD-98A041Ap/Cp/Dp
Longitud de onda: 980nm
Potencia de salida: 100mW
Threshold Current: 40mA
Operating Current: 165mA
Tensión de funcionamiento: 1.5V
Package: TO-18(Φ5.6mm)
Operating Temperature: -10~+40℃
Storage Temperature: -40~+85℃
