Osram 450nm 2200mW Alto Voltaje Diodo láser PLT5 450KA Haz láser azul TO56 Package

Osram 450nm 2200mW Alto Voltaje Diodo láser PLT5 450KA Haz láser azul TO56 Package

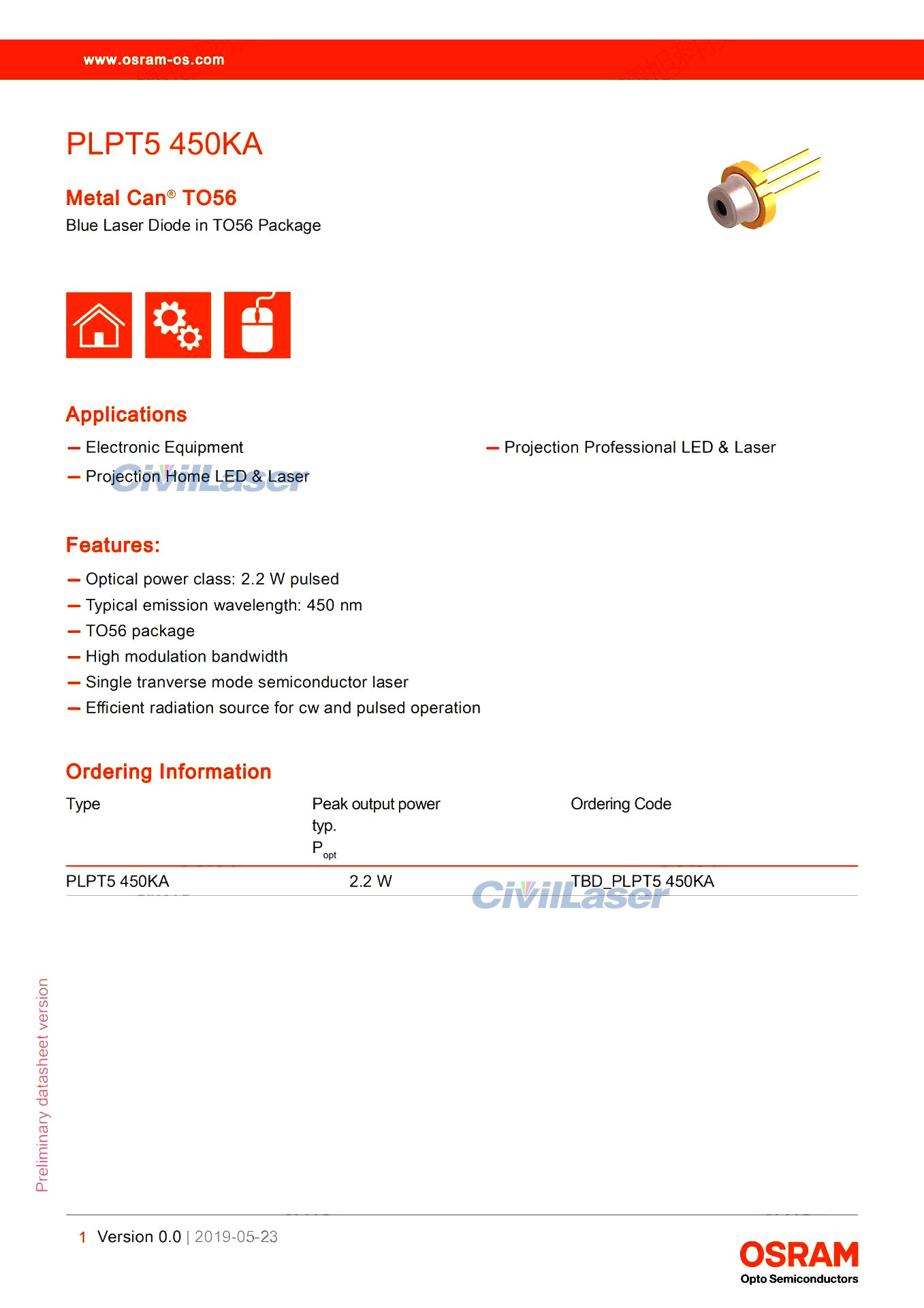

[Features]
1. Optical power class: 2.2W (Pulse)
2. Typical emission wavelength: 450nm
3. TO56 package
4. High modulation bandwidth
5. Single tranverse mode semicoductor laser module.
6. Efficient radiation source for cw and pulse operation.

[Applications]
1. Electronic equipment
2. Projection professional LED & Laser
3. Projection home LED & Laser

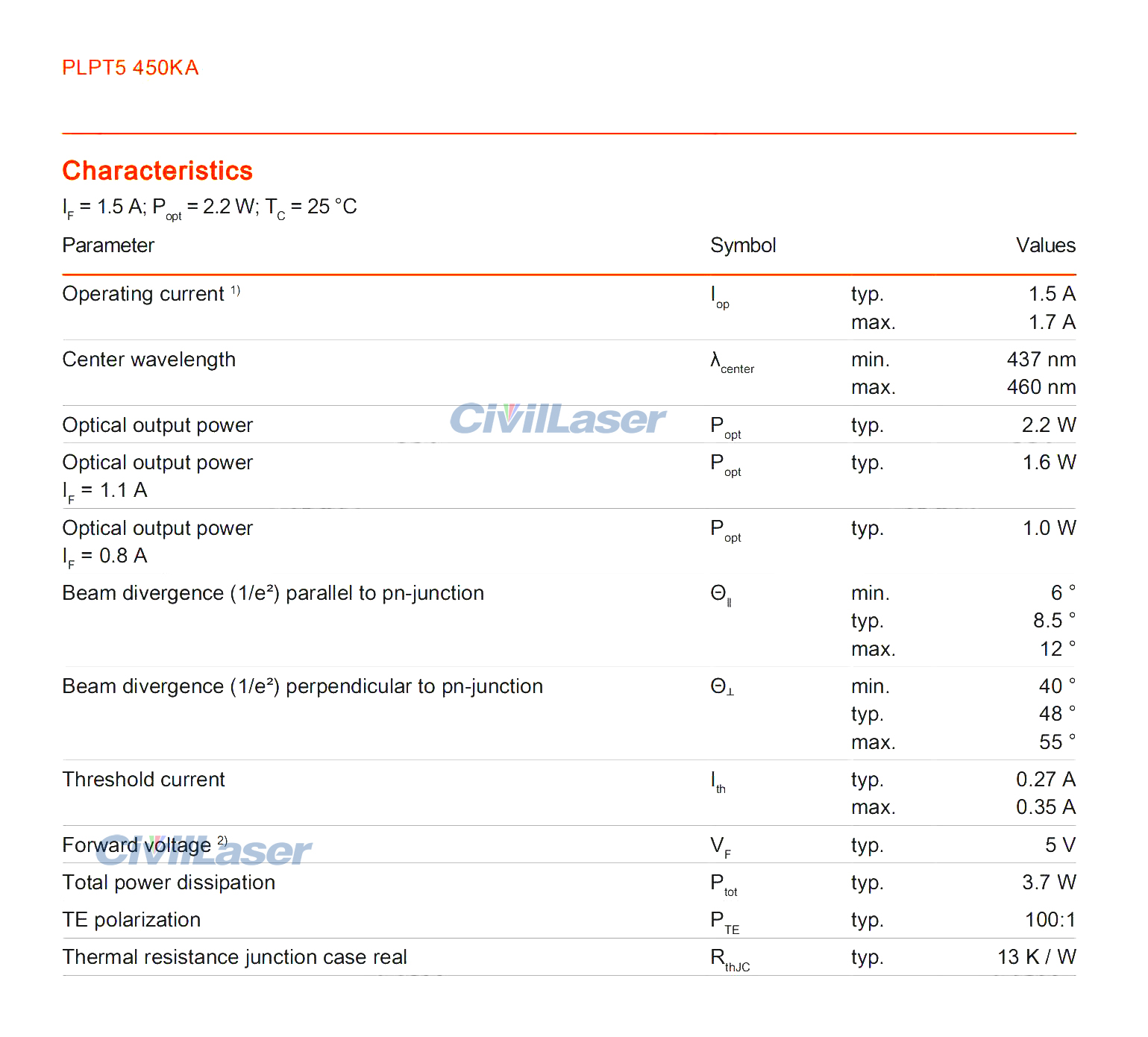

[Specification]
nombre del producto: Laser diode
Model: PLT5 450KA
Longitud de onda: 450nm
Potencia de salida: 2200mW
Threshold Current: 0.27A
Operating Current: 1.5A
Forward Voltage: 5V

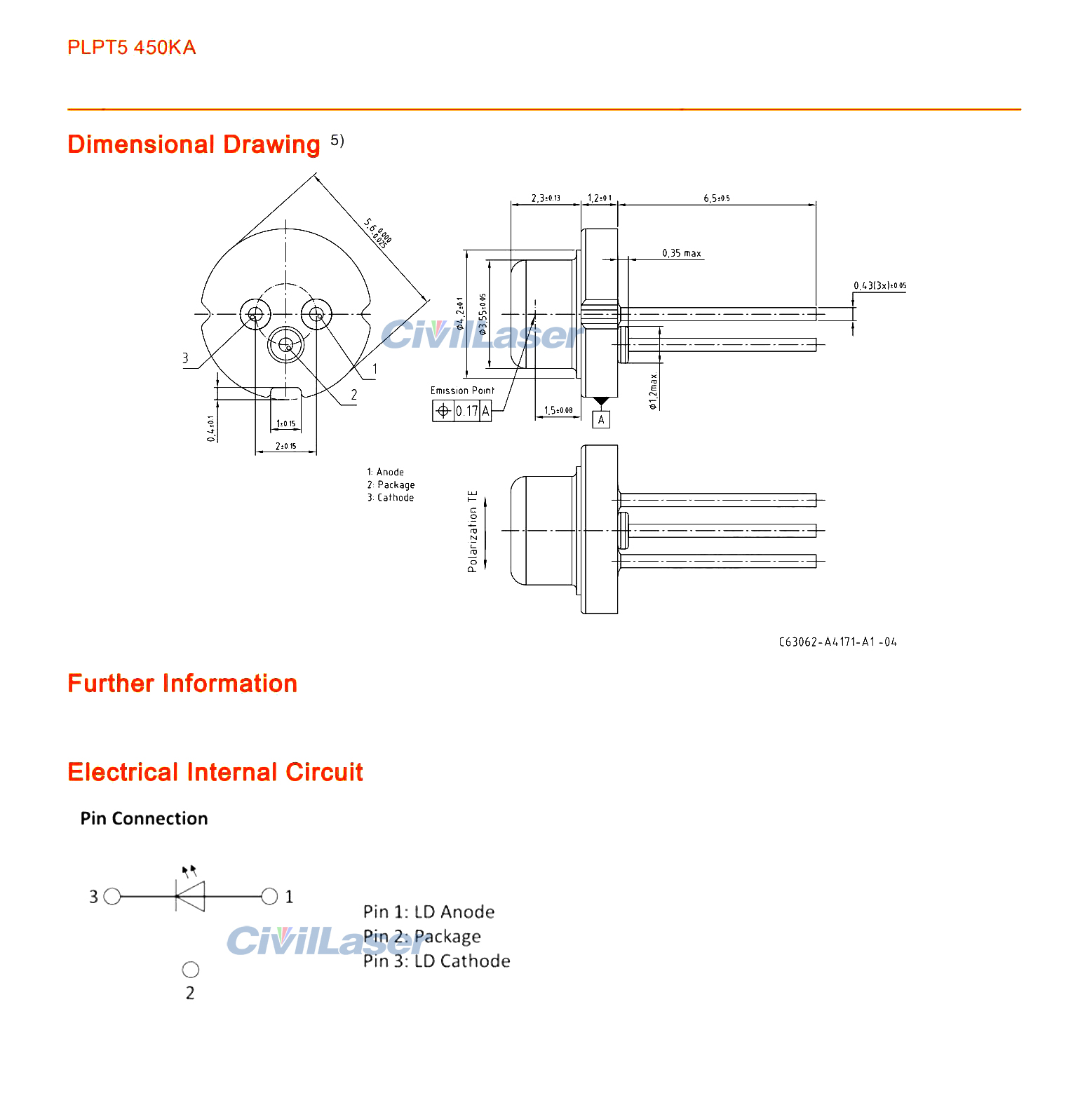

Package: TO56

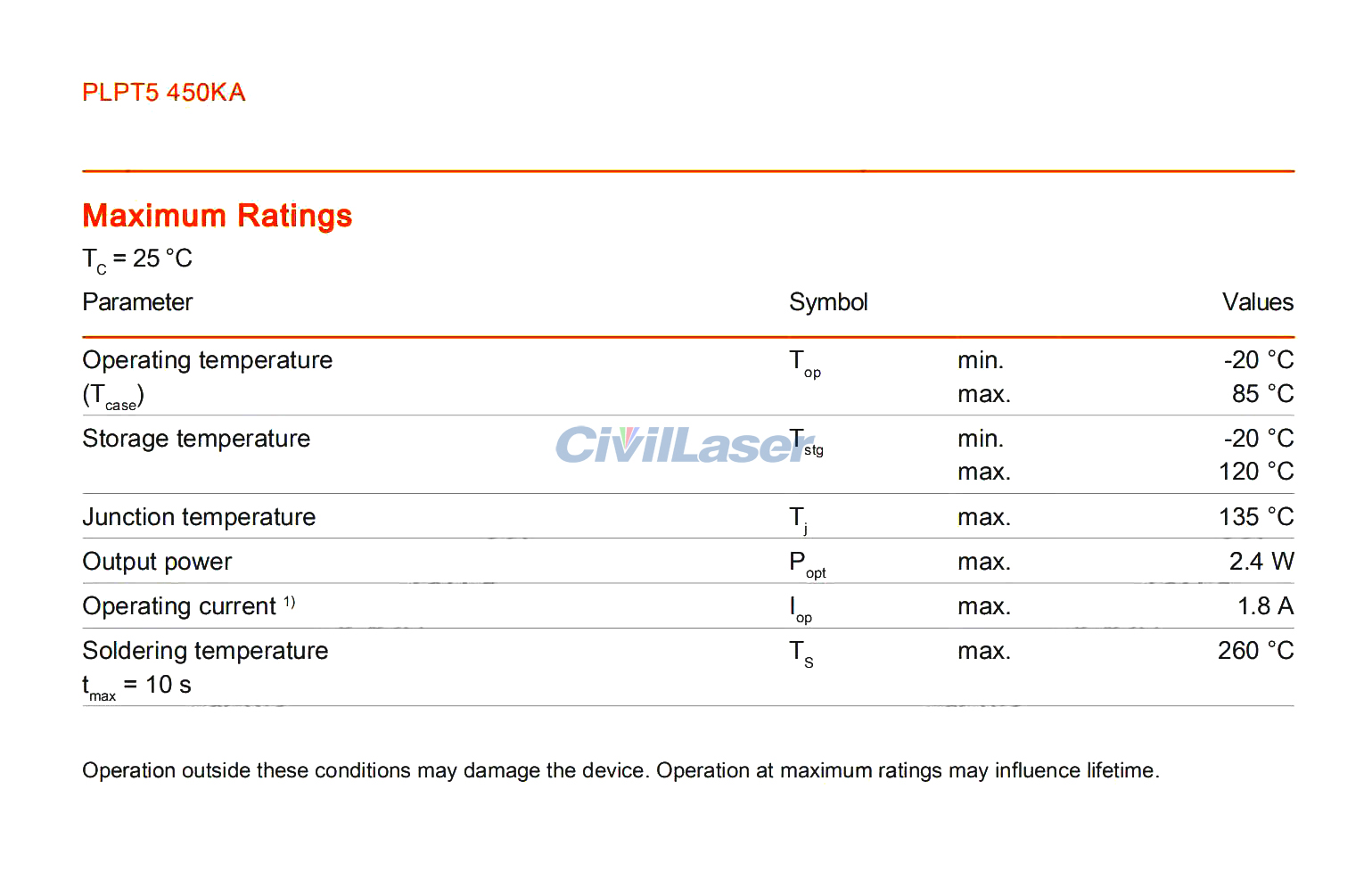

Operating Temperature: -20~+85℃
Storage Temperature: -20~+120℃
