Union U-LD-670561A/D 670nm 5mW Rojo Diodo láser TO18 5.6mm Package

Union U-LD-670561A/D 670nm 5mW Rojo Diodo láser TO18 5.6mm Package

[Features]
1. Low divergence angle
2. Peak wavelength at 25℃: 670 nm (typical)
3. Standard light output : 5mW (CW)

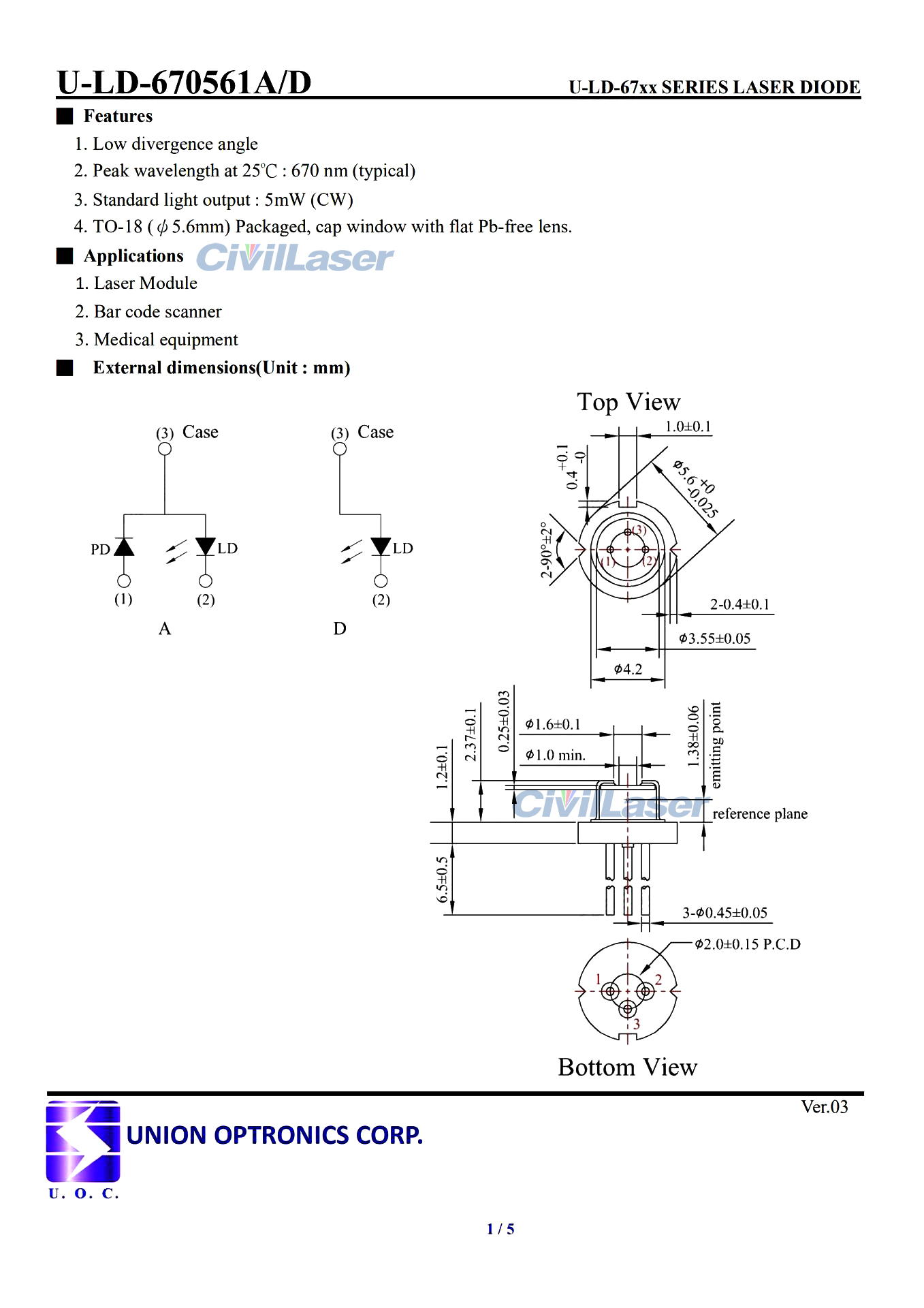

4. TO-18 (Φ5.6mm) Packaged, cap window with flat Pb-free lens.

[Applications]
1. Módulo láser
2. Bar code scanner
3. Medical equipment

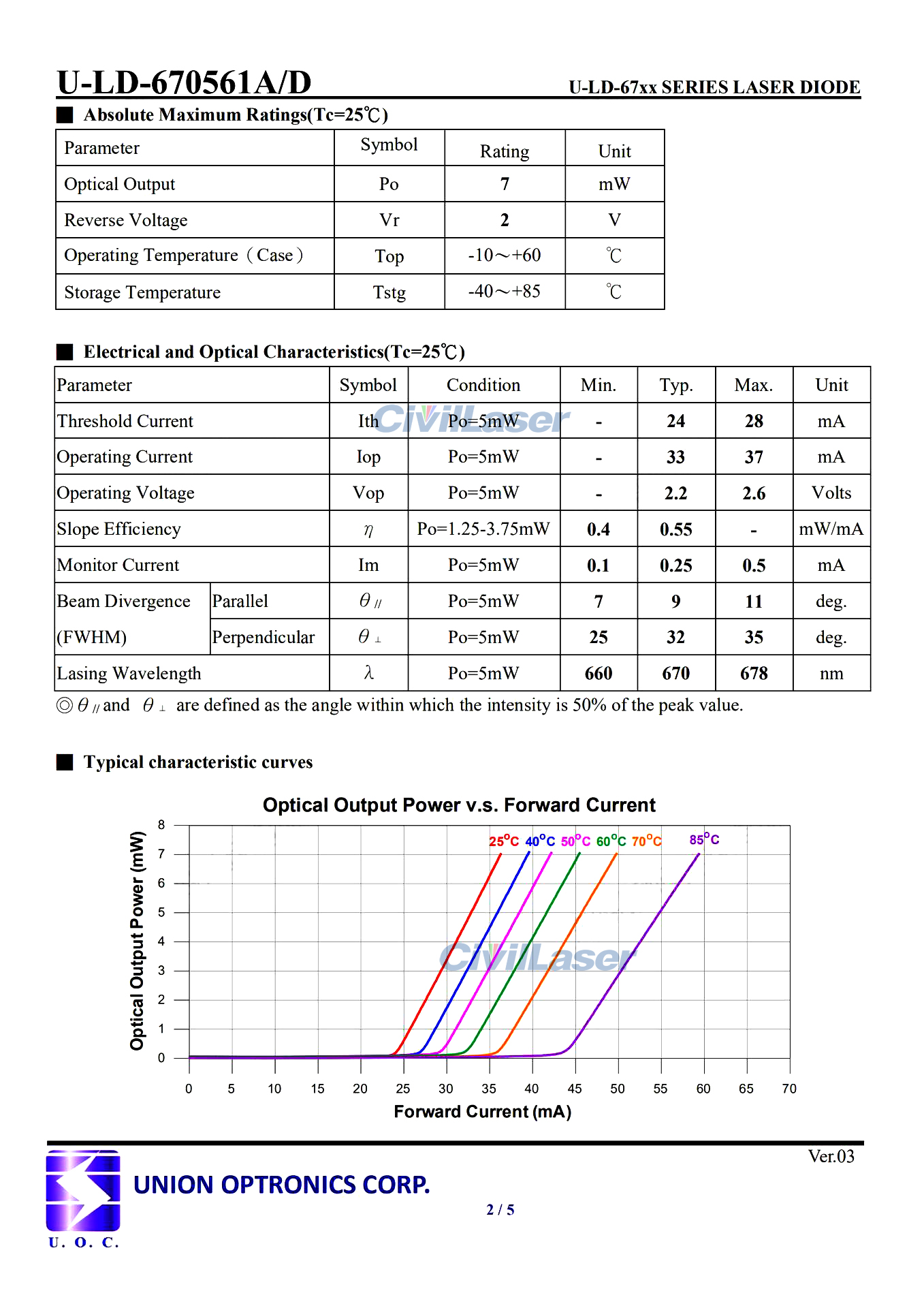

[Specification]
nombre del producto: Laser diode
Model: U-LD-670561A/D
Longitud de onda: 670nm
Potencia de salida: 5mW
Threshold Current: 24mA
Operating Current: 33mA
Tensión de funcionamiento: 2.2V
Package: TO-18(Φ5.6mm)
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
