Union 830nm 500mW Diodo láser IR U-LD-83E061Ap TO18 Φ5.6mm Package

Union 830nm 500mW Diodo láser IR U-LD-83E061Ap TO18 Φ5.6mm Package

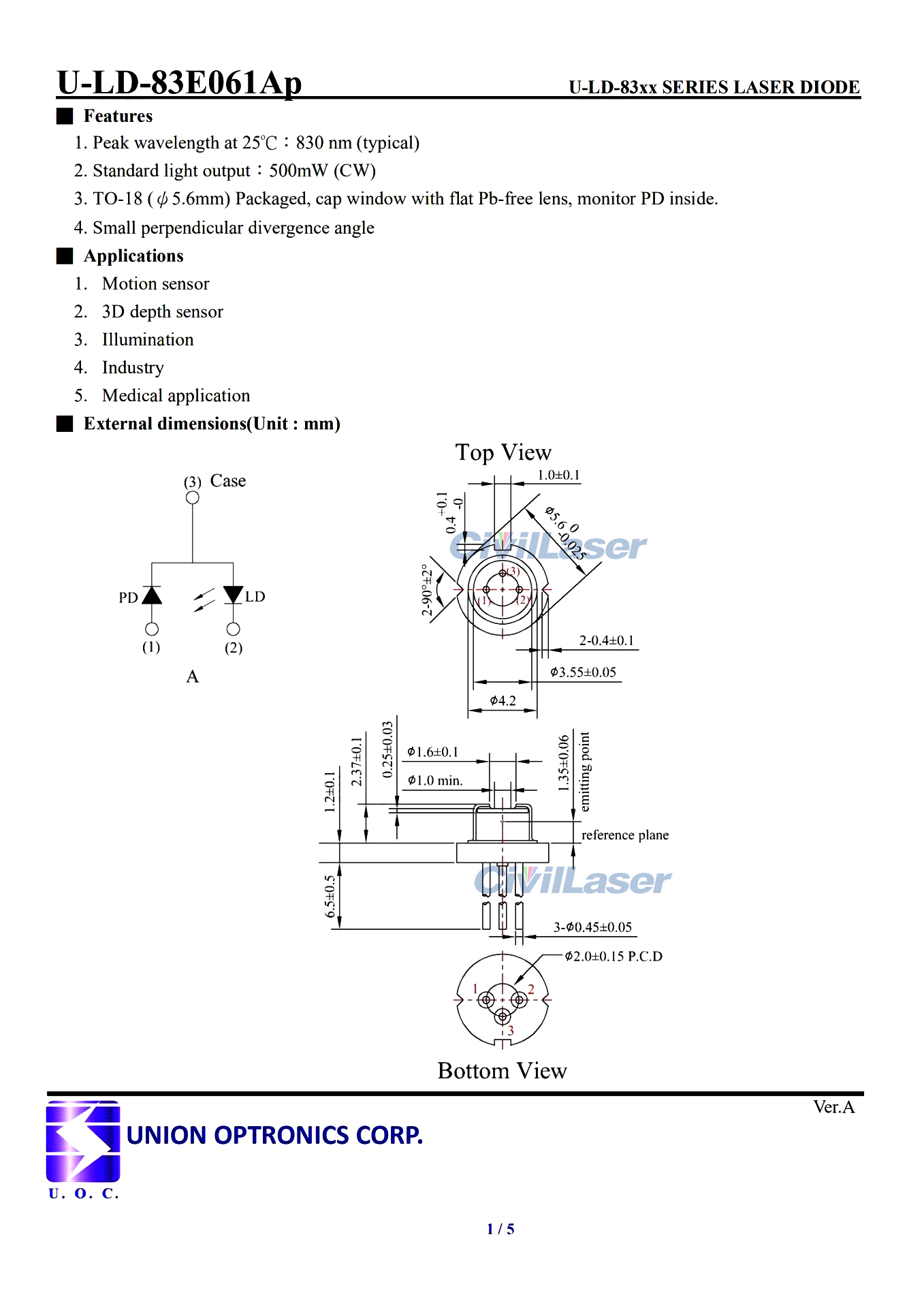

[Features]
1. Peak wavelength at 25℃: 830nm(typical)
2. Standard light output：500mW (CW)
3. TO-18 (Φ5.6mm) Packaged, cap window with flat Pb-free lens, monitor PD inside.
4. Small perpendicular divergence angle.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

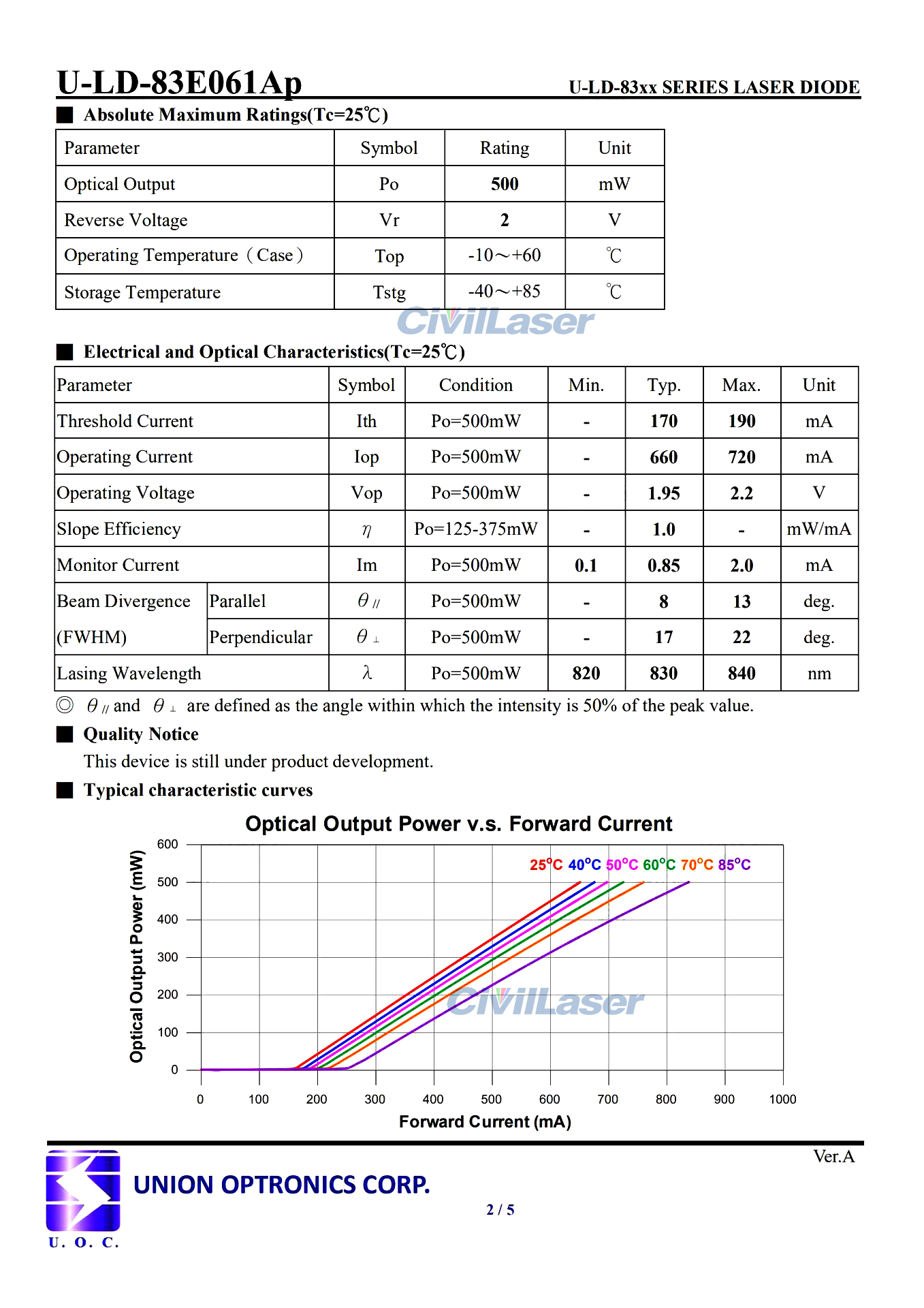

[Specification]
nombre del producto: Laser diode
Model: U-LD-83E061Ap
Longitud de onda: 830nm
Potencia de salida: 500mW
Reverse Voltage: 2V
Threshold Current: 170mA
Operating Current: 660mA
Tensión de funcionamiento: 1.95V
Package: TO18(Φ5.6mm)
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
