Union U-LD-851061Ap 850nm 10mW Diodo láser IR TO-18 Package

Union U-LD-851061Ap 850nm 10mW Diodo láser IR TO-18 Package

[Features]
1. Small perpendicular divergence angle.
2. Lateral single mode lasing.
3. Standard optical power output：10mW (CW).

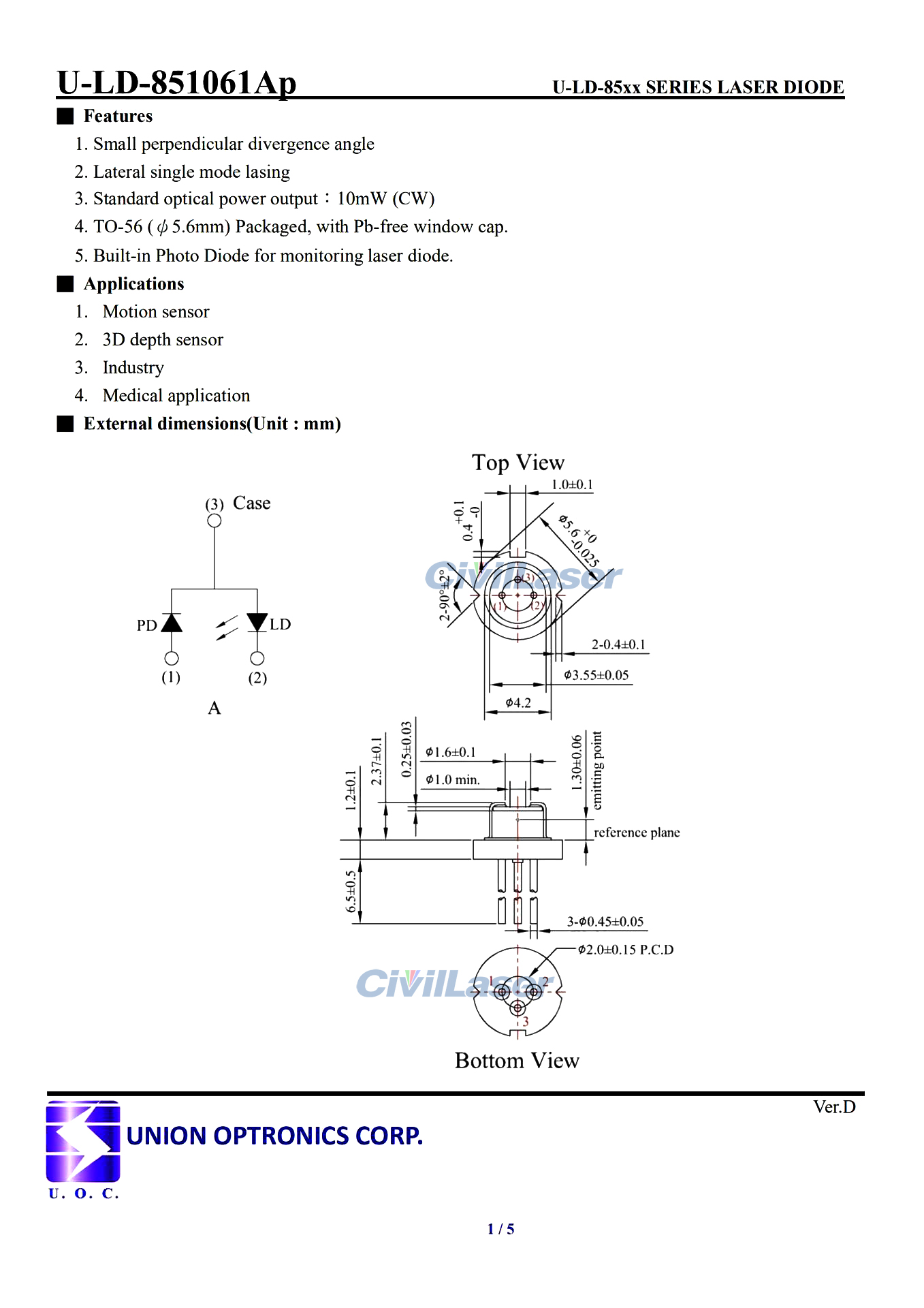

4. TO-56 (Φ5.6mm) Packaged, with Pb-free window cap.
5. Built-in Photo Diode for monitoring laser diode.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Industry
4. Medical application

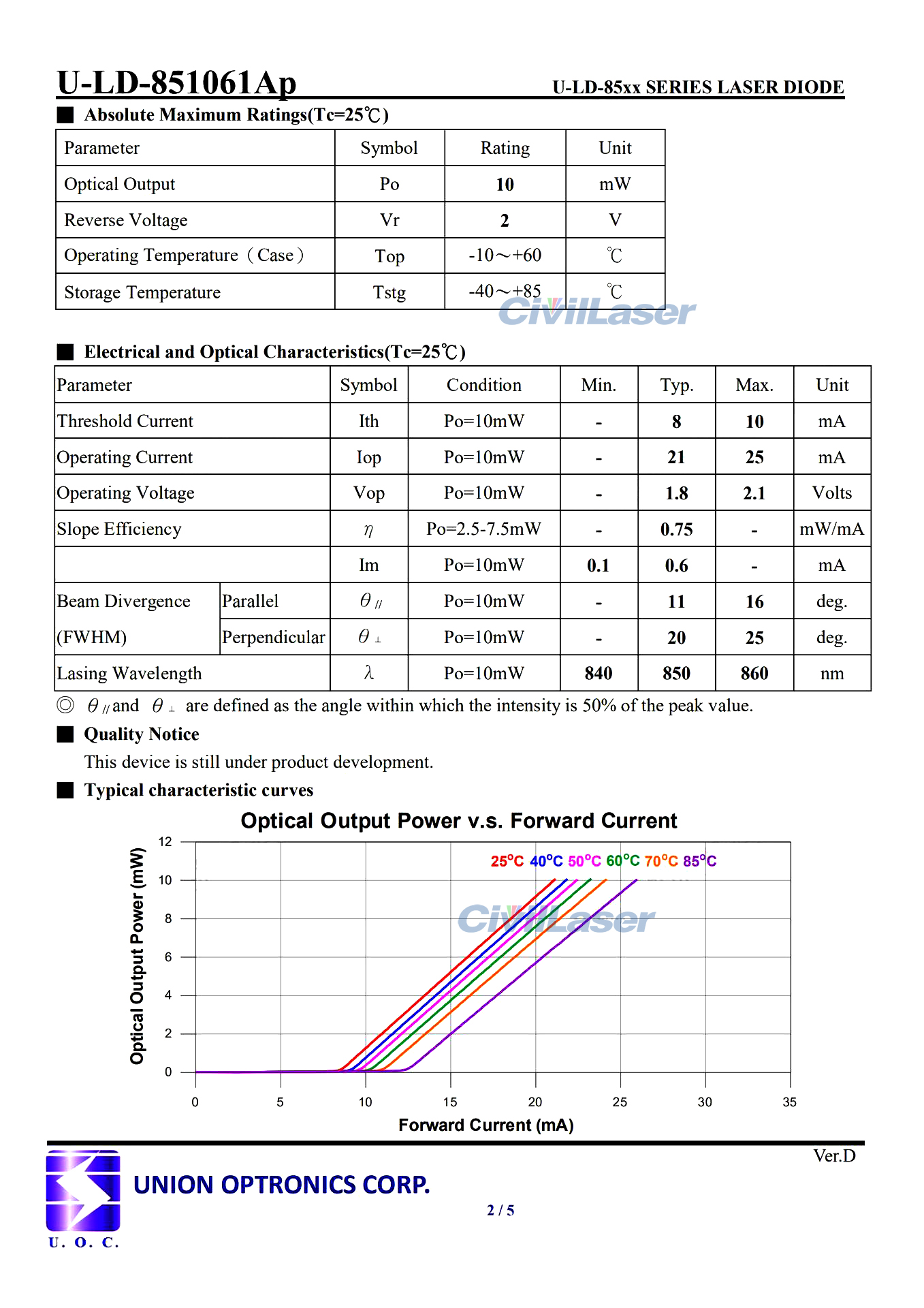

[Specification]
nombre del producto: Laser diode
Model: U-LD-851061Ap
Longitud de onda: 850nm
Potencia de salida: 10mW
Reverse Voltage: 2V
Threshold Current: 8mA
Operating Current: 21mA
Tensión de funcionamiento: 1.8V
Package: TO18(Φ5.6mm)
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
