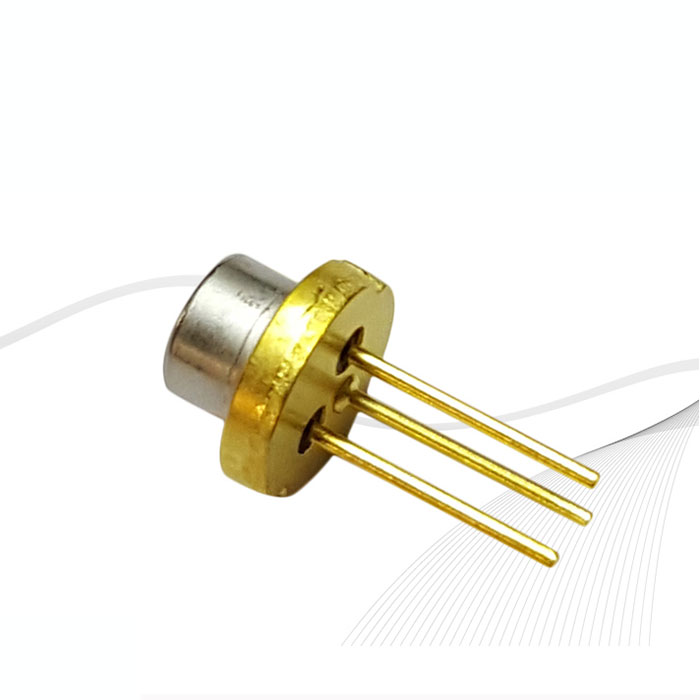

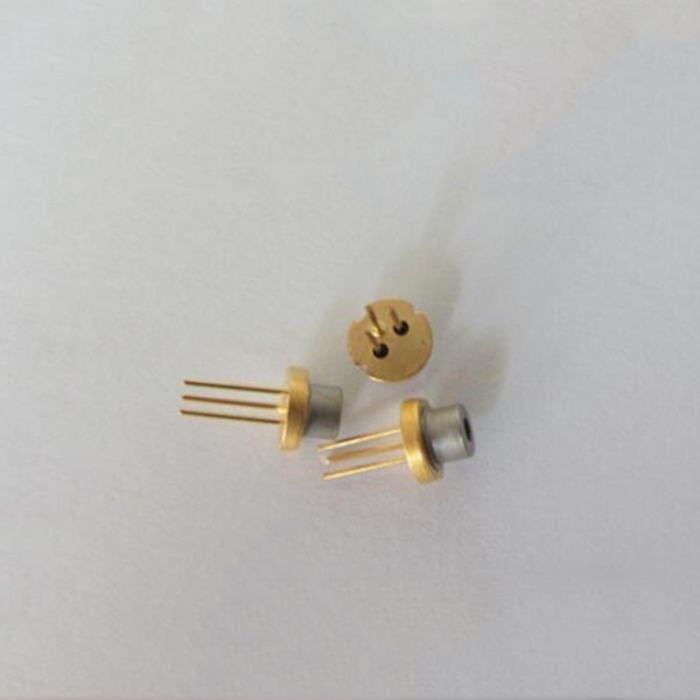

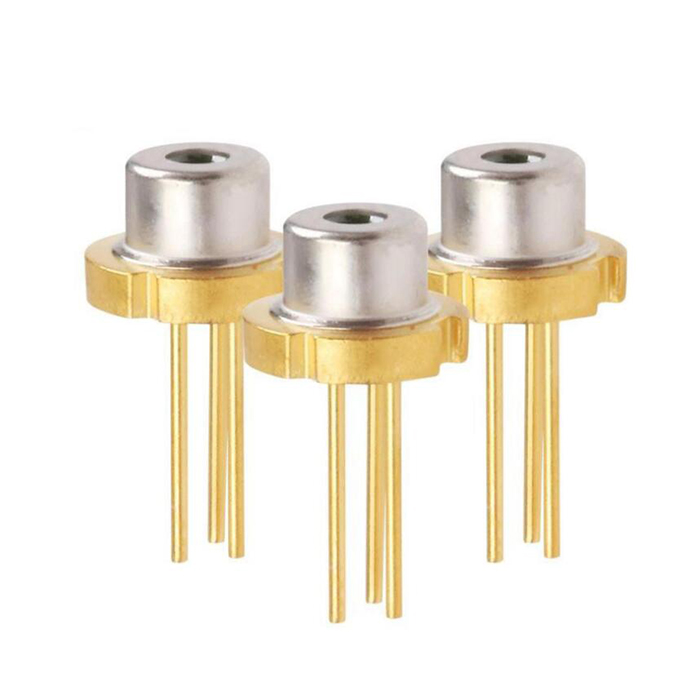

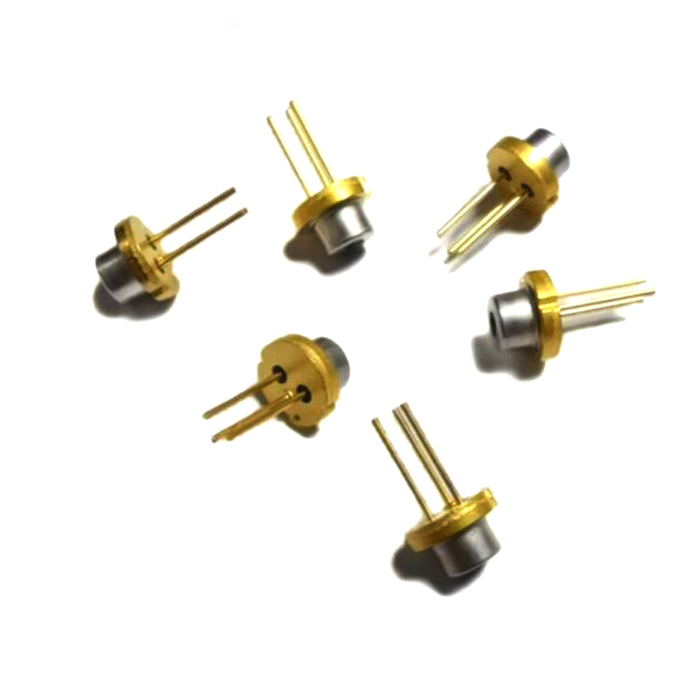

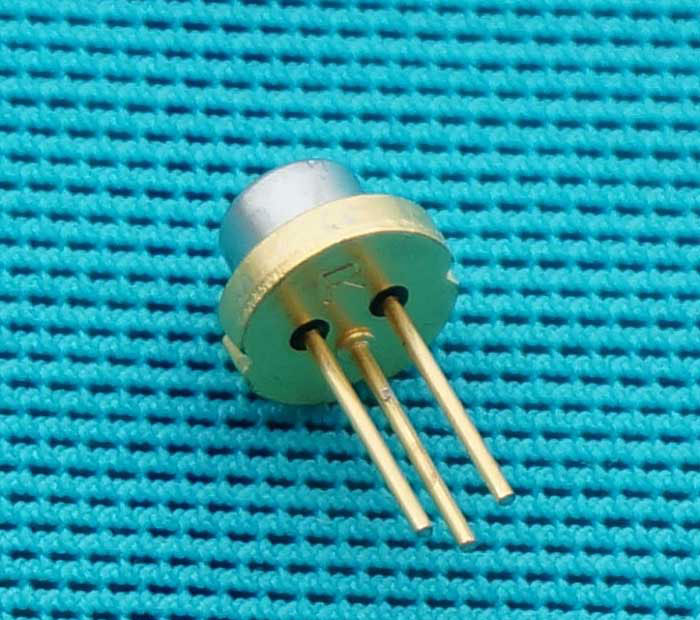

Union 850nm 300mW Infrarrojo Diodo láser U-LD-85C061Ap/Bp TO18 5.6mm Package

Union 850nm 300mW Infrarrojo Diodo láser U-LD-85C061Ap/Bp TO18 5.6mm Package

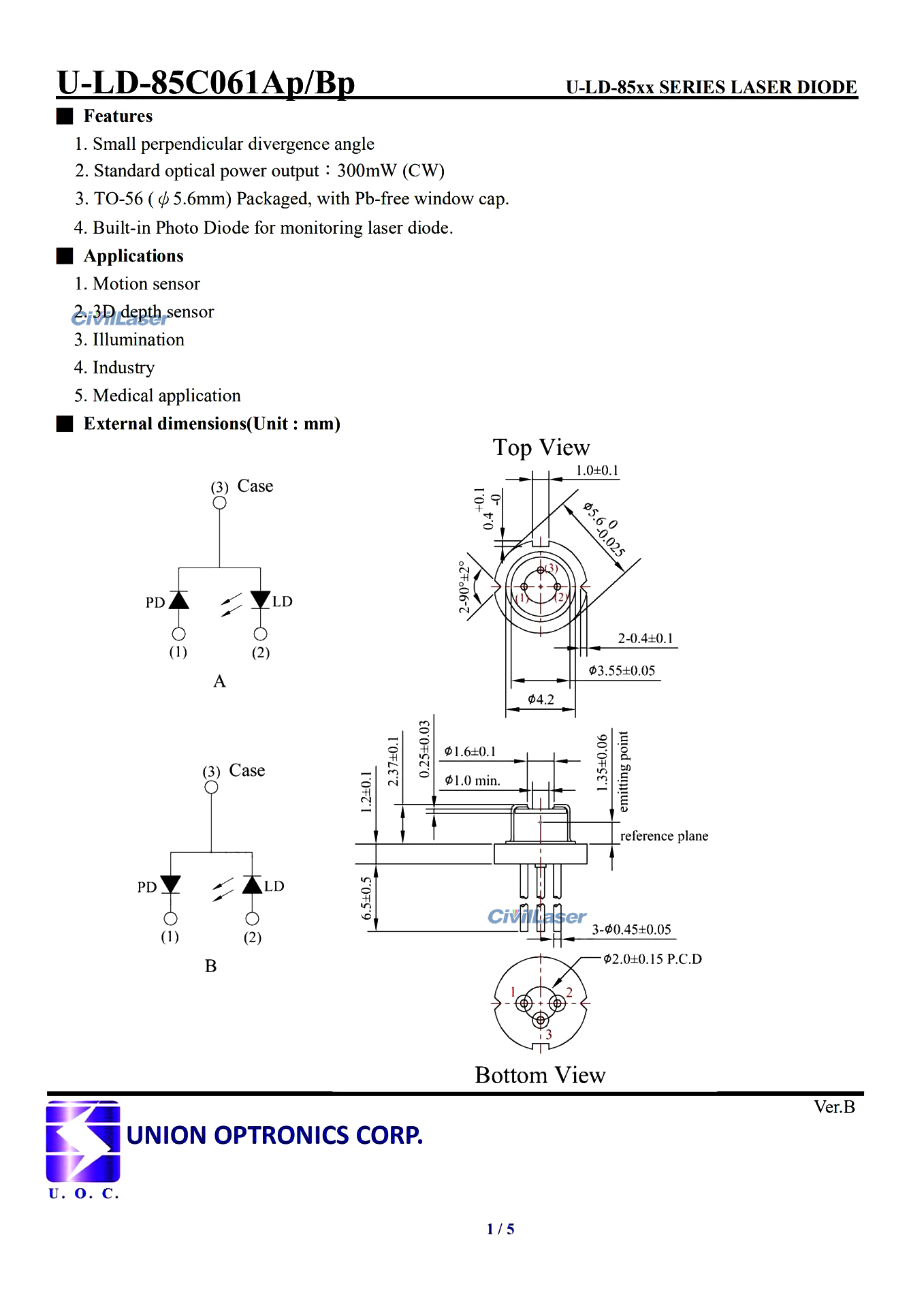

[Features]
1. Small perpendicular divergence angle.
2. Standard optical power output：300mW (CW).
3. TO-56 (Φ5.6mm) Packaged, with Pb-free window cap.
4. Built-in Photo Diode for monitoring laser diode.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

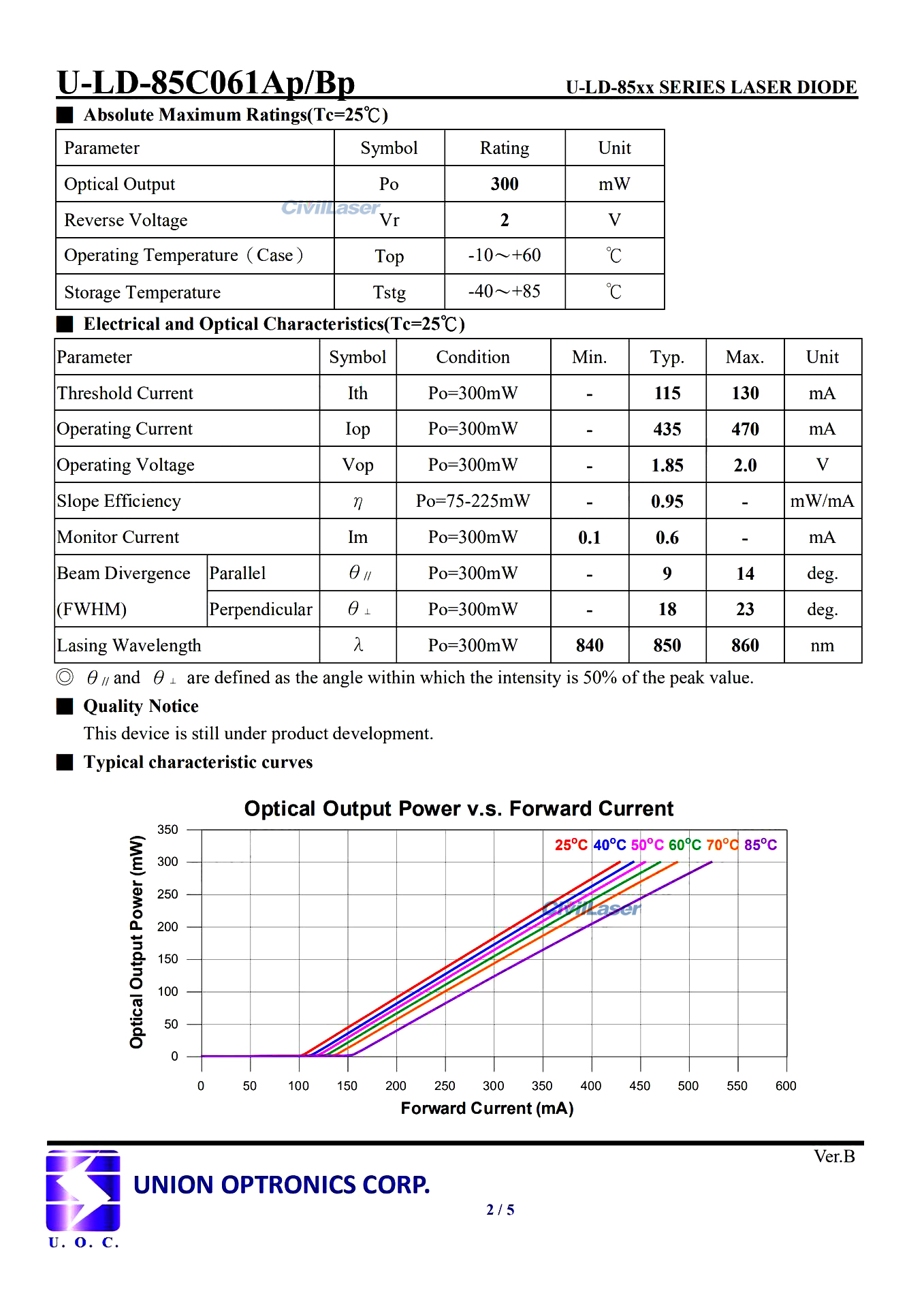

[Specification]
nombre del producto: Laser diode
Model: U-LD-85C061Ap/Bp
Longitud de onda: 850nm
Potencia de salida: 300mW
Reverse Voltage: 2V
Threshold Current: 115mA
Operating Current: 435mA
Tensión de funcionamiento: 1.85V
Package: TO18(Φ5.6mm)
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
