Sharp 638nm 185mW Diodo láser GH0631IA2KC Modo singular Diode TO18 Package

Sharp 638nm 185mW Diodo láser GH0631IA2KC Modo singular Diode TO18 Package

[Features]
Longitud de onda: 638nm (Typ.)
Optical Power outpout: CW 185mW
Oscillation transverse mode: Single mode

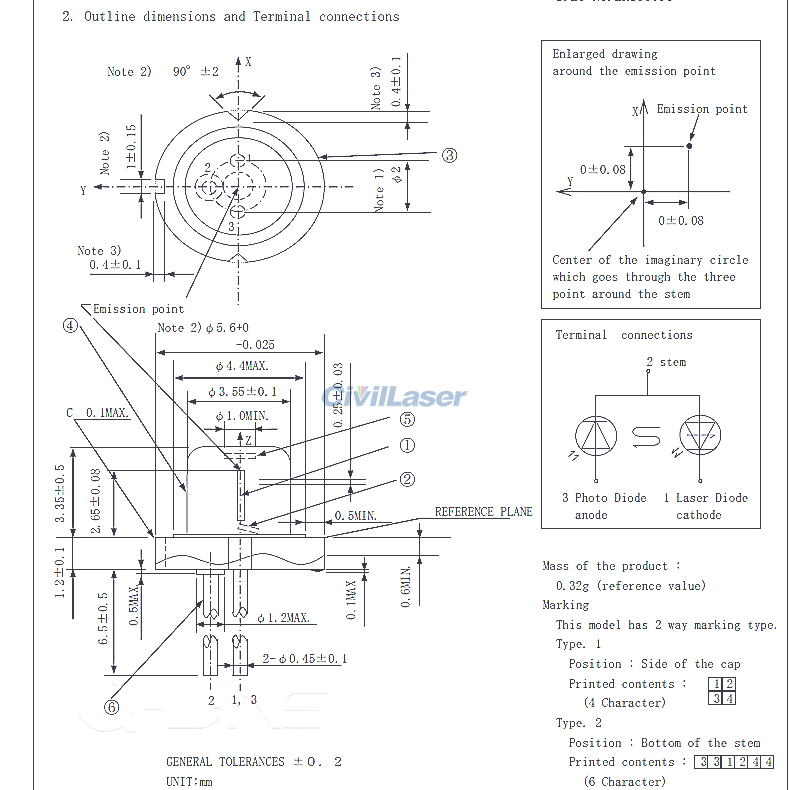

Φ5.6mm CAN package

[Application]
Display
Barcode scanner
Laser sensor

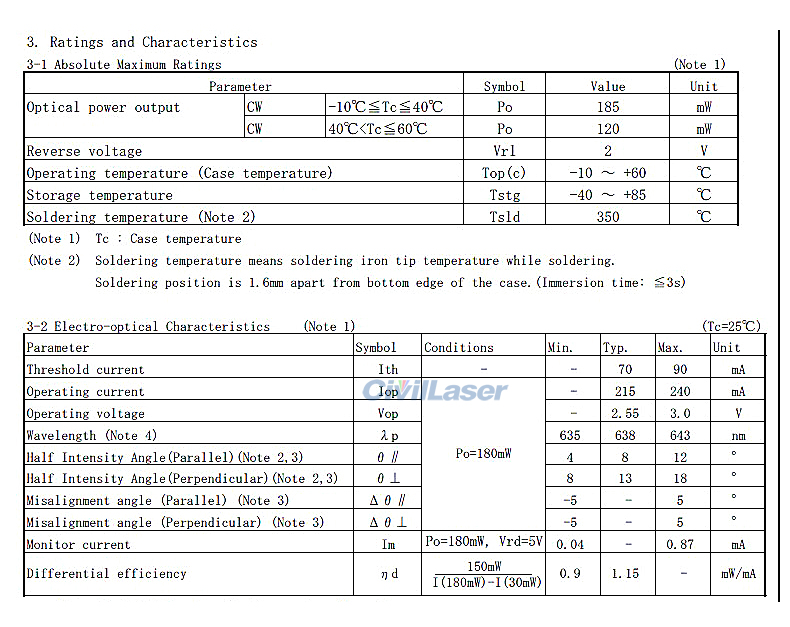

[Specification]
nombre del producto: Laser diode
Longitud de onda: 638nm
Potencia de salida: 185mW
Operating Current: 215mA
Threshold Current: 70mA
Tensión de funcionamiento: 2.55V
Package: TO-18
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
Working Life: 10000 hrs
