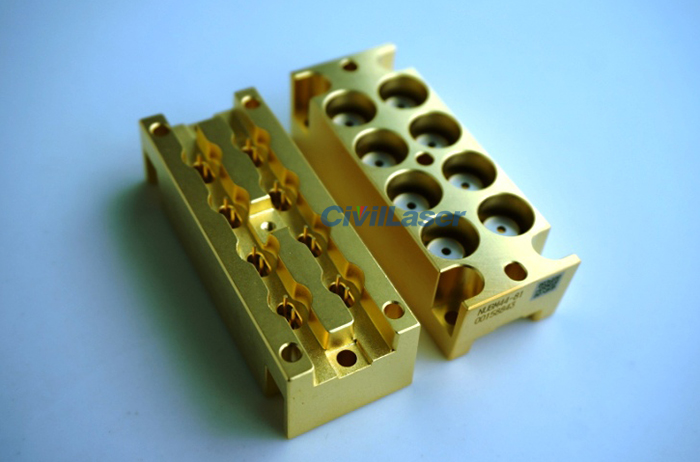

Nichia NUBM06 Diodo láser azul 8*4W 32W Diode Bank

Nichia NUBM06 Diodo láser azul 8*4W 32W Diode Bank

[Features]
1. High power multiple laser diode (LD) bank.
2. 8 collimator beams.
3. No outgas.
4. High heat dissipation.
5. High safety structure for prevention of removing LDs.

[Specification]
nombre del producto: Nichia laser diode
Longitud de onda: 445nm
Power: CW 4W*8=32W
Pulse power: single >8W
Operating Current: <3.5A
Tensión de funcionamiento: 3.7-4.8V
Operating Temperature: 0-65℃
Storage Temperature: -40-85℃
Package: T05 (Φ9mm)
Working Life: 10000 hrs
