26.1° 20*20 400 Rectangles Módulo láser Grid Rojo/Verde/Azul Diode Laser

26.1° 20*20 400 Rectangles Módulo láser Grid Rojo/Verde/Azul Diode Laser

[Features]
1. Ultra high brightness, universal in indoor and outdoor.
2. The light is clear and bright, soft and not dazzling.

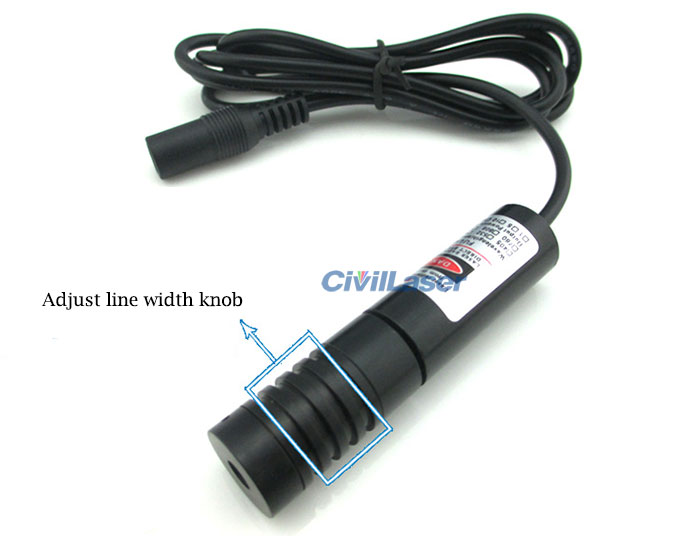

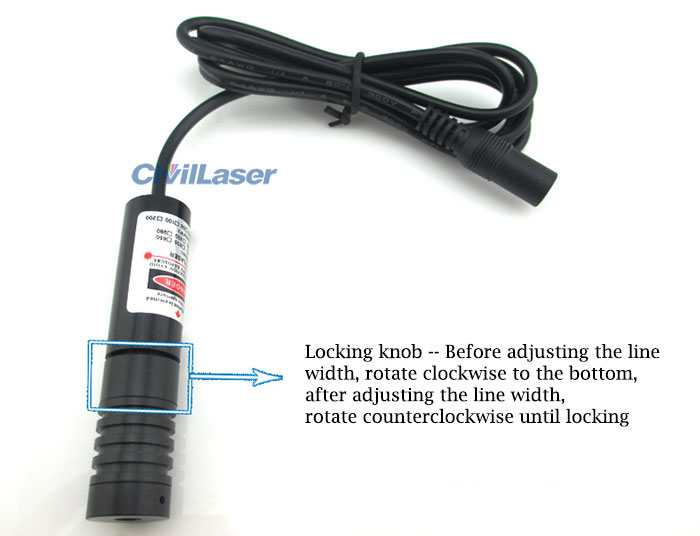

3. Spot size is adjustable.
4. The shell is made of aviation aluminum-plated insulating paint that can not only fully dissipate heat but also resist shock, drop, and static electricity.
5. Imported laser diodes emit light directly with exceptional stability.
6. Intelligent driver board with imported IC, wide range power supply.
7. High temperature resistance, corrosion resistance.

[Especificaciones]
nombre del producto: Módulo láser
Laser Color: Rojo / Verde / Azul (Escoger)
Longitud de onda: Rojo 650nm / Verde 520nm / Azul 450nm (Escoger)
Power: 100mW
Installation Height: 0~5 meters
Working Voltage: DC 2.8V~5.2V
Working Current: <500mA

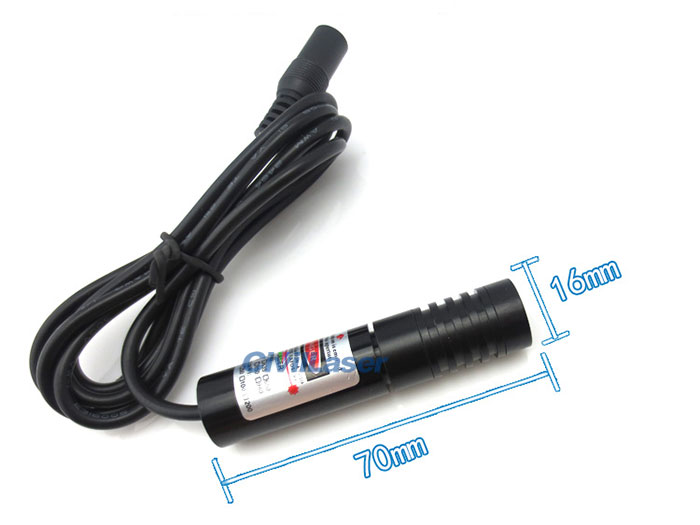

Dimensions: 16*70mm

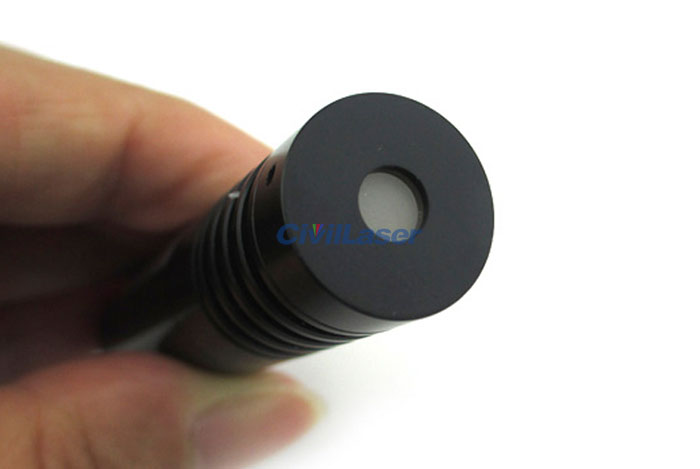

Optical Lens: Grating sheet (imported from Germany)
Number of Grids: 20*20=400

X-direction lens angle: 26.1°
At 50 cm, the X direction is 23.2 cm long (a single small grid is 1.16 cm long in the X direction).
At 100 cm, the X-direction length is 46.4 cm (a single small grid is 2.32 cm long in the X-direction).

Y direction lens angle: 8.5°
At 50 cm, the Y direction is 7.4 cm long (a single grid is 0.37 cm long in the Y direction).
At 100 cm, the Y direction is 14.8 cm long (a single small grid is 0.74 cm long in the Y direction).

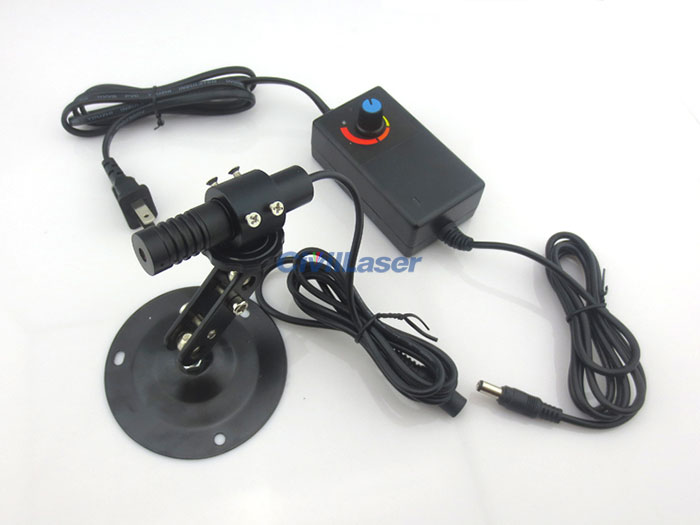

[Package Include]
1 x Laser module
1 x Power supply
1 x Laser module holder
