14.8° Módulo de diodo láser Three Arrows Rojo/Verde/Azul Special Laser

14.8° Módulo de diodo láser Three Arrows Rojo/Verde/Azul Special Laser

[Features]
1. Ultra high brightness, universal in indoor and outdoor.
2. The light is clear and bright, soft and not dazzling.
3. The shell is made of aviation aluminum-plated insulating paint that can not only fully dissipate heat but also resist shock, drop, and static electricity.
4. Imported laser diodes emit light directly with exceptional stability.
5. Intelligent driver board with imported IC, wide range power supply.
6. High temperature resistance, corrosion resistance.

[Especificaciones]
nombre del producto: Módulo láser Arrow

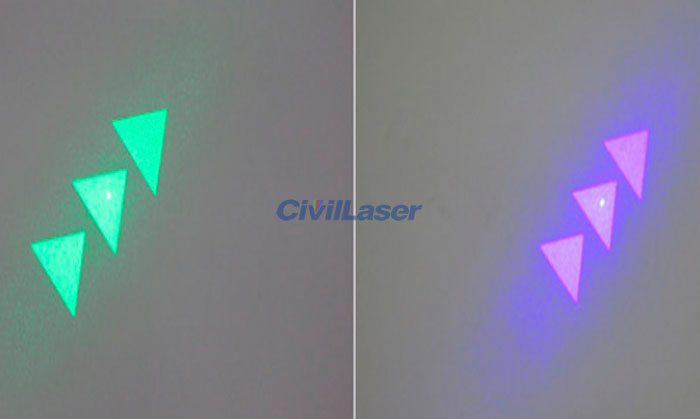

Laser Color: Rojo / Verde /Azul (Escoger)
Installation Height: 0~10 meters
Power: 100mW
Working Voltage: DC 2.8V~5.2V
Working Current: <500mA
Dimensions: 16*70mm
Optical Lens: Grating sheet (imported from Germany)

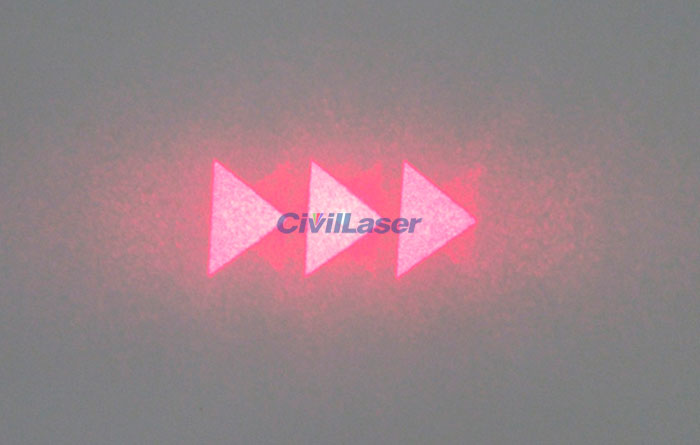

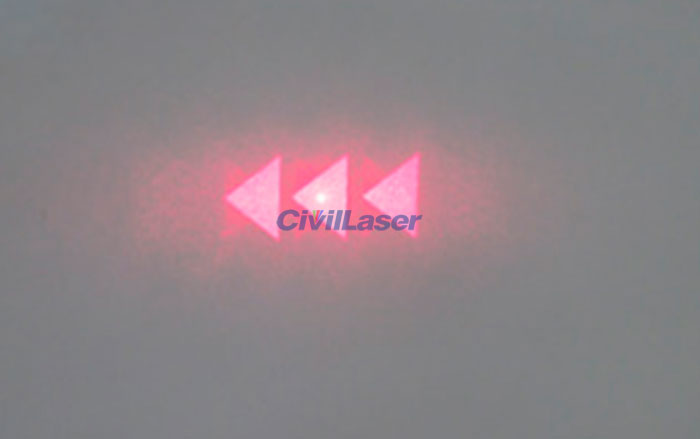

Arrow Length:
X Direction: 14.8°
At 0.5 meters, the length in the X direction is 130mm.

Y Direction: 6.6°
At 0.5 meters, the length in the Y direction is 58mm.

[Package Include]
1 x Laser module
1 x Power supply
1 x Laser module holder
