C-Band 10W 40dBm Alto Voltaje Single Mode EDFA Fiber Amplifier Desktop Type
High-power single-mode erbium-doped fiber amplifier (EYDFA-HP) is based on the principle of laser amplification of optical signals in erbium-doped fiber, using unique multi-stage optical amplification design and reliable high-power laser heat dissipation technology to achieve the wavelength range of 1540~1565nm Internal high-power laser output. It has the advantages of high power and low noise, and can be used for optical fiber communication, laser radar, etc.
[Features]
High output power.
High gain coefficient.
Wide wavelength range.
[Applications]
Optical fiber communication
Fiber optic sensing
Laser radar
[Speicfictaion]
| Parameter |
Unit |
Typical Value |
Remarks |
| Wavelength Range |
nm |
C band: 1540~1565 |
Personalizable |
| Intput Power |
dBm |
-6~+10 |
|
| Saturated Output Power |
dBm |
40 |
@-3dBm input |
| Noise Index |
dB |
<6.0 |
@-3dBm input |
| Gain Flatness |
dB |
3 |
|
| Polarization Dependent Gain |
dB |
<0.5 |
|
| Polarization Mode Dispersion |
ps |
0.5 |
|
| Input/Output End Isolation |
dB |
>35 |
|
| Pigtail Type |
|
SMF-28e single mode fiber |
|
| Pigtail Connector Type |
|
FC/APC |
1. Fiber optic connector is only for power test.
2. FC/APC or fiber collimator. (Personalizable) |
| Operating Mode |
|
ACC/APC |
*Note1 |
|
Electrical and Environmental Parameters
|

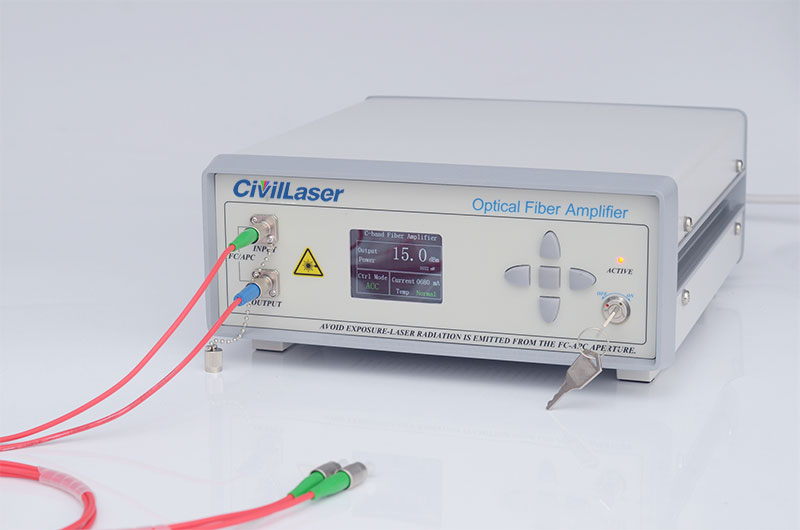

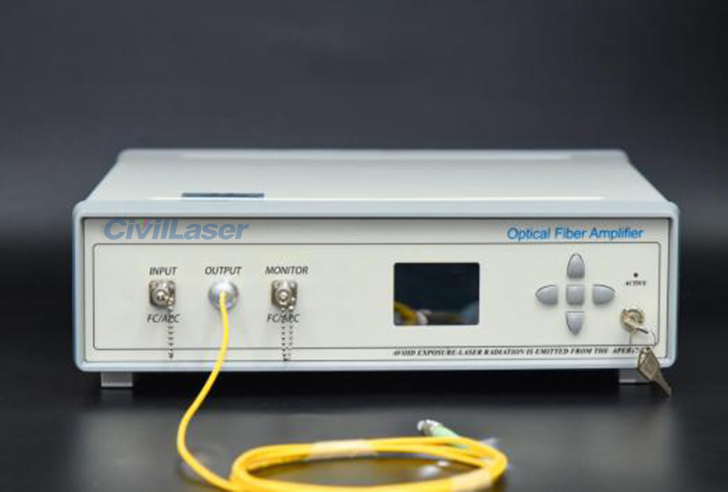

Desktop Type
(Current Product)
|

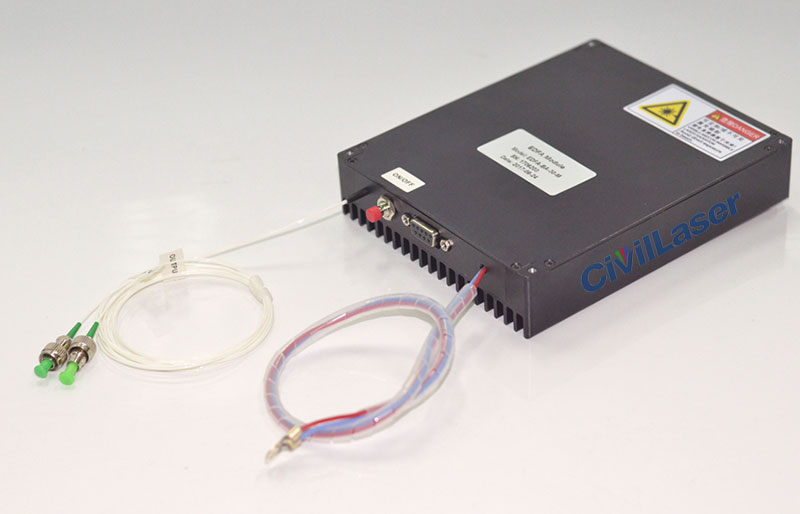

Module Type
|
|
Control Method
|
Button
|
RS232 serial communication
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power Supply
|
100~240V AC,<150W
|
12V DC, <60W
|
|
Size
|
360(W)×350(D)×120(H)mm
|
125(W)×150(D)×30(H)mm
|
|
Operating Temperature Range
|
-5~+55°C
|
|
Operating Humidity Range
|
0~70%
|
*Note1:
ACC mode - automatic current control: The EDFA pumping operating current is set by the user and automatically locked by the EDFA to achieve a constant pumping current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is suitable for all EDFA models.
APC mode - automatic power control: The signal light output power of the EDFA is set by the user, the PD automatically monitors and feeds back the output power, the EDFA control and the adaptive adjustment pump achieve the stability of the output signal. When the input optical power fluctuates, the APC mode minimizes the fluctuation of the output power and is suitable for power type and line type EDFA.
