1450nm 5mW Modo singular SLD Broadband Lighht Source Module Type

The SLD broadband light source adopts semiconductor super-radiation diode technology to output a broadband spectrum and at the same time has a higher output power. The working wavelength can be selected from O, S, C, L and other bands, which is suitable for applications such as optical fiber sensing. Can provide communication interface and host computer software to facilitate the monitoring of the state of the light source.

[Features]
Ultra-wide spectrum.
Low spectral ripple.
Flat spectrum.

[Applications]
Fiber optic sensing
Medical imaging
Optical fiber device testing

[Speicfictaion]

Parameter Unit Typical Value Remarks

Center Wavelength

nm

1450

850/1310/1400/1450/1470/1500/1550/1610/1650
 Personalizable

Output Power

mW

5

5/10mW customizable

Spectral Power Density

dBm/nm

≥-25



Spectral Ripple

dB

<0.2



Short-term Stability(15Minutes)

dB

≤ ±0.02



Long-term Stability(8Hours)

dB

≤ ±0.05



Degree of Polarization DOP

dB

≤ 0.2



Pigtail Fiber Type

 -

SMF-28e Singlemode fiber



Pigtail Connector

 -

FC/APC





Electrical and Environmental Parameters

Desktop Type

Module Type
(Current Product)

Control Method

Button

RS232 Serial communication

Communication Interface

DB9 Female
(Default not include)

DB9 Female

Power Supply

100~240V AC, <30W

5V DC, <15W

Size

260(W)×280(D)×120(H)mm

125(W)×150(D)×20(H)mm

Operating Temperature Range

-5~+55°C

Operating Humidity Range

0~70%

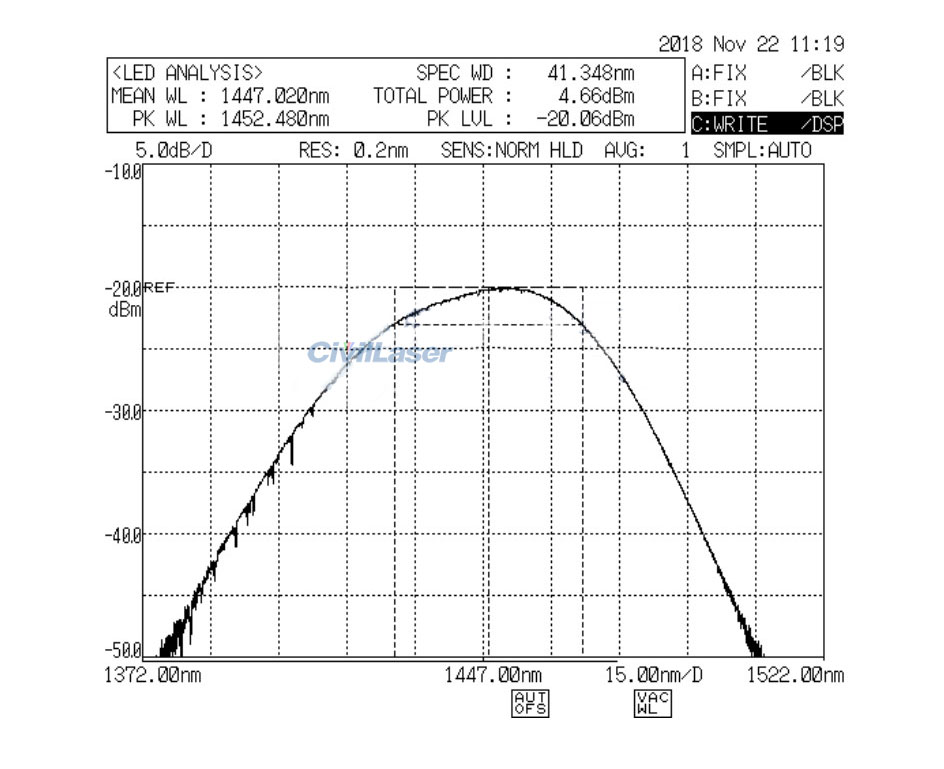

1450nm broadband light source

1450nm broadband light source
