QSI QL83H6SX 830nm 20mW Inrared Diodo láser TO18 5.6mm Package

QSI QL83H6SX 830nm 20mW Inrared Diodo láser TO18 5.6mm Package

[Features]
830nm infrared laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Medical
Industrial optical senor

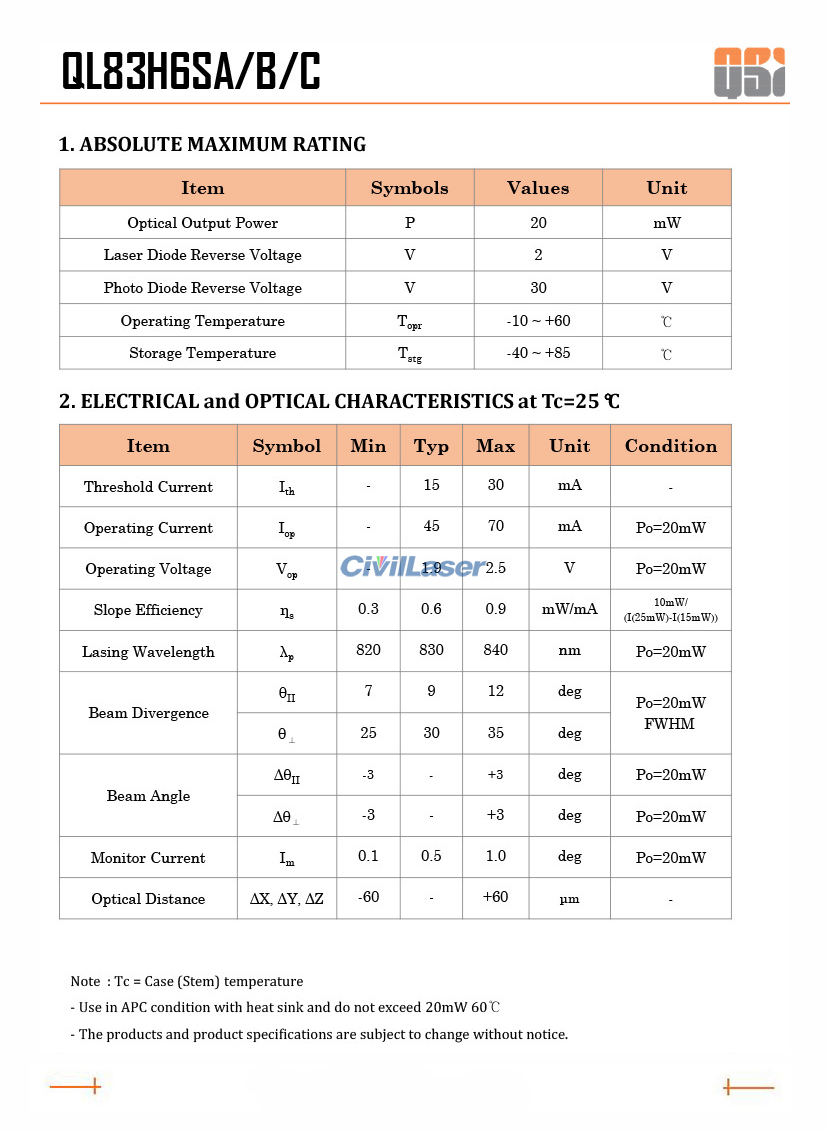

[Specification]
nombre del producto: Diodo láser
Model: QL83H6SX
Longitud de onda: 830nm
Potencia de salida: 20mW
Diodo láser Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Threshold Current: 15mA
Operating Current: 45mA
Tensión de funcionamiento: 1.9V
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃

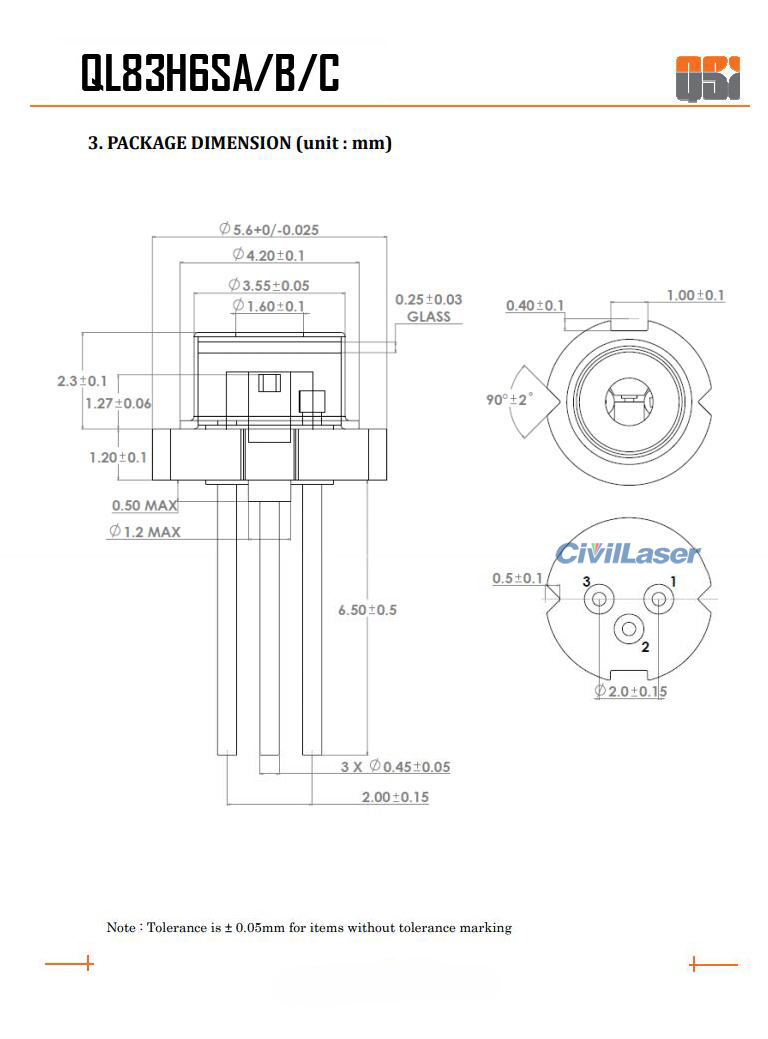

Package: TO18 (Φ5.6mm)
