Rojo Diodo láser QSI QL65F9SX 650nm 10mW LD 5.6mm Package

Rojo Diodo láser QSI QL65F9SX 650nm 10mW LD 5.6mm Package

[Features]
650nm red laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Particle senor
Industrial optical senor

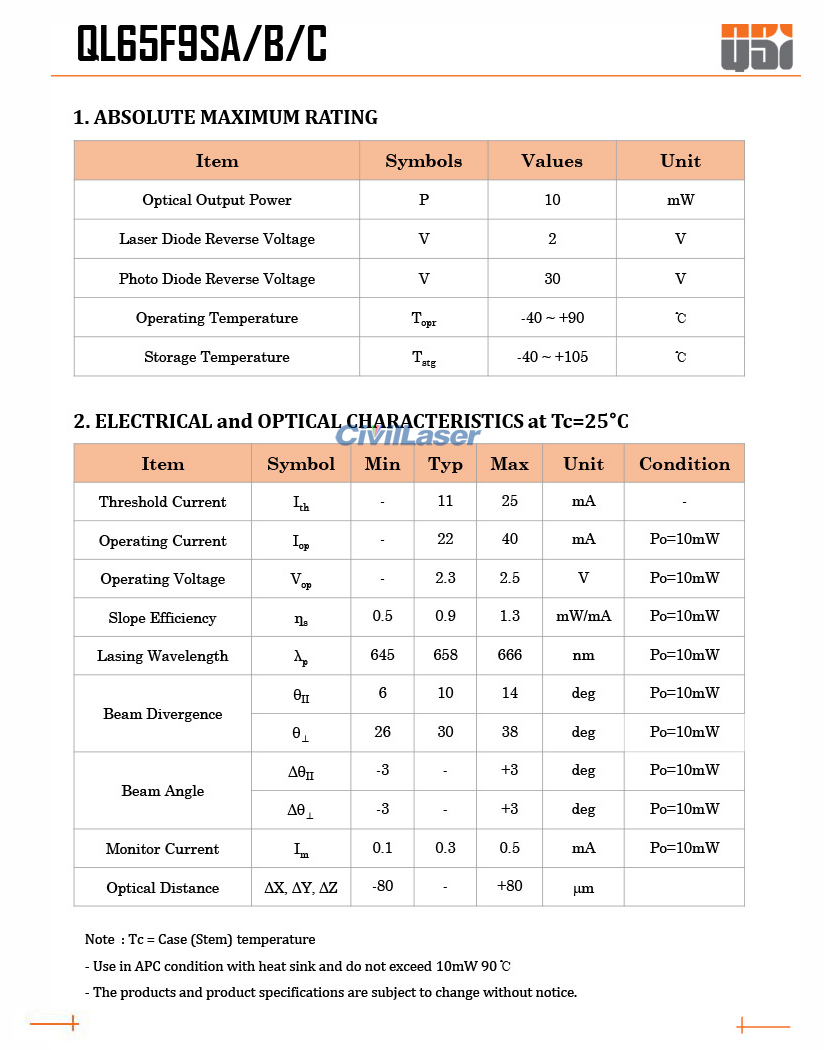

[Specification]
nombre del producto: Diodo láser
Model: QL65F9SX
Longitud de onda: 650nm
Potencia de salida: 10mW
Diodo láser Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Operating Current: 22mA
Operating Temperature: -40~90℃
Storage Temperature: -40~105℃

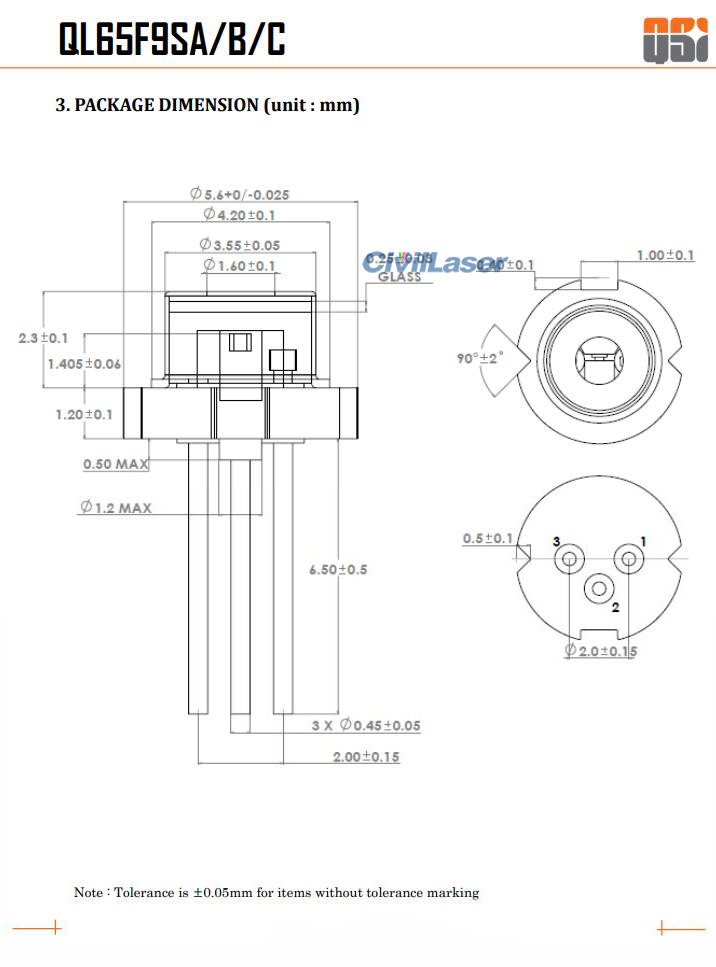

Package: TO18 (Φ5.6mm)
