QSI QL94R6SX-S LD 940nm 300mW Infrarrojo Diodo láser

QSI QL94R6SX-S LD 940nm 300mW Infrarrojo Diodo láser

[Features]
940nm infrared laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Laser senor
Industrial optical module

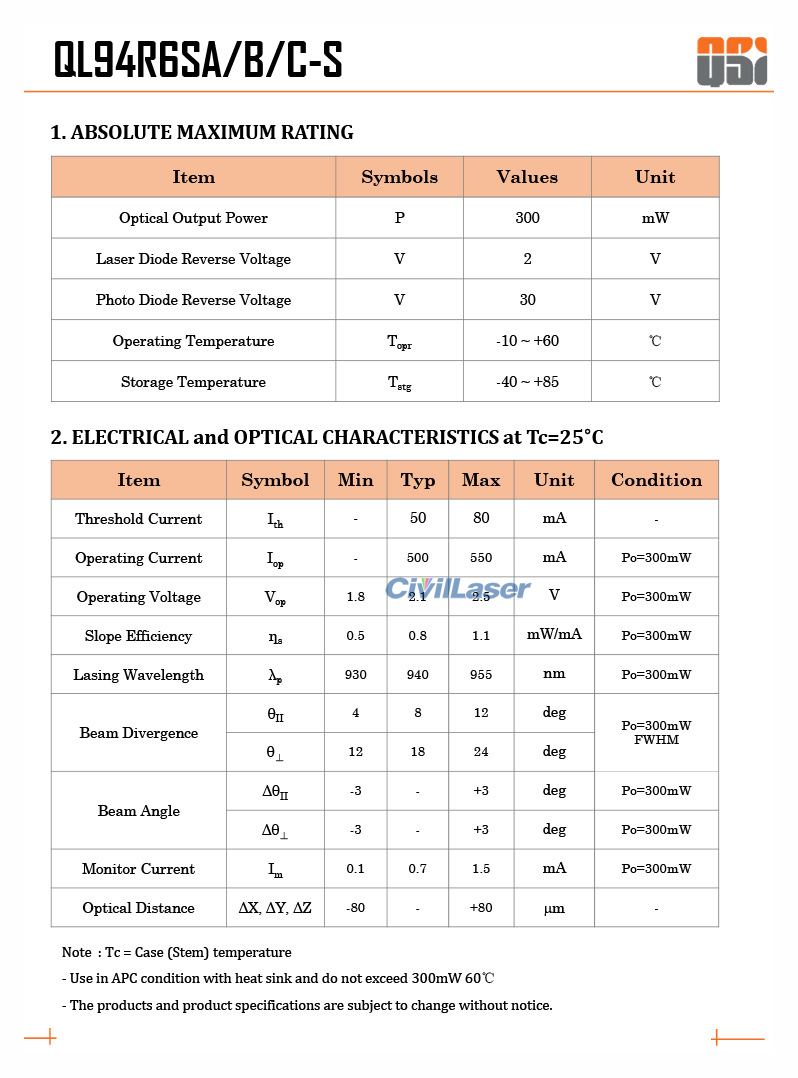

[Specification]
nombre del producto: Diodo láser
Model: QL94R6SX-S
Longitud de onda: 940nm
Potencia de salida: 300mW
Diodo láser Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Operating Current: 500mA
Operating Temperature: -10~60℃
Storage Temperature: -40~85℃

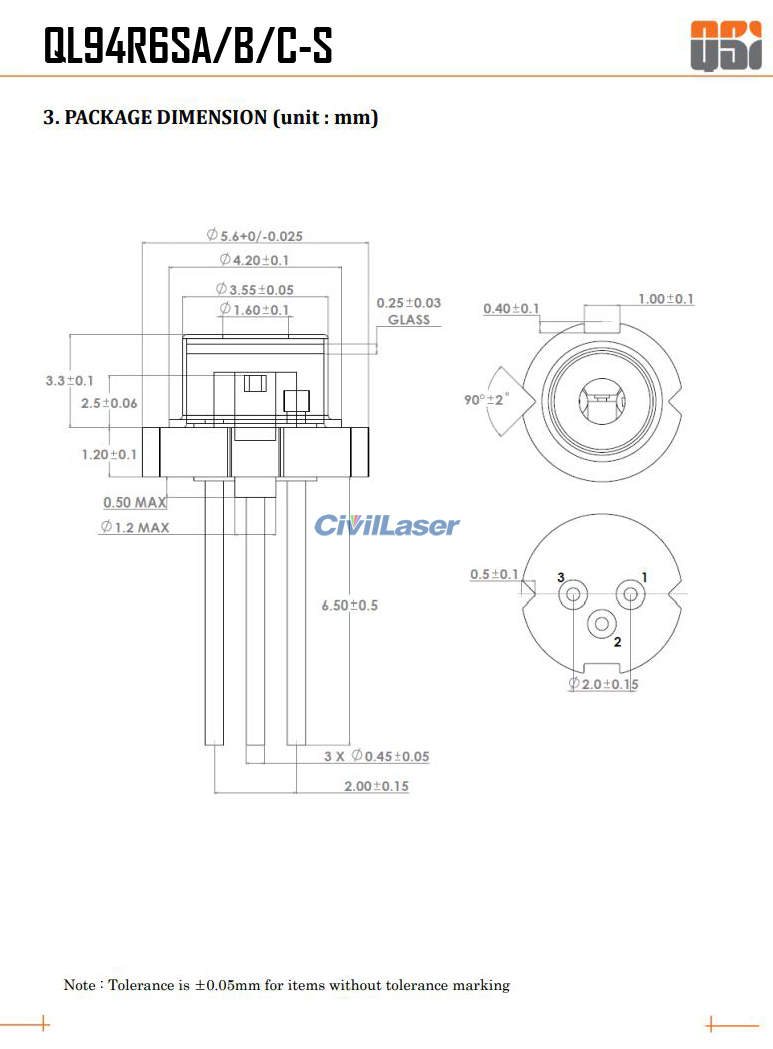

Package: TO18 (Φ5.6mm)
