QSI 940nm 400mW Infrarrojo Diodo láser QL94S6SX-L LD 5.6mm Package

QSI 940nm 400mW Infrarrojo Diodo láser QL94S6SX-L LD 5.6mm Package

[Features]
940nm infrared laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Laser senor
Industrial optical module

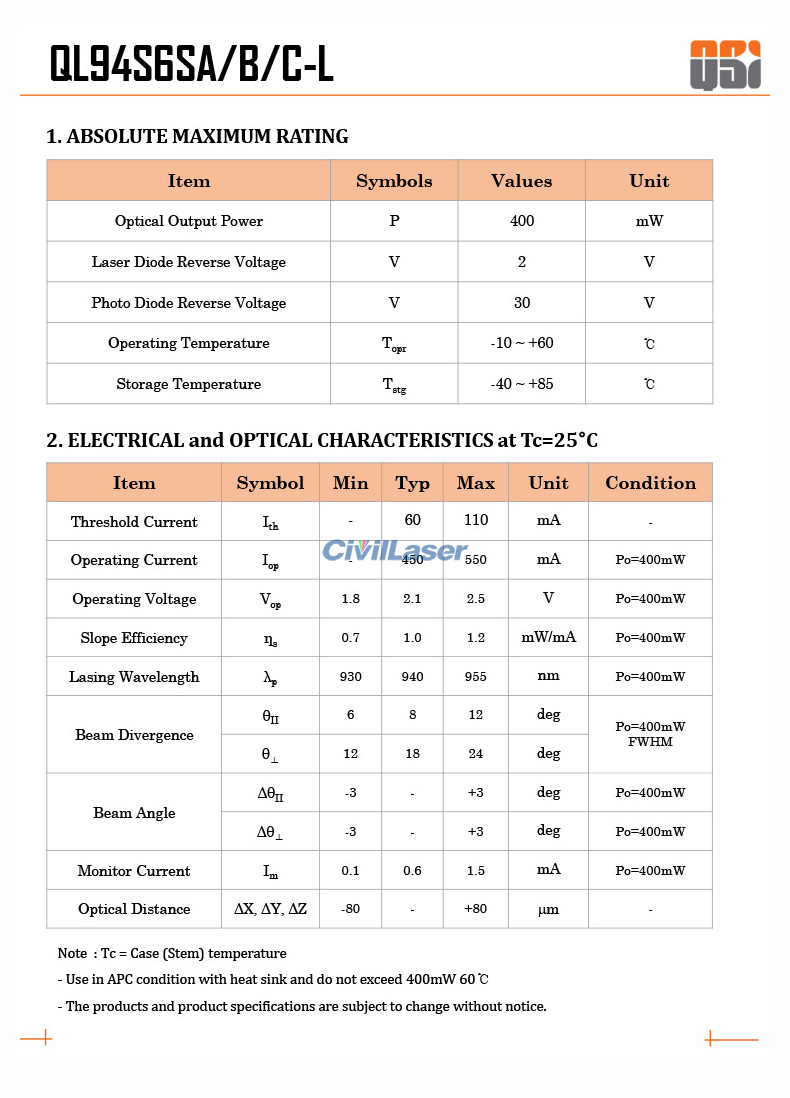

[Specification]
nombre del producto: Diodo láser
Model: QL94S6SX-L
Longitud de onda: 940nm
Potencia de salida: 400mW
Diodo láser Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Operating Current: 550mA
Operating Temperature: -10~60℃
Storage Temperature: -40~85℃

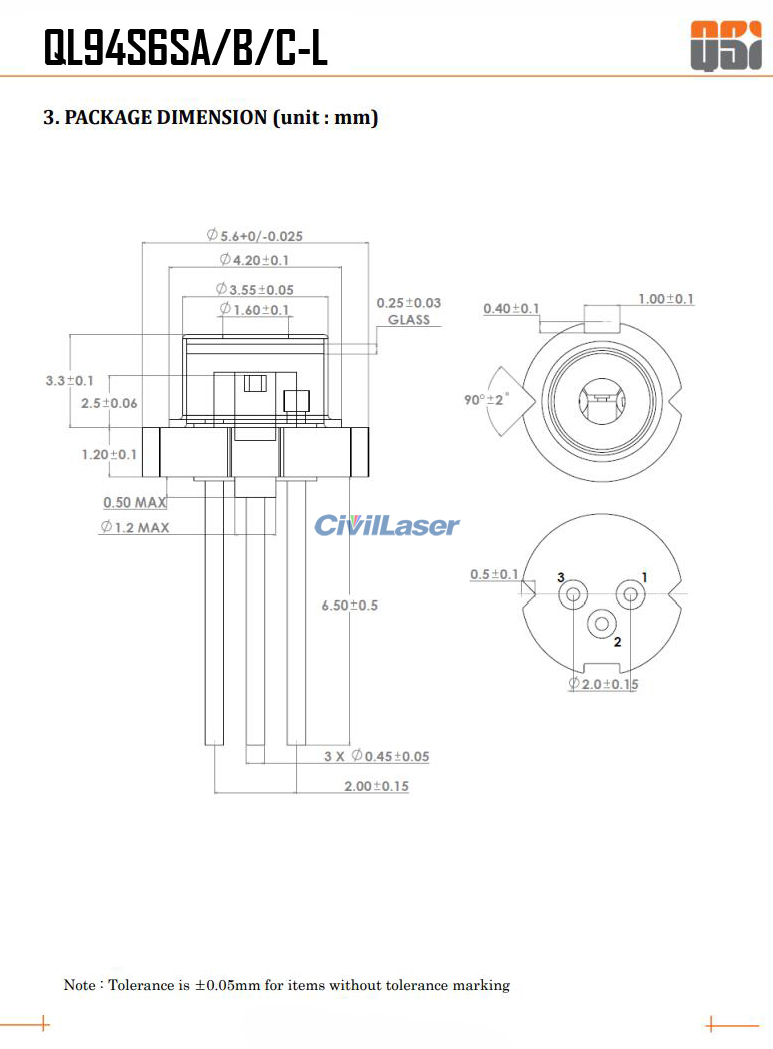

Package: TO18 (Φ5.6mm)
