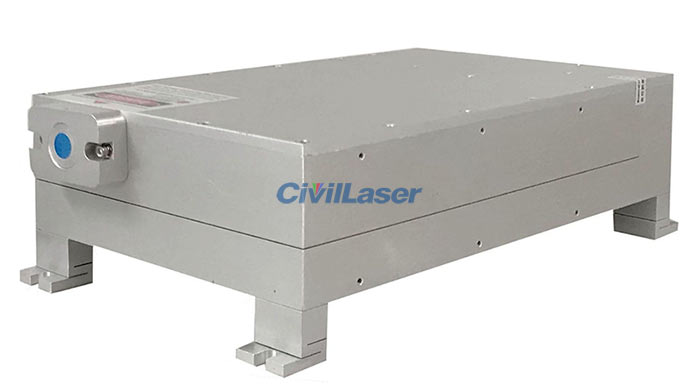

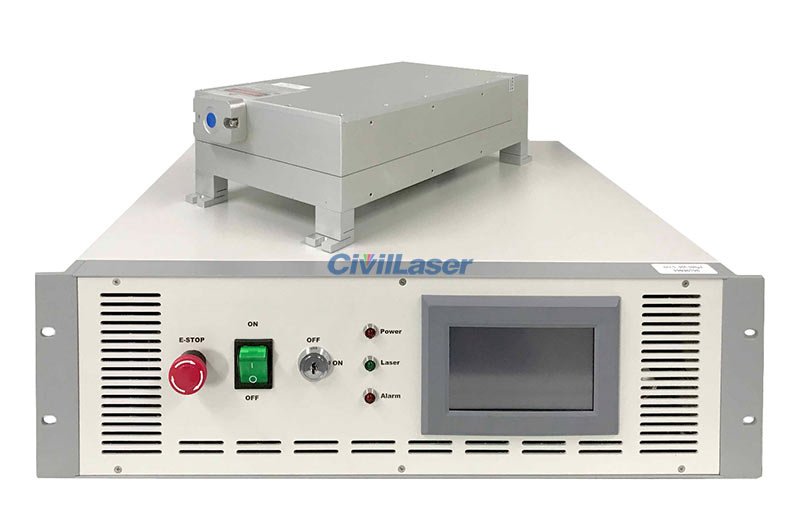

355nm 5W UV Q-Switched Laser Acousto-Optic Q-Switched Water Cooled Type

355nm 5W UV Q-Switched Laser Acousto-Optic Q-Switched Water Cooled Type

Q-Switched laser at 355nm has the features of high peak power, high repetition rate, and short pulse duration, which is used in scientific research, biology and so on.

[Especificaciones]
nombre del producto: 355nm UV Q-Switched Laser
Tiempo de espera: 3~4 weeks
Longitud de onda de salida: 355nm±1nm
Output Power (Average power): 1~5W  (5W@30KHz)
Operating Mode: Pulse laser / Acousto-Optic Q-Switched
Single Pulse Energy: 1~250uJ ( 250uJ@20KHz , 160uJ@30KHz, 100uJ@40KHz)

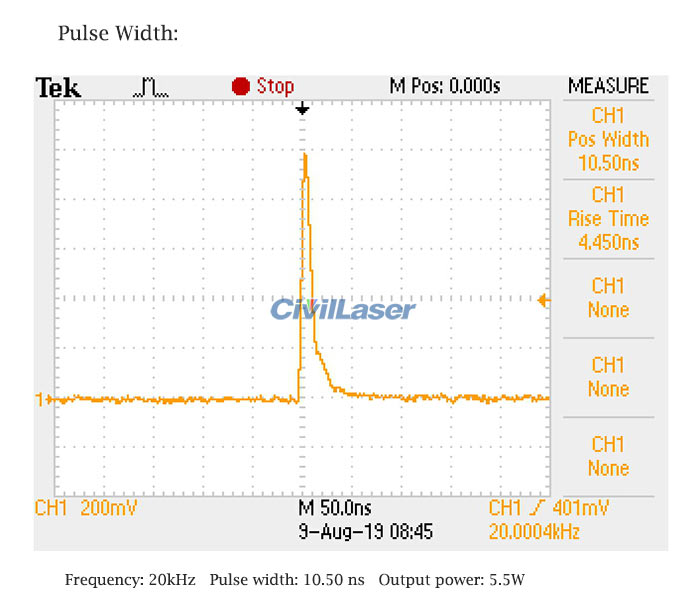

Pulse Width: Typically 15ns@30KHz
Rep. Rate(kHz): 10~100 KHz
Peak Power: 1~10KW (10KW@30kHz)
Ave Power Stability: <5%
Beam Divergence(full angle): <2  mrad
Beam Diameter at Aperture(1/e2): <1.3mm

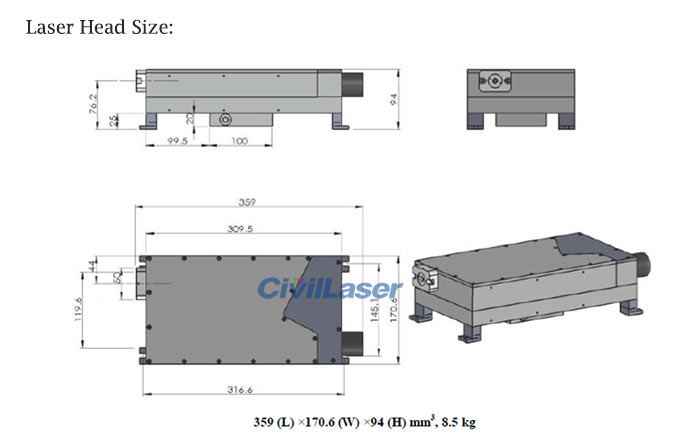

Beam Height from Base Plate: Near 76mm
Polarization Ratio and Direction: >100:1, Horizontal

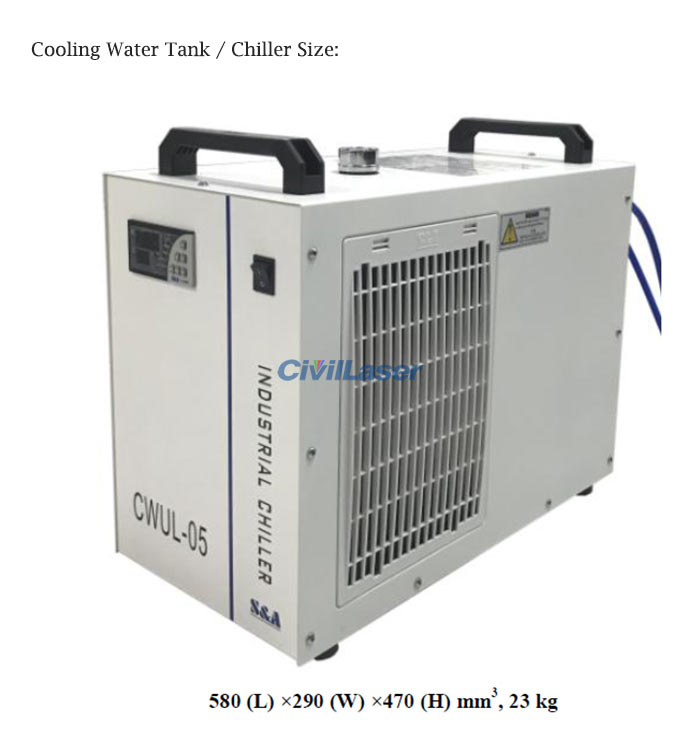

Cooled Method: Water Cooled
Tiempo de calentamiento: <10 minutes
Operating Temperature: 15~30℃
Tensión de funcionamiento: 110/220V AC
Garantía: 1 Year

355nm 5w UV laser -- Test Report.pdf

Note: Test report reference only, each laser parameters can be adjusted according to customer demand.

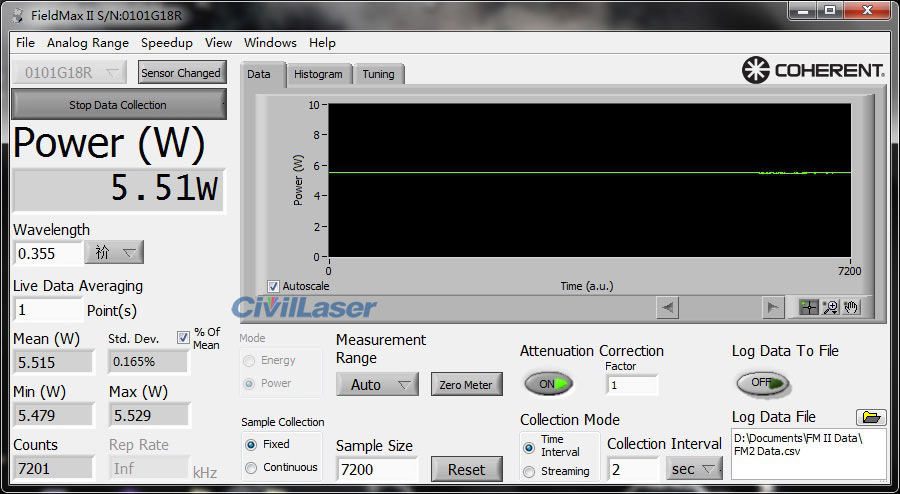

Detection of output power and power stability before the fiber:

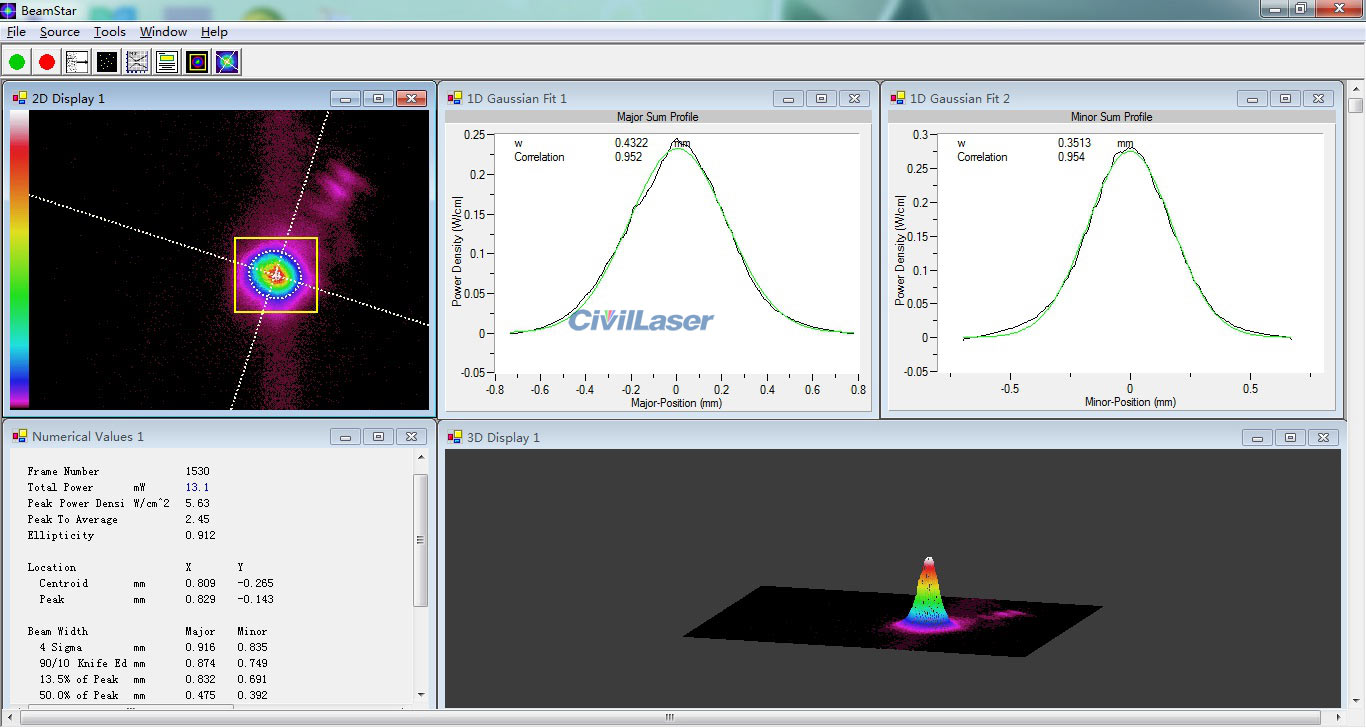

The beam profile is detected before the fiber:
