400nm~1700nm 1mm InGaAs PIN Photodiode TO46 Package

[Features]
High reliability, low dark current.
Active diameter 1mm.
400-1700nm wide wavelength range.
Hermetic package TO46 Can or with receptacle or with fiber coupling.

[Applications]
Optical sensor, Temperature sensing.
Covert IR sensing, Spectrography.
Medical and Chemical analysis.
Optical power meter, Space light detect equipment.
Light Detection , Industrial automatic control.
Science analysis and experiment.
Space light detect equipment.

Absolute maximum ratings:

Parameter Symbol Value Unit
Operating temperature Top -40~+85
Storage temperature Tstg -40~+100
Forward current If 10 mA
Reverse Voltage Vr 10 V
Soldering temperature(time) Ts(10s) 260


Electrical and optical characteristics:(T=25℃)

Parameter Symbol Unit Typical Value
Active diameter Φ mm 1
Spectral range λ nm 400-1700

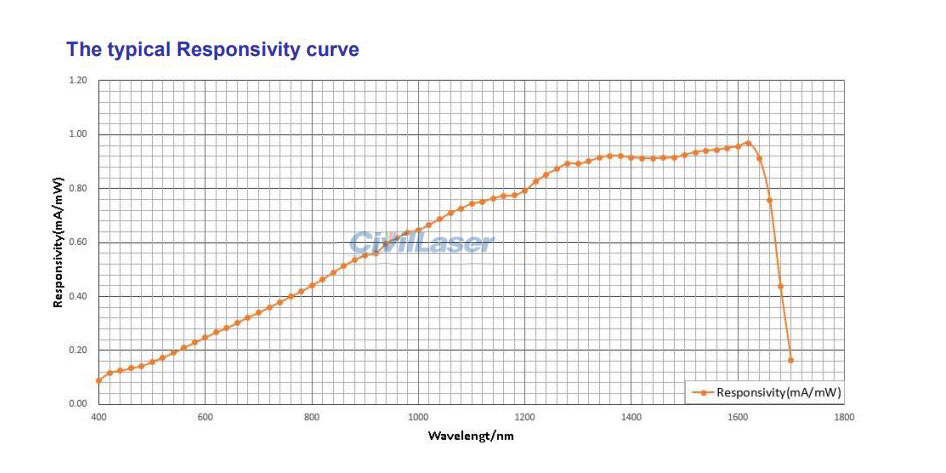

Responsivity Re (VR=0V, λ=405nm) mA/mW 0.12
Re (VR=0V, λ=650nm) mA/mW 0.35
Re (VR=0V, λ=850nm) mA/mW 0.48
Re (VR=0V, λ=1550nm) mA/mW 0.90
Response time Tr (RL=50Ω,VR=5V) ns 5
Dark current Id (VR=0V) nA 0.05
Id (VR=5V) nA 1
Reverse Breakdown voltage VBR (IR=10μA) V 30
Junction capacitance Cj (f=1MHz, VR=0V) pF 110
Cj (f=1MHz, VR=5V) pF 35
Saturated Optical Power Ps(VR=5V) mW 10
Operating voltage VR V 0-5
Shunt resistance Rsh (VR=10mV) 200

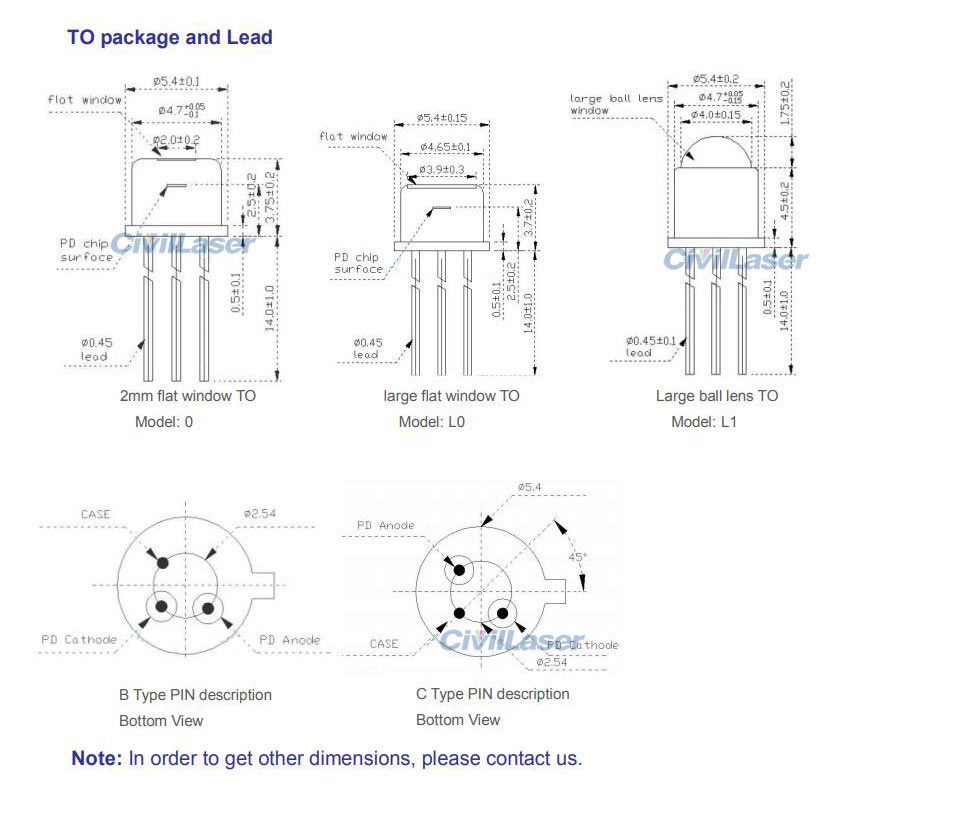

Package Hermetic package TO46 Can or with receptacle or with fiber coupling.


Nota:

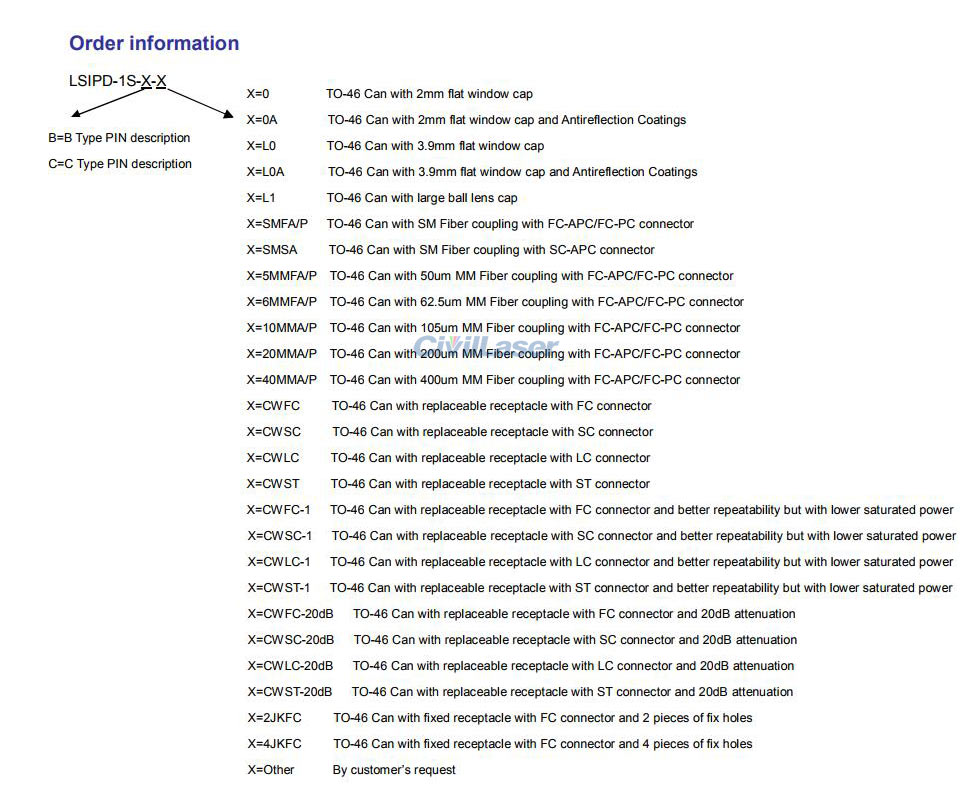

(1) The default is TO-46 Can package, please contact us if you need other intrefaces.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
